Down spout /Gutter RFM Series

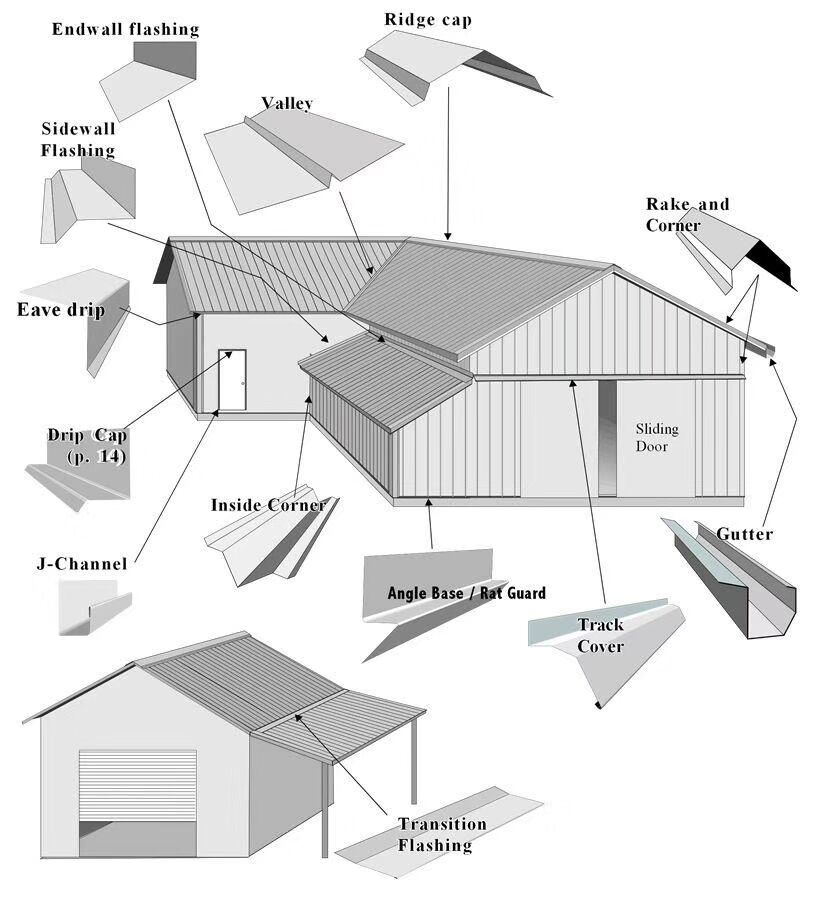

PEB is a very complex system, which consists of a large number of different components, each of which is very important. And what we do is we help our customers and give solution.
Description
We provide Roll forming machine/CNC shearing & bending machine/Cut to length/slitting/press and so on to make full PEB system.
And we provide different design or by client provide drawing to make.
Product Detail

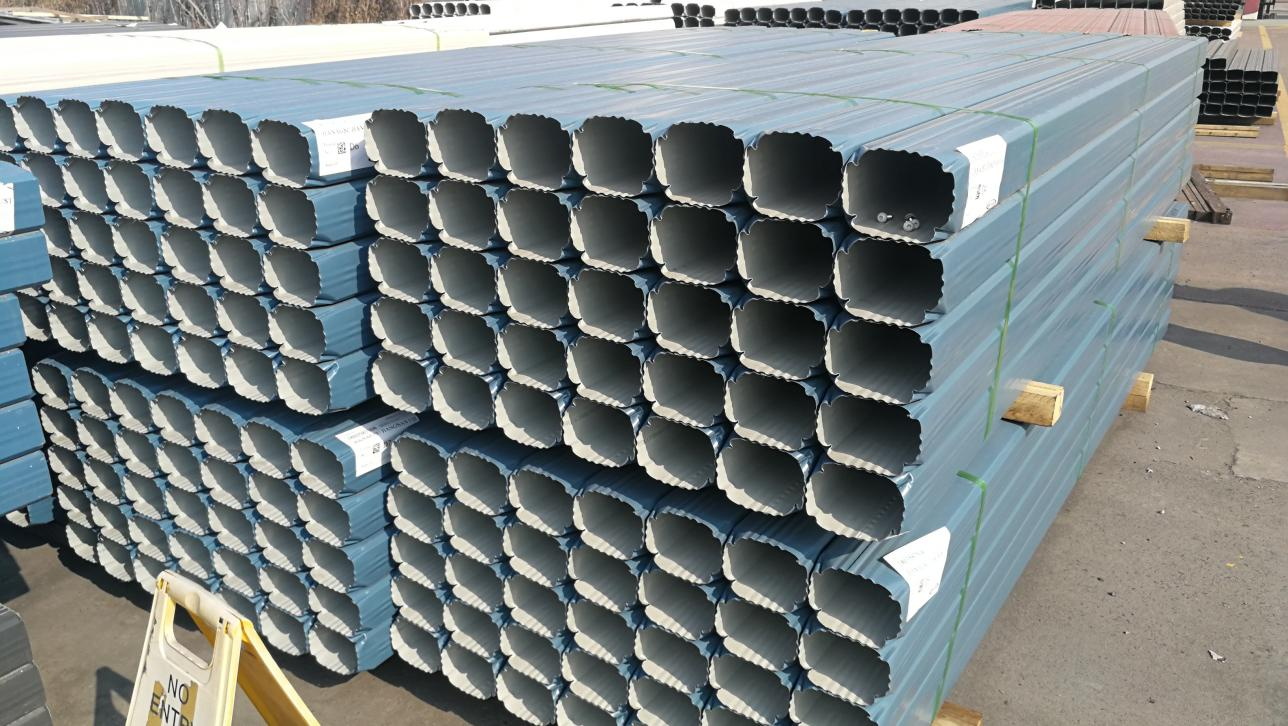

PEB is a very complex system, which consists of a large number of different components, each of which is very important. And what we do is we help our customers and give solution.Down spout and gutter is one of very component in PEB project, it have many different design, like square, rectangle, round, semicircle, and so on. It can forming PPGI/GI/PPGL/Alu and so on.
Saibo science and technology can give many different design, and very important is that we can give customer by their request. As standard design is one machine make one profile, but to consider customer cost, we can give cassette design, means one machine can make different profiles.
Main technology
Single head or double head uncoiler with coil car
Full automatic set request length and quantity
By cassette design one machine can make different profiles

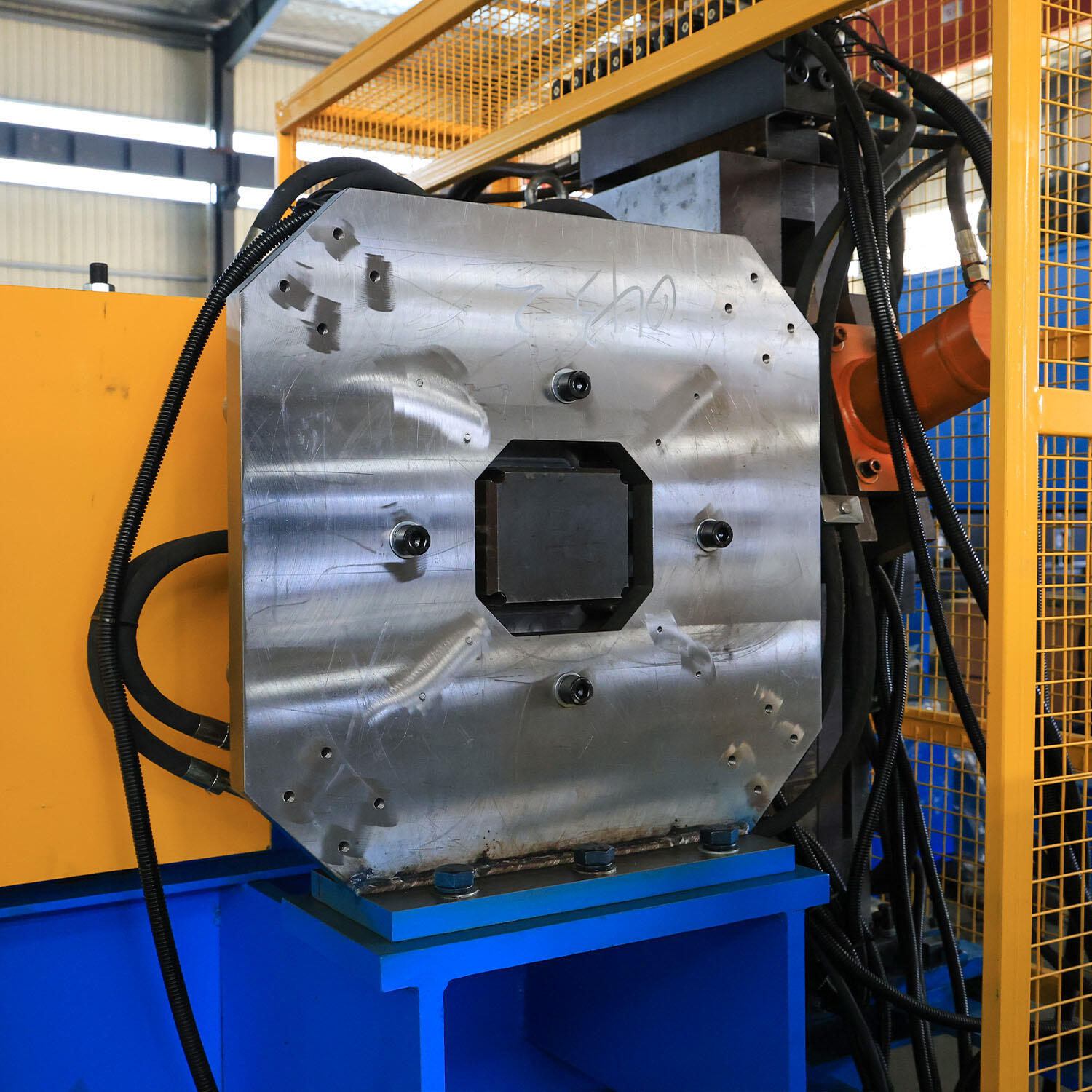

Hydraulic no scrap cutting
Full automatic stacking and packing
Main spec. of line:
Full line power: about 10-30W
Forming speed:0-30m/min
Forming station: about from 15-25tations
Drive by gear box or chain
Full line weight: about 6-10Tons
Roller material: GCR15
Cutting die material: D2
Motor: Siemens
Servo and control system:Mitsubishi/Siemens/Panasonic......
Different design Layout for reference:

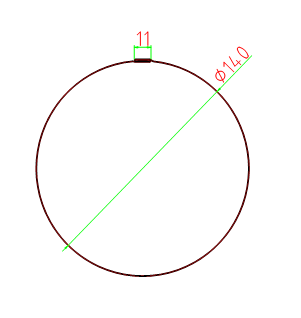

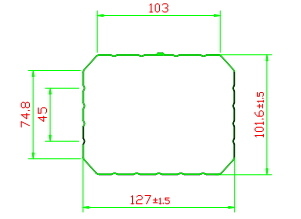

Profile for reference:
