Metal decking RFM

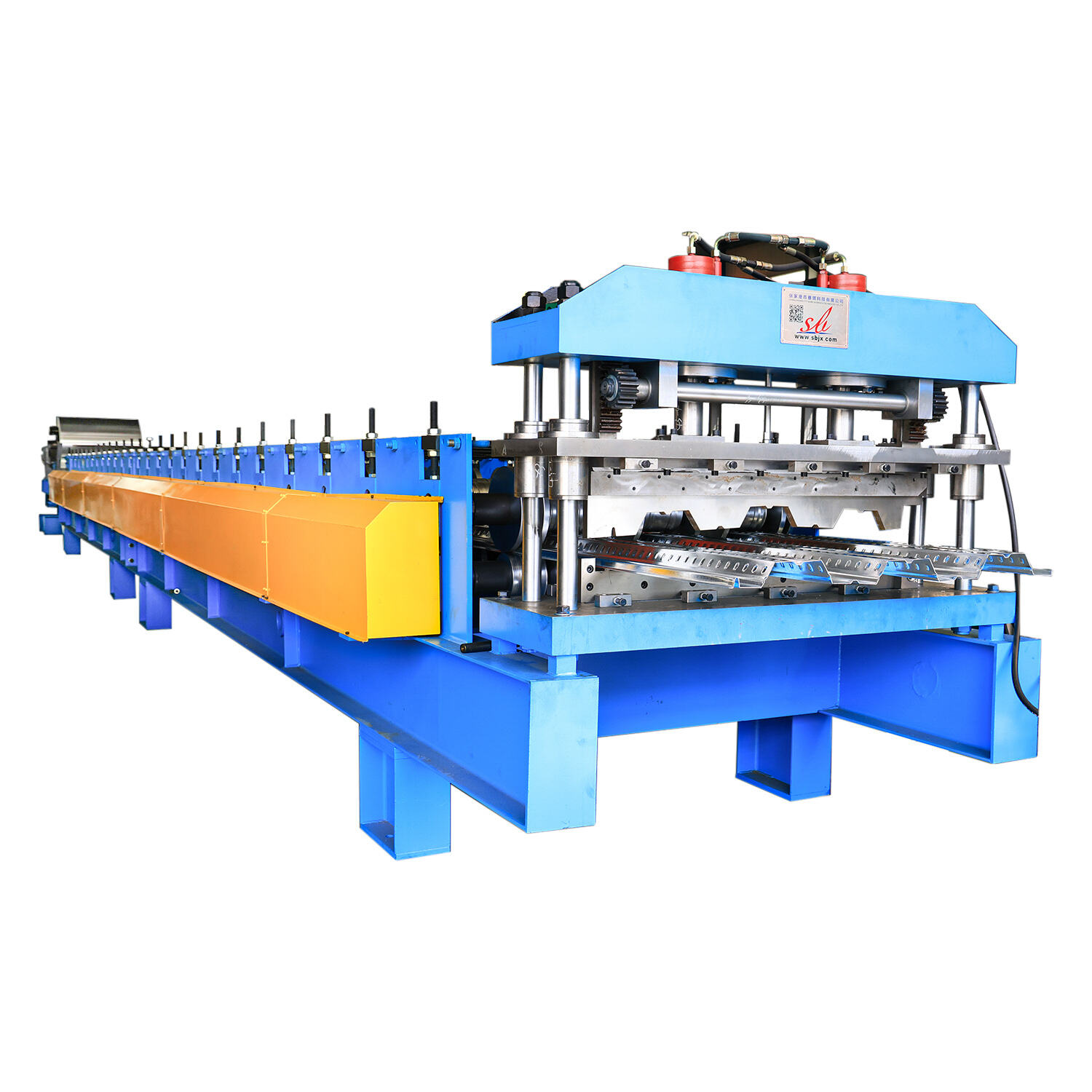

Saibo Science &Technology Machinery’s high efficiency deck roll forming lines produce roof, composite, and floor metal decks.The roll forming line can also be designed to create multiple profiles (metal deck panel, liner panel and roof/wall panel) which are roll formed and stacked in the same operation.
Description

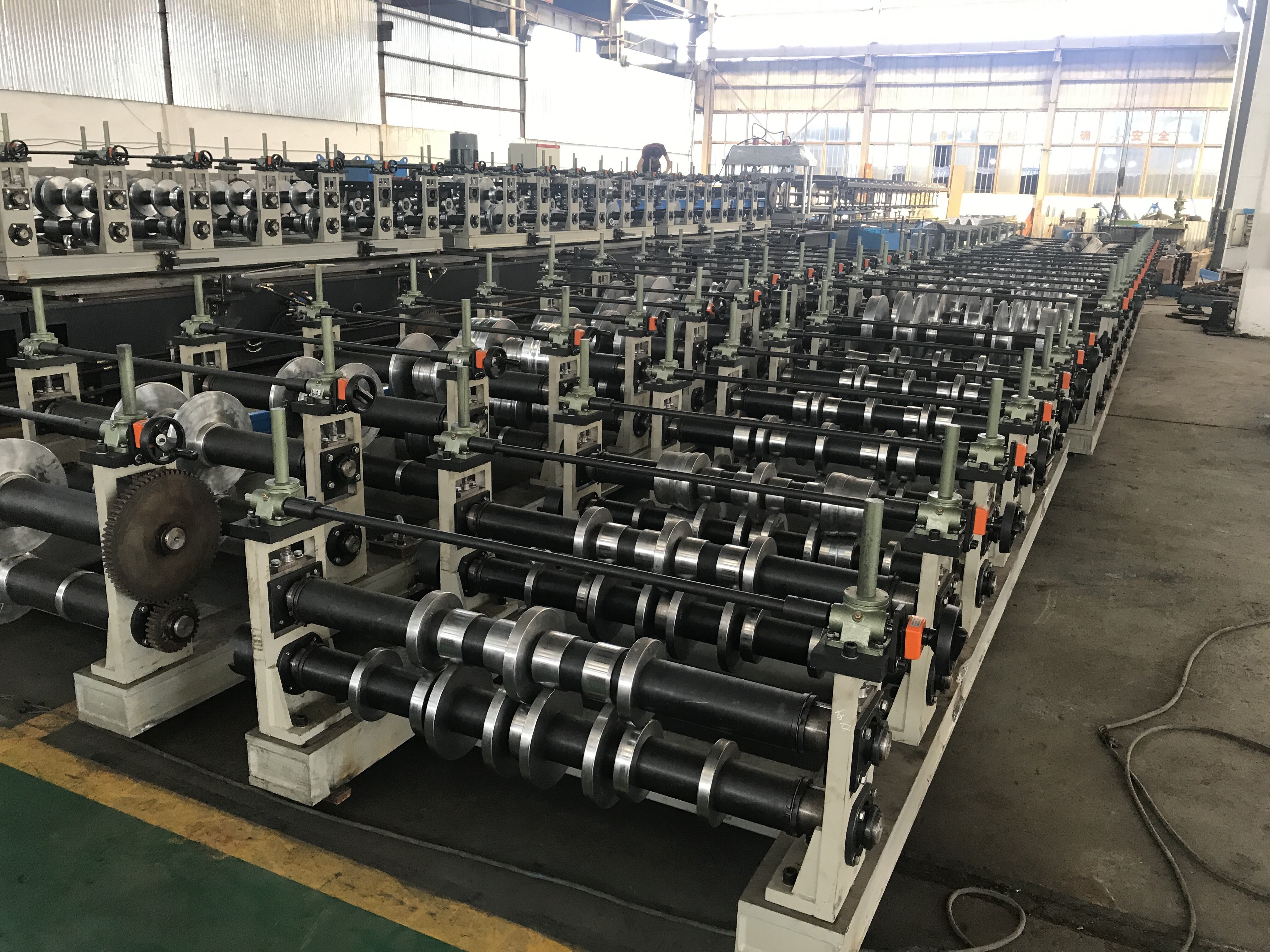

High-efficiency roll forming deck and panel line
Rafted mills allow the changeover of roll tooling to be quicker, making the changing between products much faster. This design also reduces the production downtime of the line by reducing the set-ups required.
The flying cutting is designed to work in a continuous operation which increases the final line throughput.
Closed Loop Cut-Off length Control allows the roll former to achieve up to small tolerances.

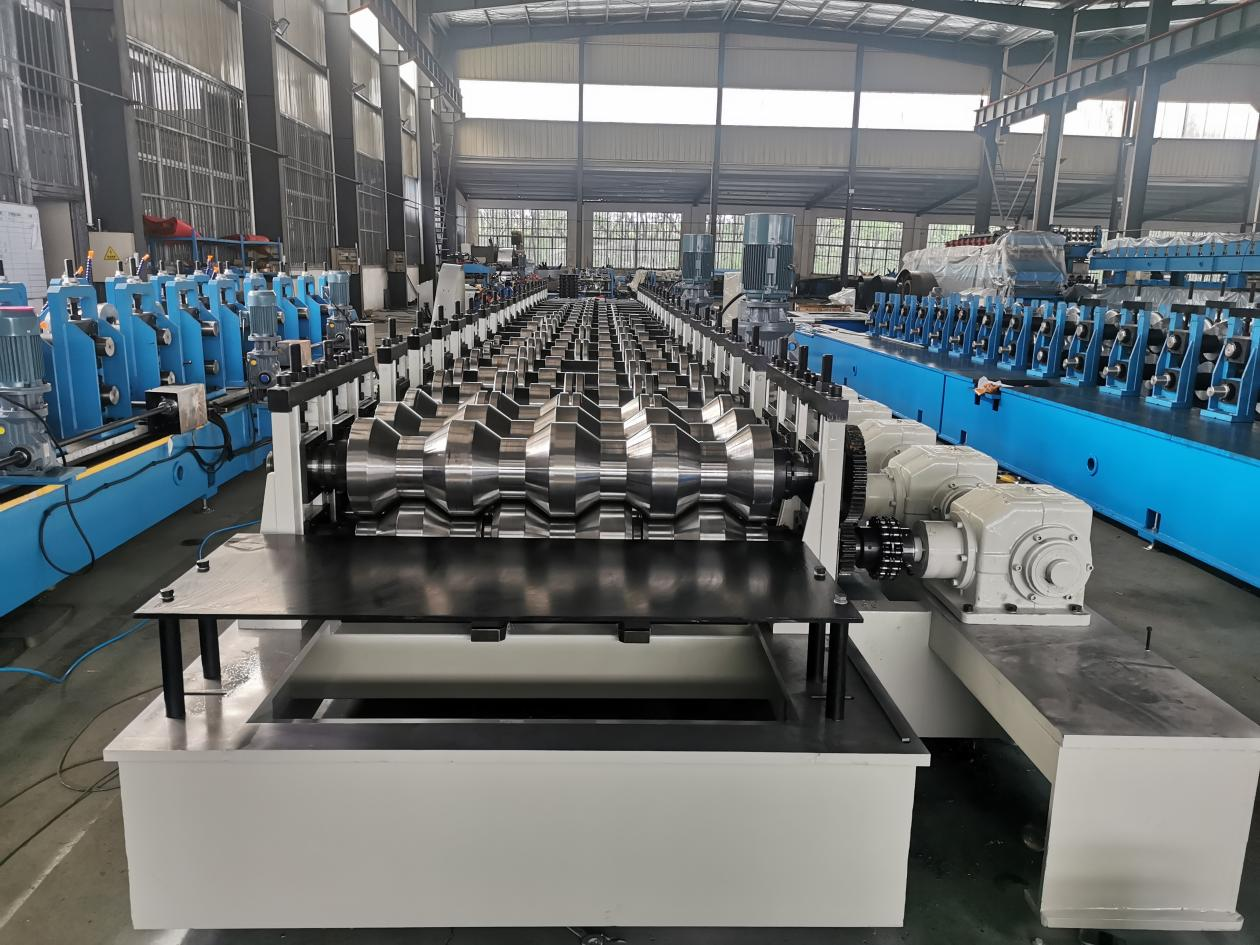

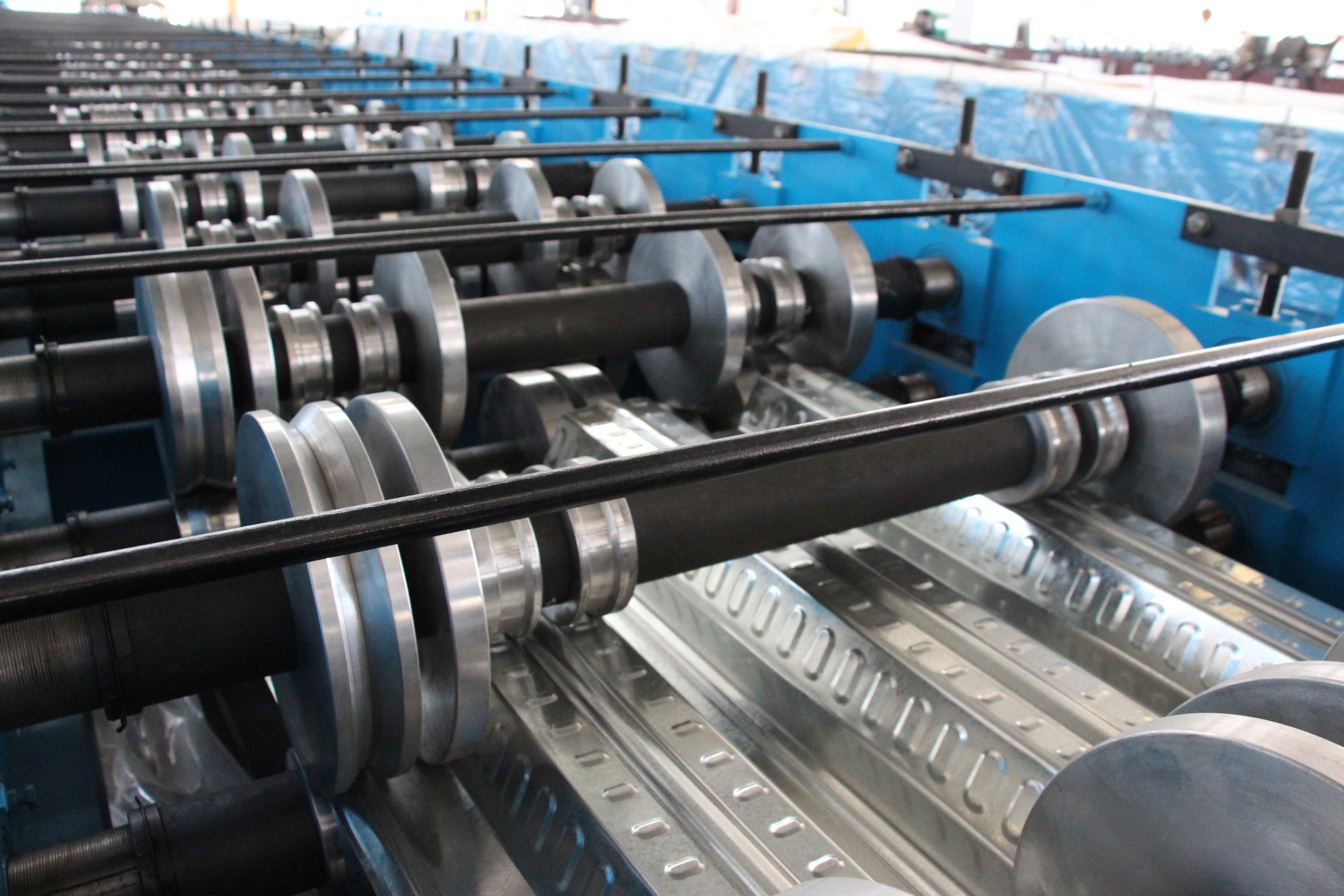

The roll former is robustly designed to have a minimum shaft deflection improving the quality of the end product.
We provide different metal decking profiles as customer request
Video
Product Details
Metal deck is one of very component in PEB project, it have many different design, like YX35,YX44,YX53,YX75,YX114,YX135,YX153 (here number means the height of profile)and so on. The thickness range is from 0.6mm-2.0mm. Normal design is one machine one profile, but we can give one machine make different design, just need change the full forming section, we called its “cassette design”.

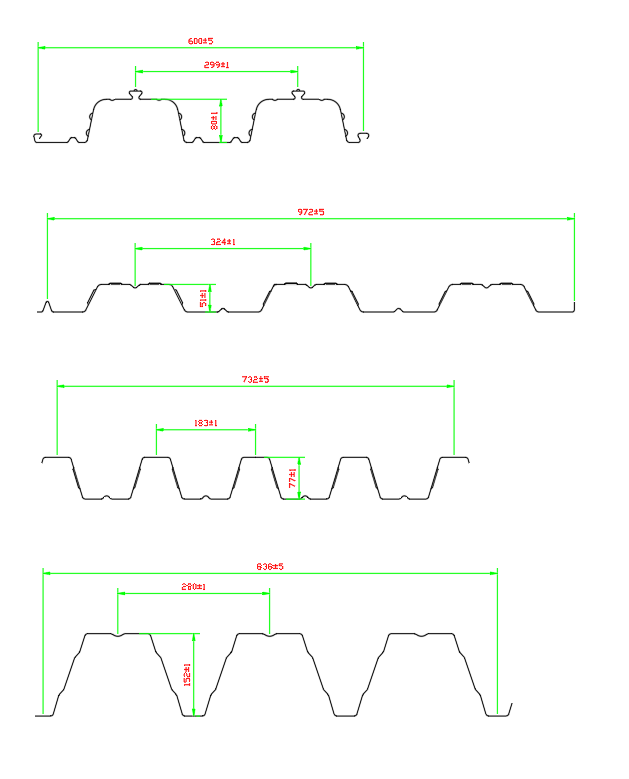

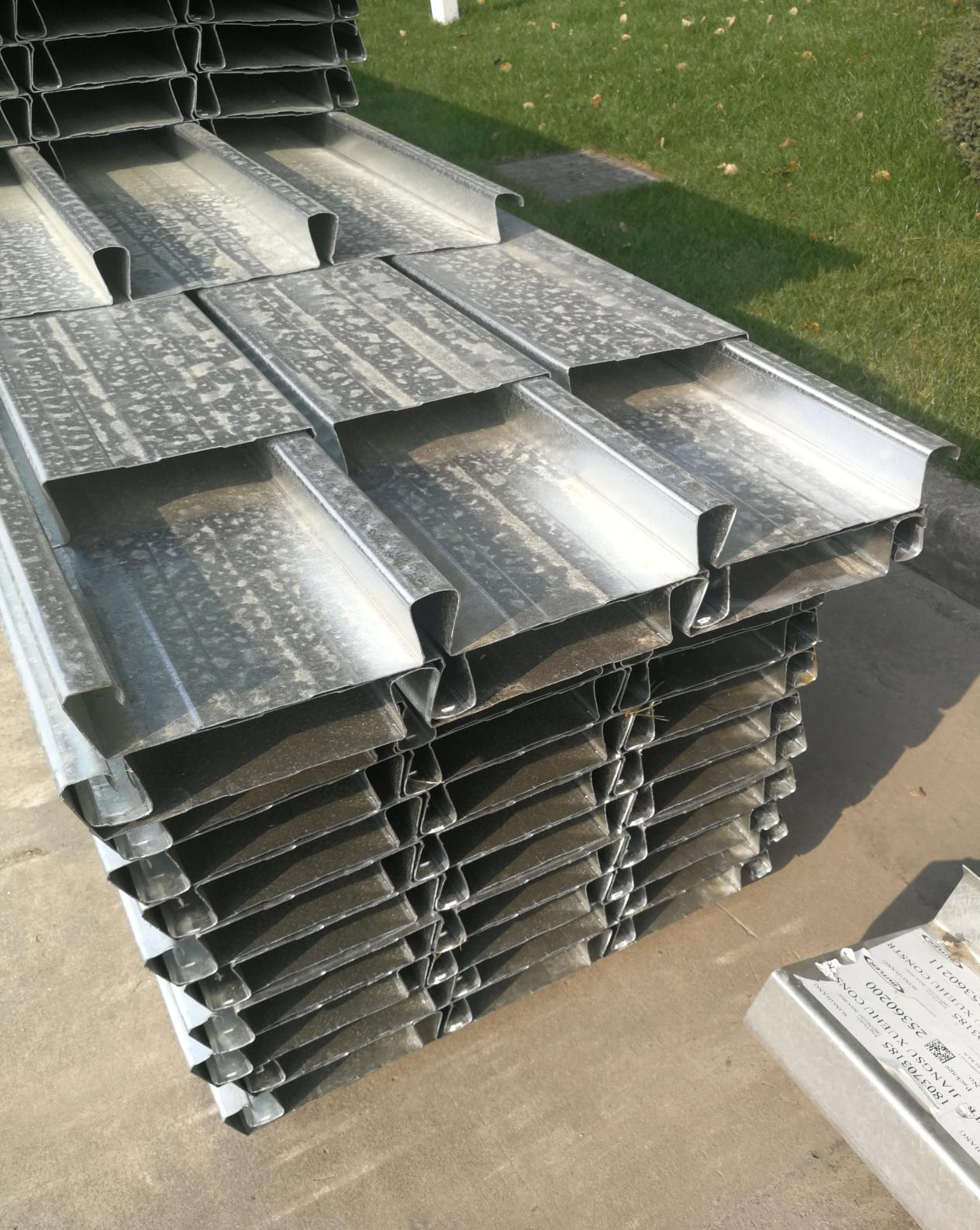

Profiles for reference:
Main technology
Heavy duty uncoiler with coil car
Full automatic set request length and quantity
By cassette design one machine can make different profiles

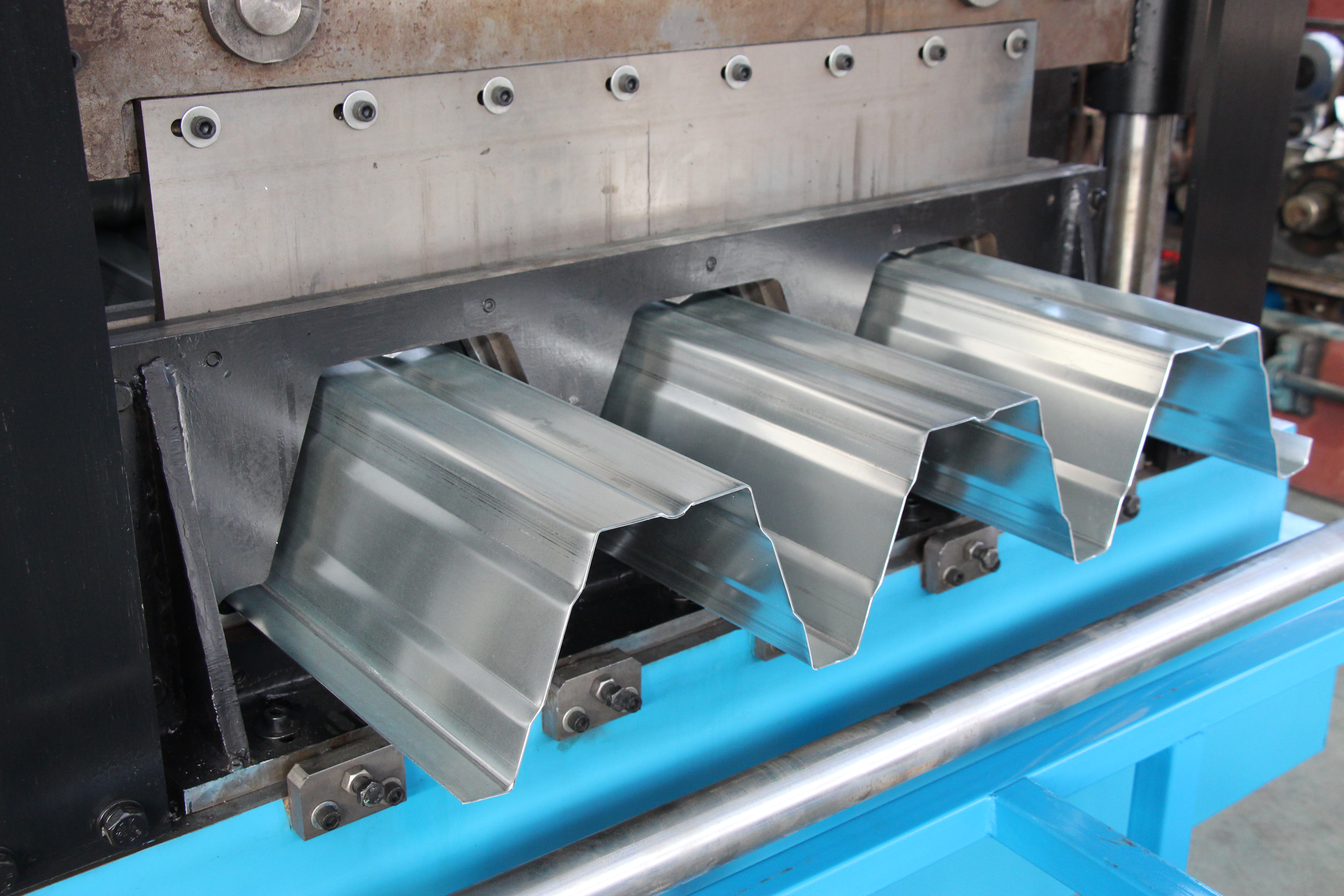

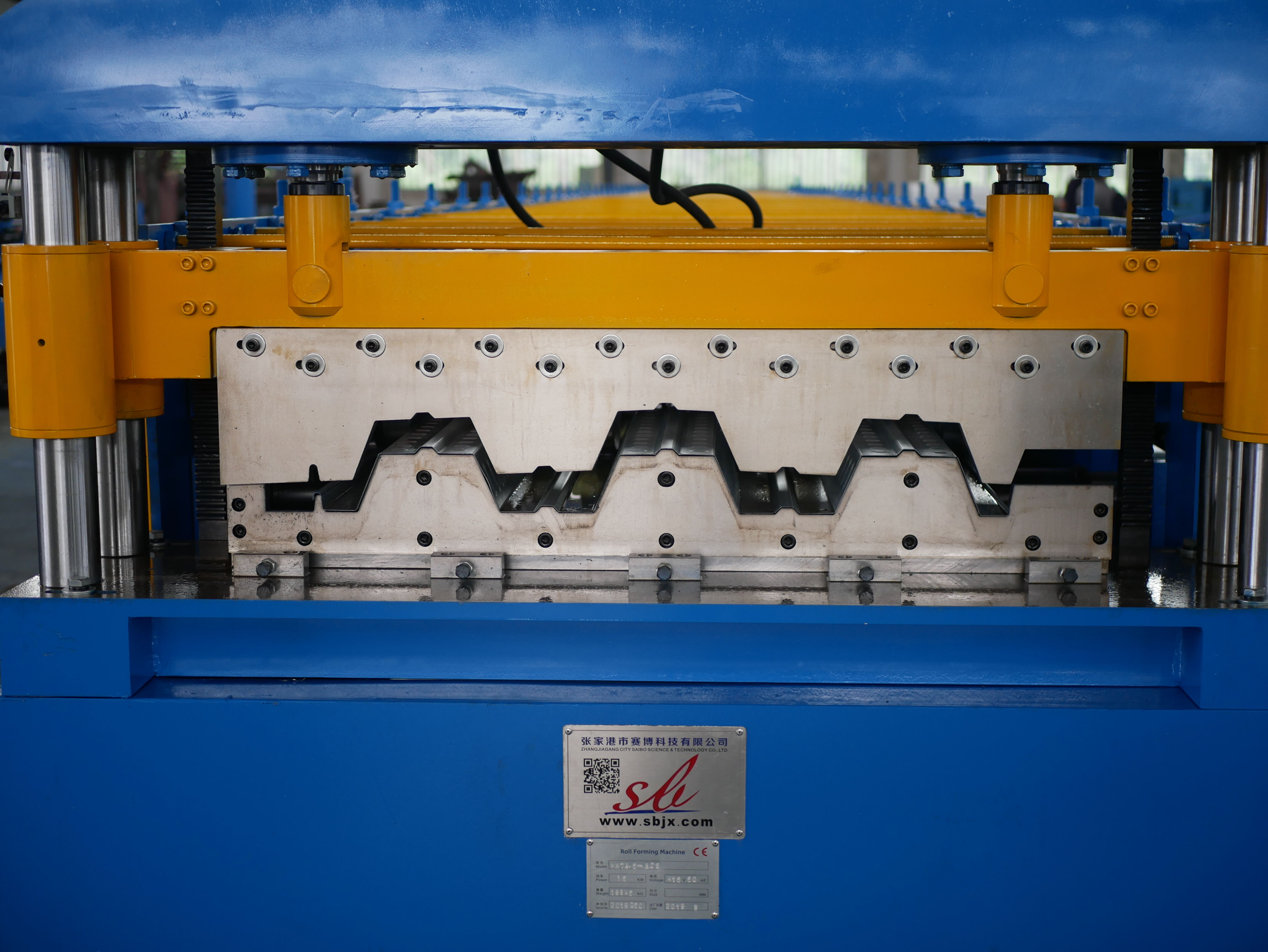

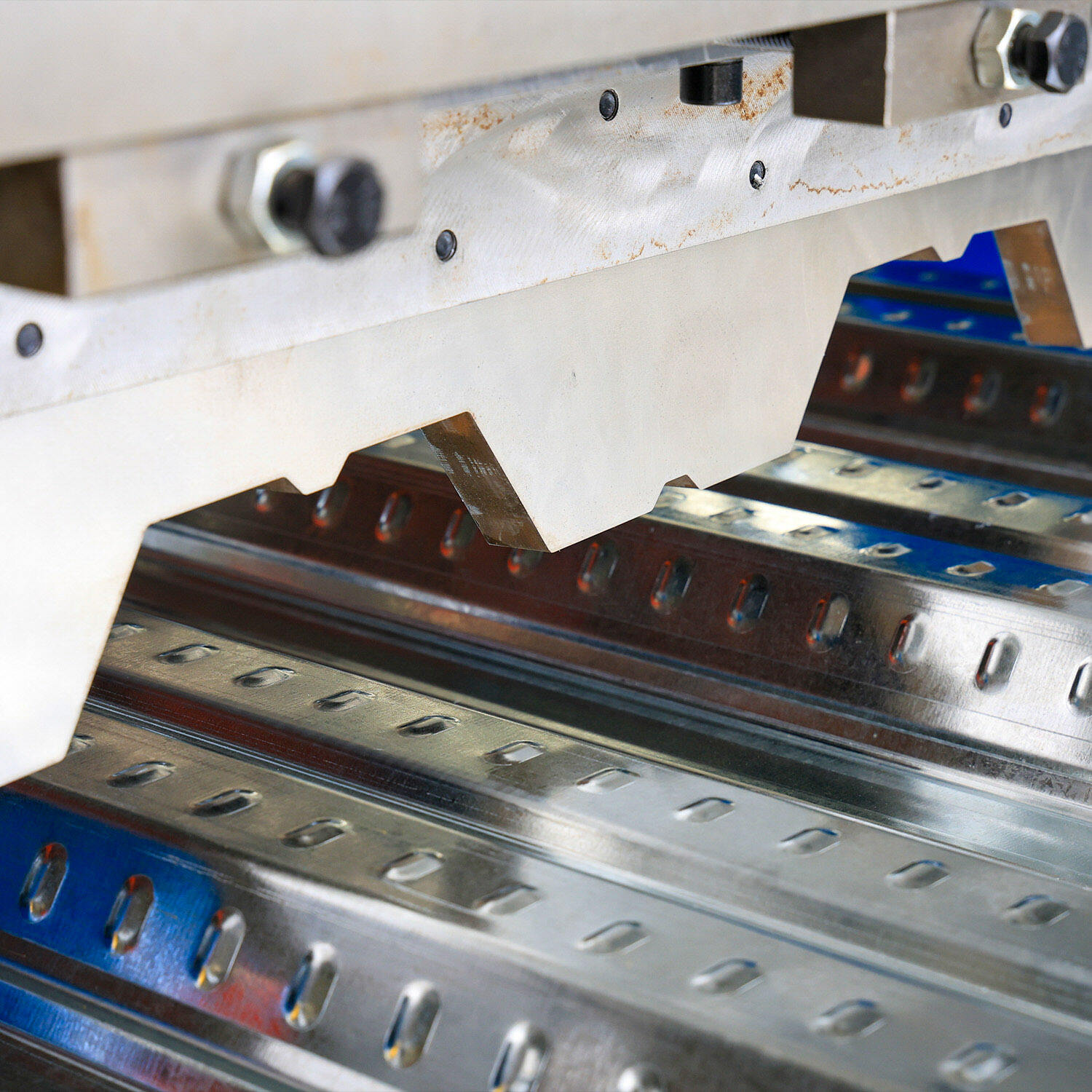

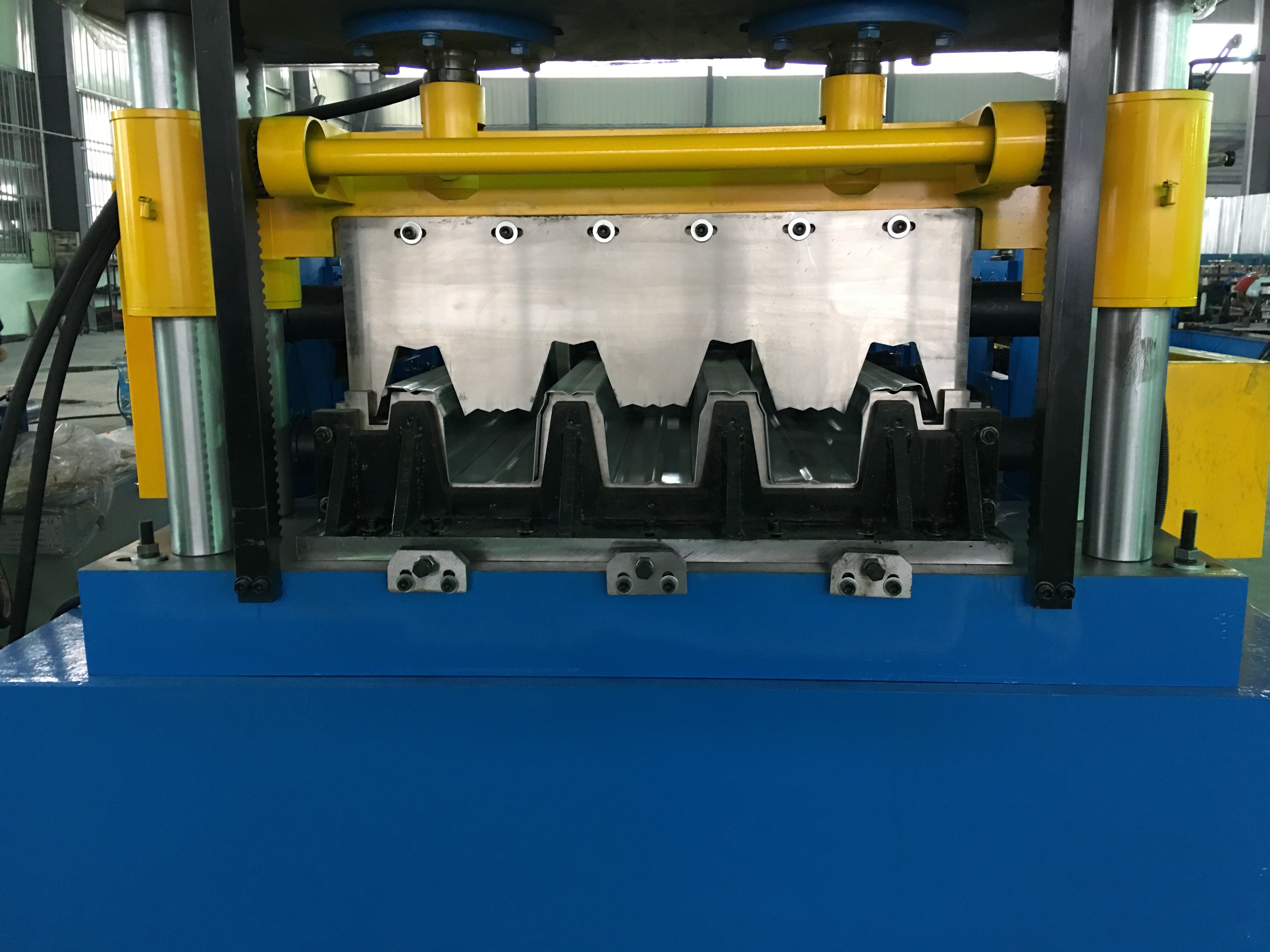

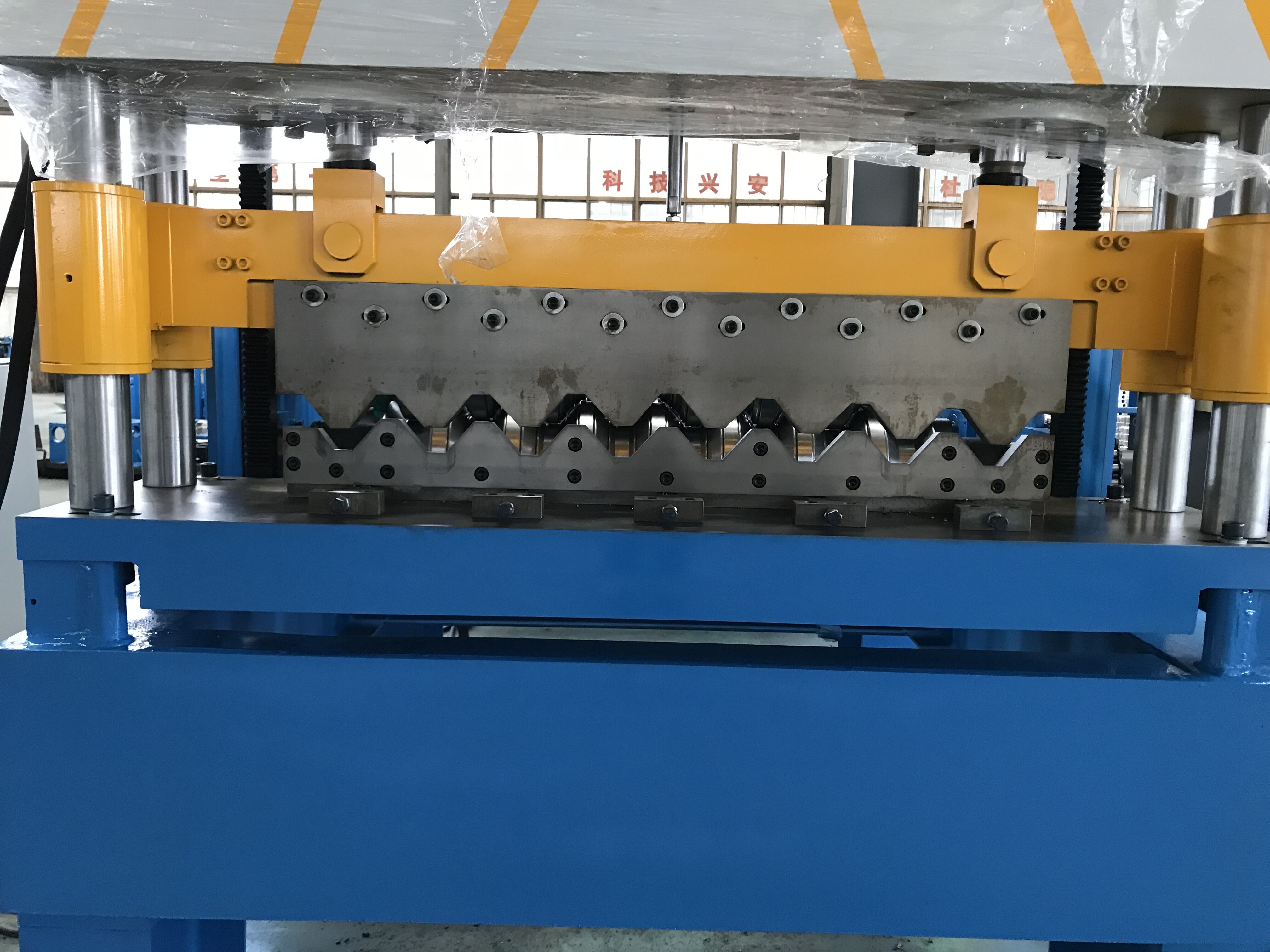

Hydraulic no scrap cutting
Full automatic stacking and packing
Main spec. of line:
Full line power: about 30-60KW
Forming speed:0-50m/min
Forming station: about from 28-45 stations
Drive by gear box or chain
Full line weight: about 20-40Tons
Roller material: GCR15
Punching die and cutting die material: D2
Motor: Siemens
Servo and control system:Mitsubishi/Siemens/Panasonic......
Layout for reference:
