Polycrystalline Silicon Frame RFM

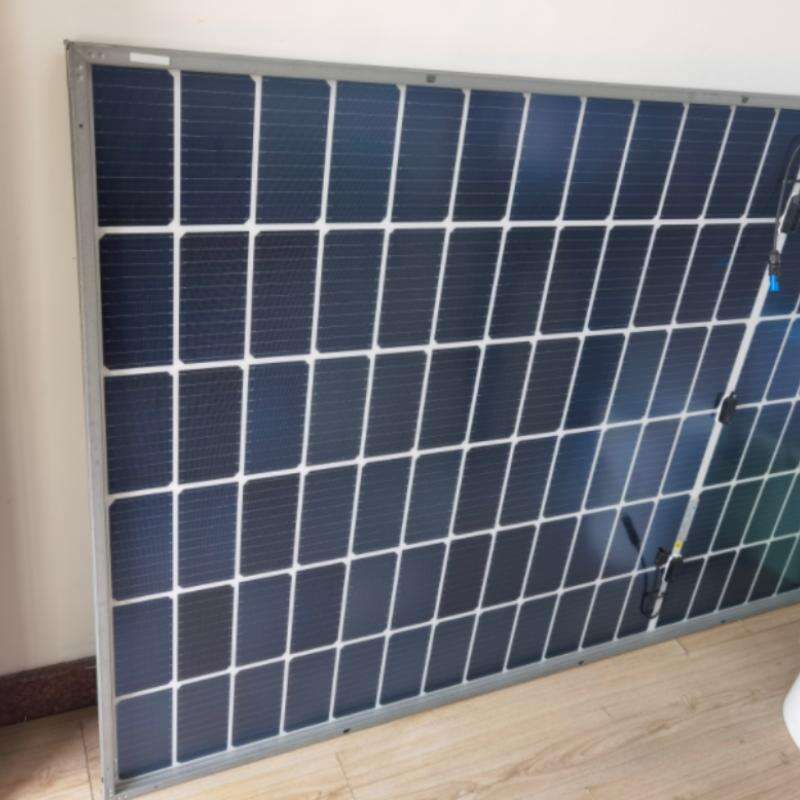

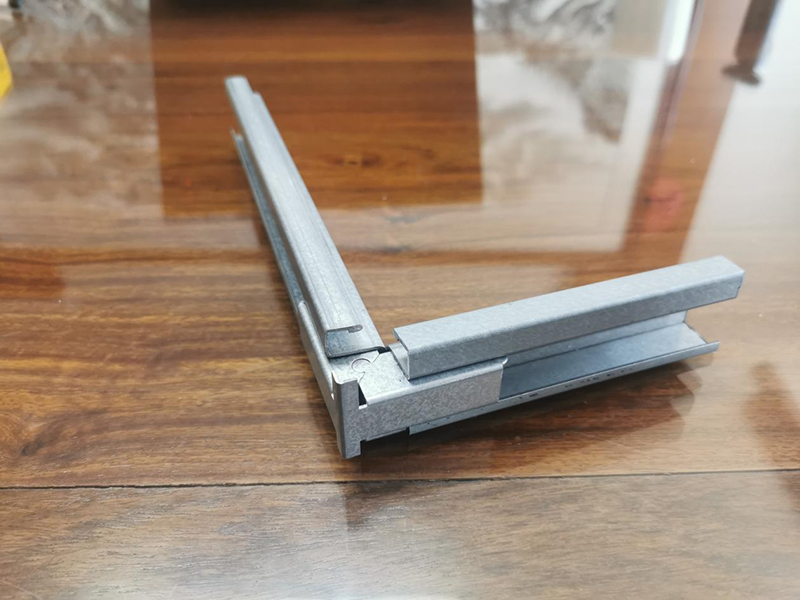

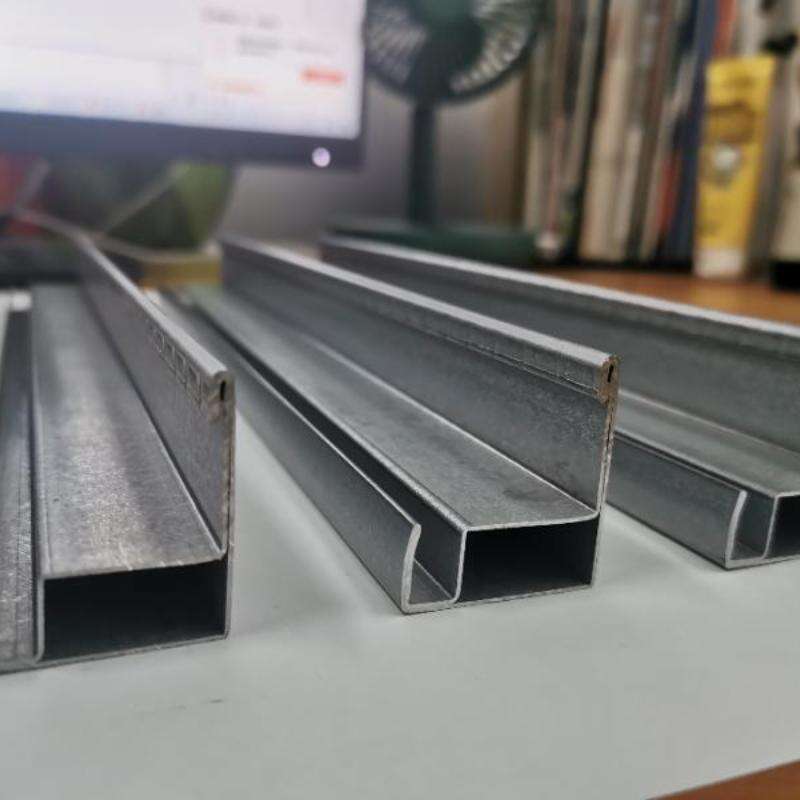

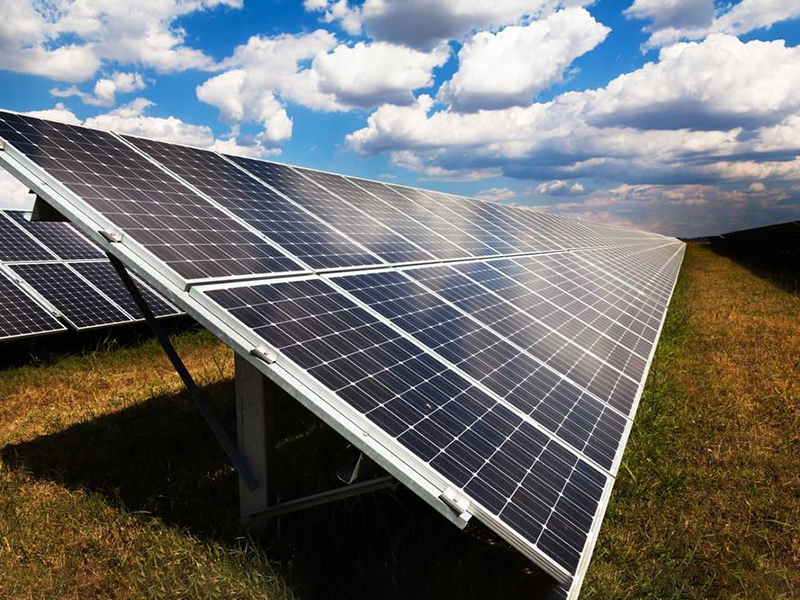

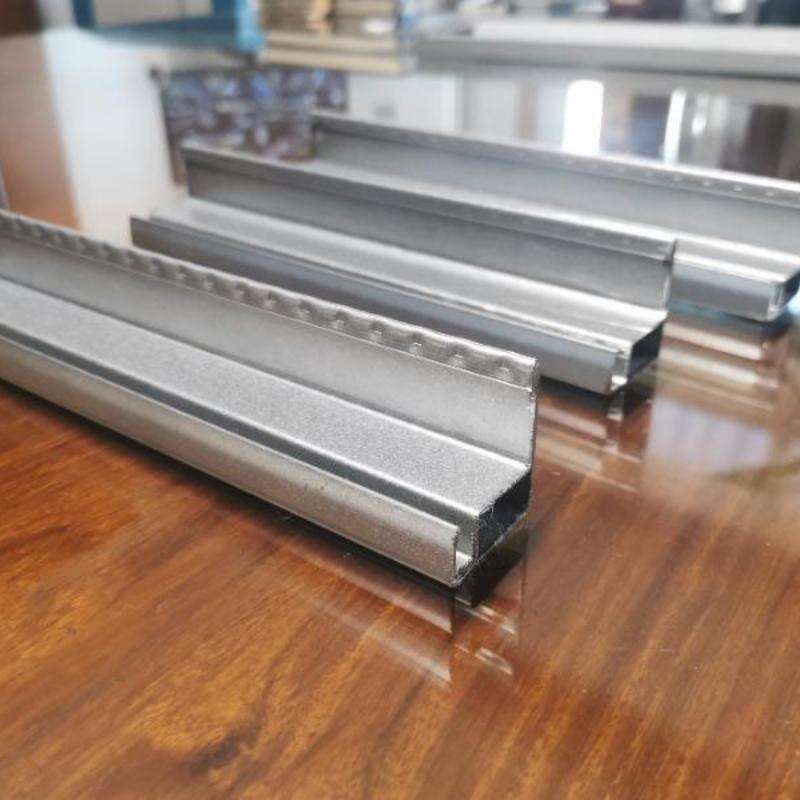

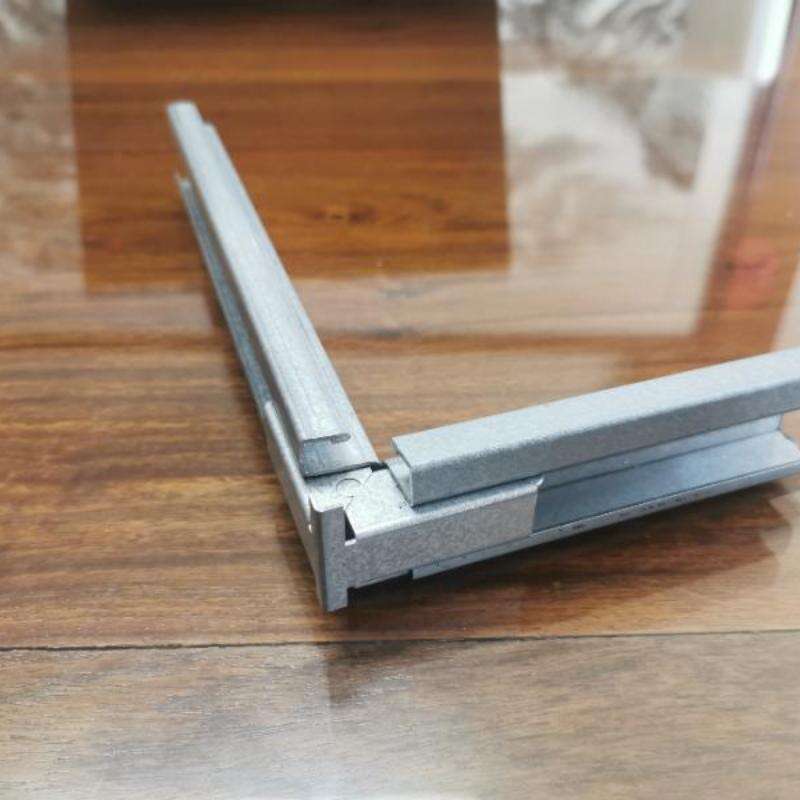

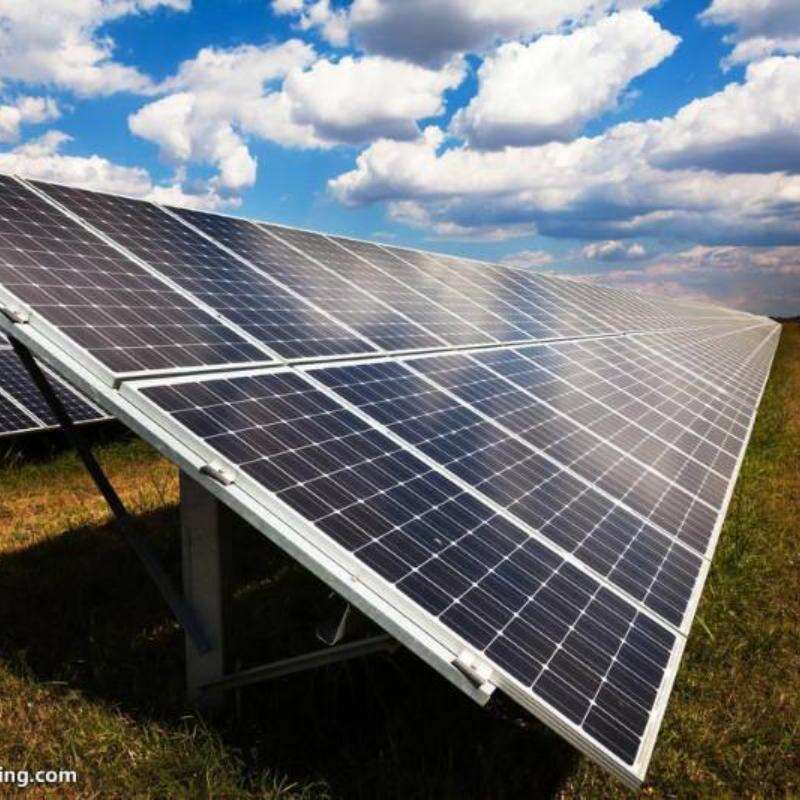

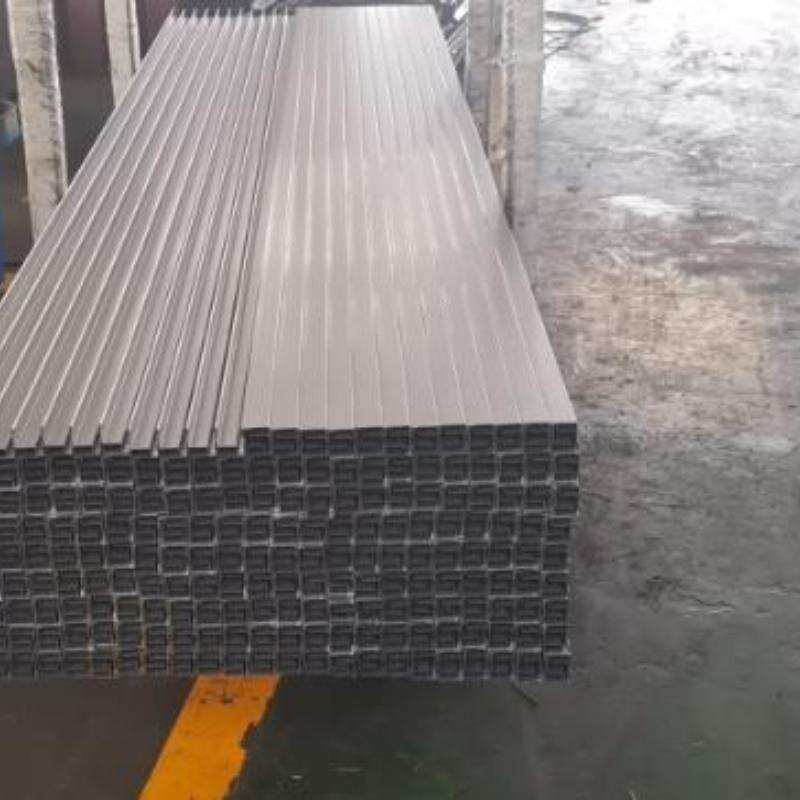

Under the solar energy business opportunities, polycrystalline frame has become one of the indispensable products. The traditional polycrystalline silicon frame material is aluminum, but the price of aluminum is too expensive, so we developed a new type of iron polycrystalline silicon frame. And in load-bearing capacity, life has been greatly improved, therefore, the new polycrystalline silicon frame has become a hot product in the market.
Description

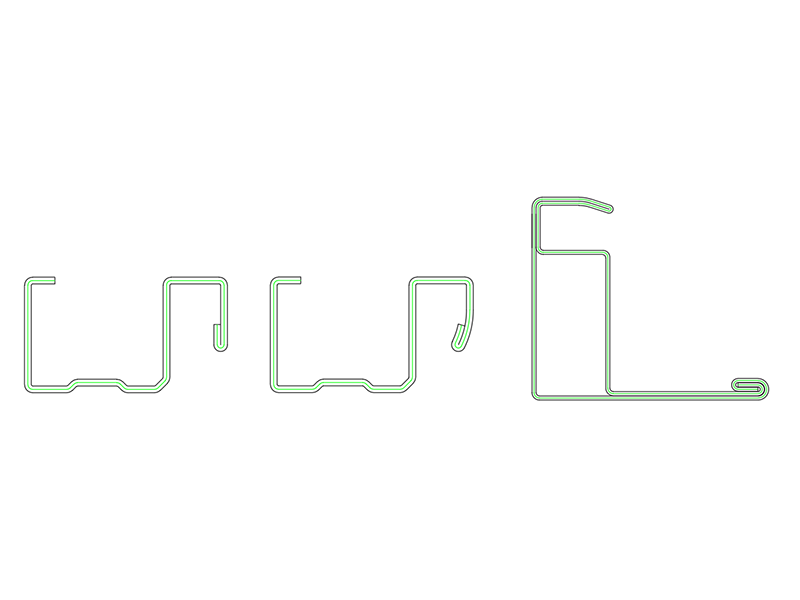

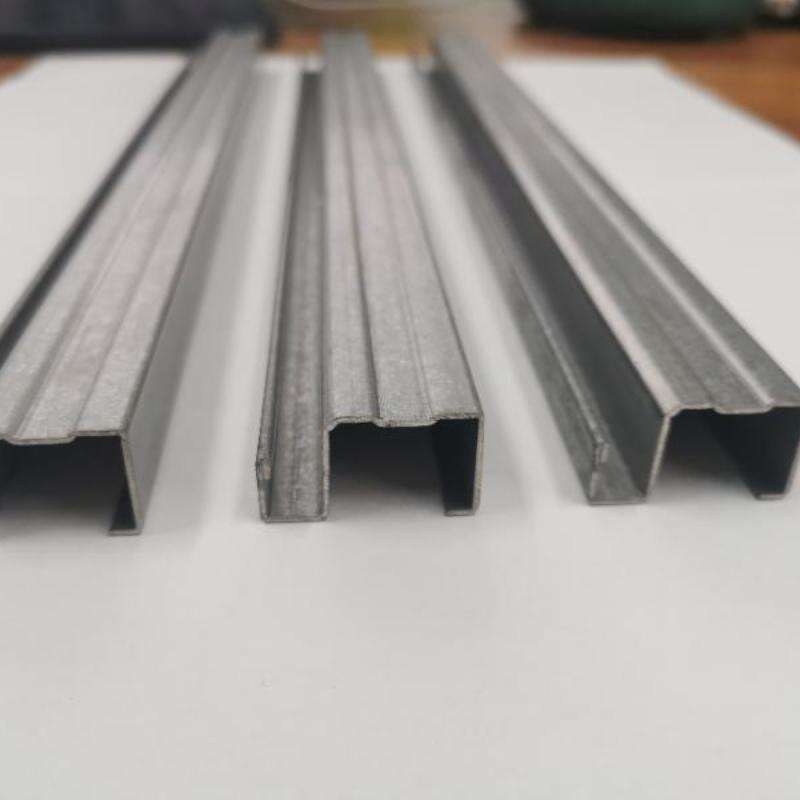

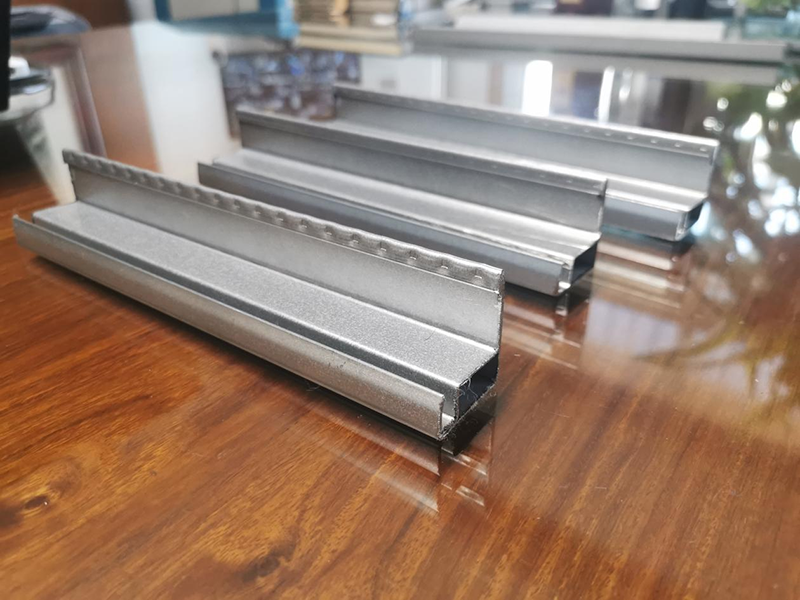

We can give different design of the fame to meet the client's project.

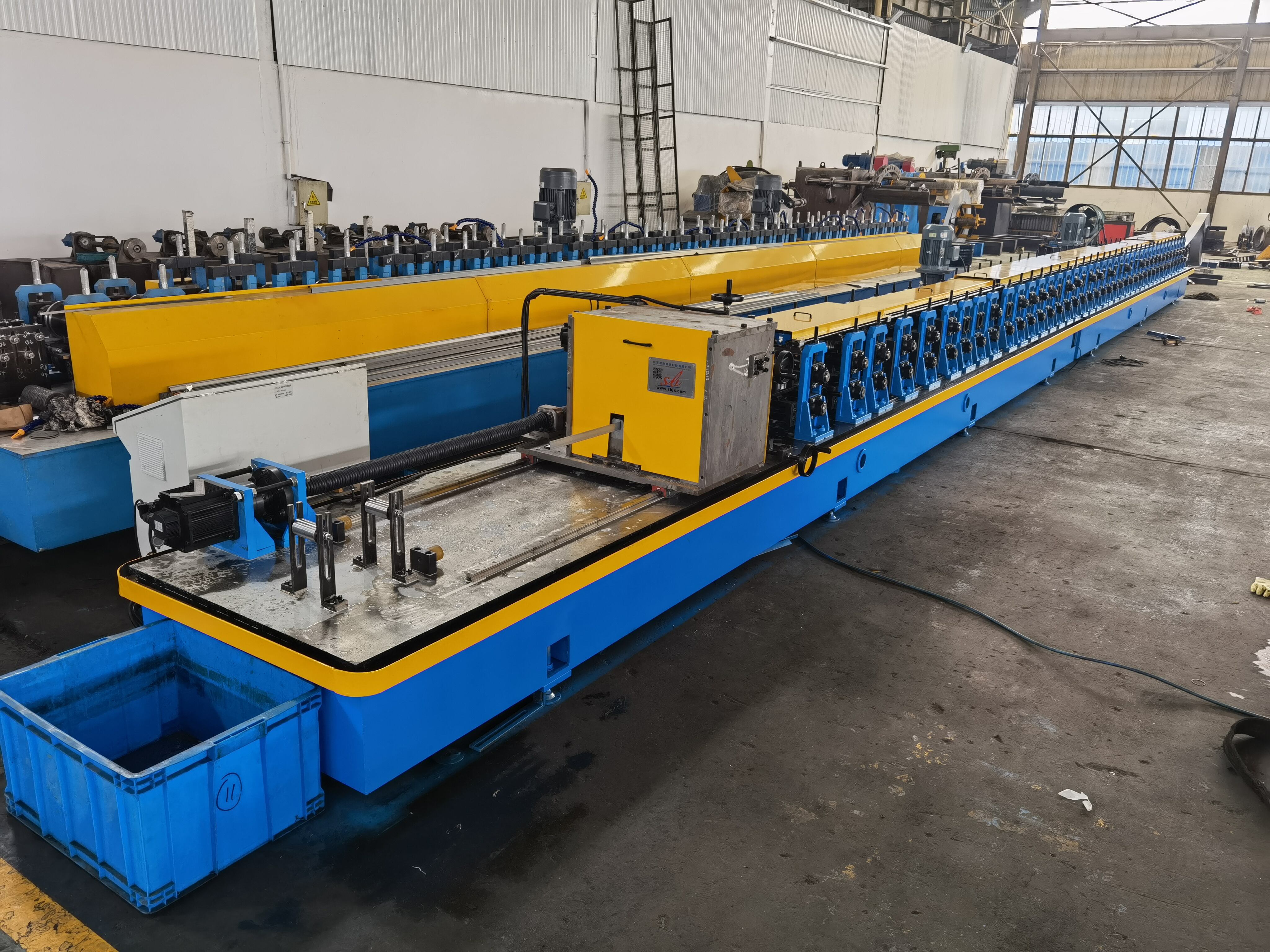

Full line working process
We give about 42 forming stations for get excellent product. And high speed non-stop punching to save manpower.
Layout for reference
3T double head Un-coiler—Feeding—Roll Forming—Rectify—Track Fly Saw Cutting—Out table
Main spec. of line:
Full line power: about 30KW
Line speed:40-50m/min
Forming station: about 40 stations
Shaft:65mm
Drive by gear box of each station
Roller material: D2

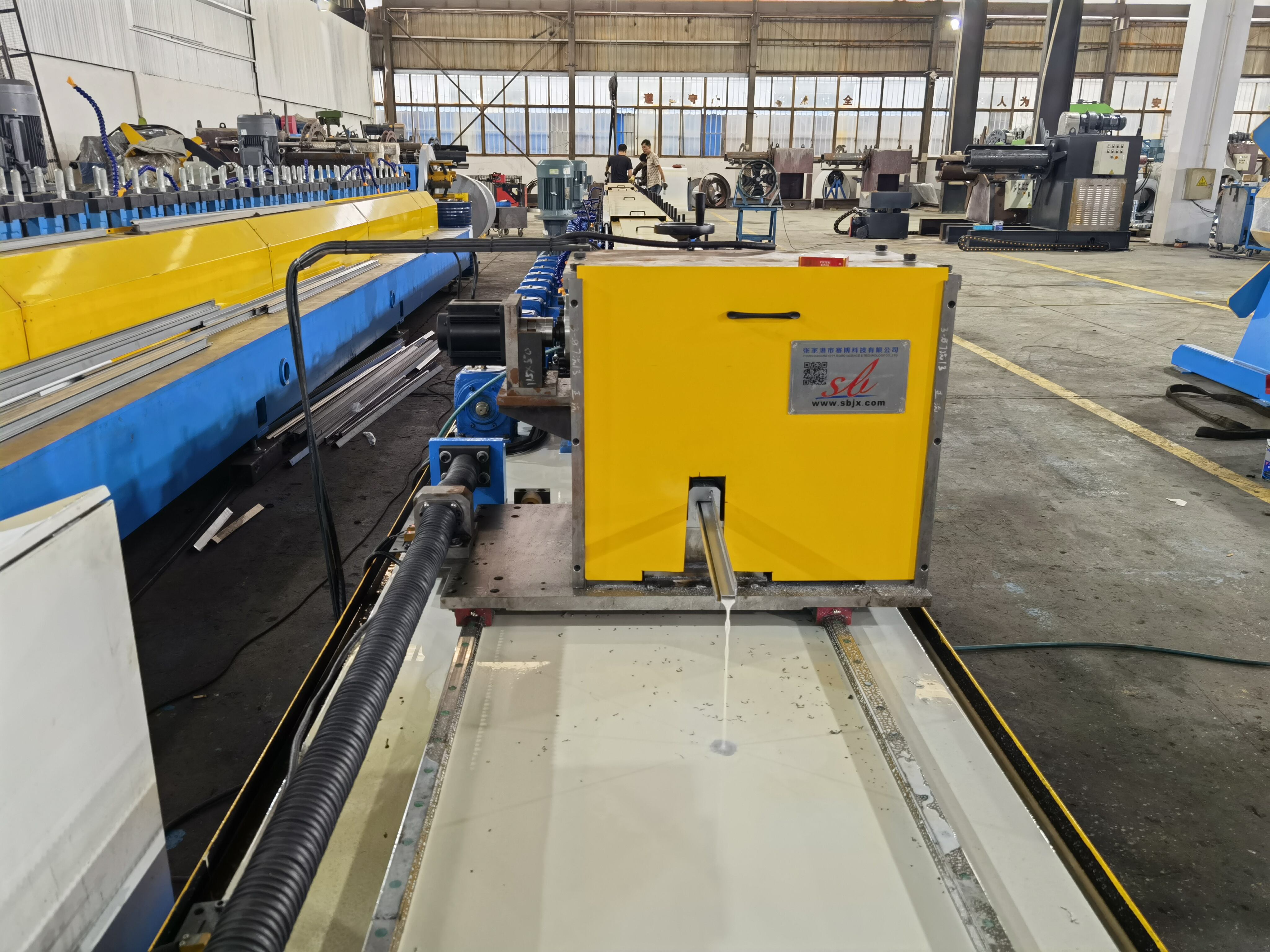

Saw fly cutting, cutter material HSS
Motor: Siemens
Servo and control system:Mitsubishi/Siemens/Panasonic......
