Post channel
We provide C channel/C lip Change or M shape post channel, the thickness up to 5.5mm.
Description
Product Detail

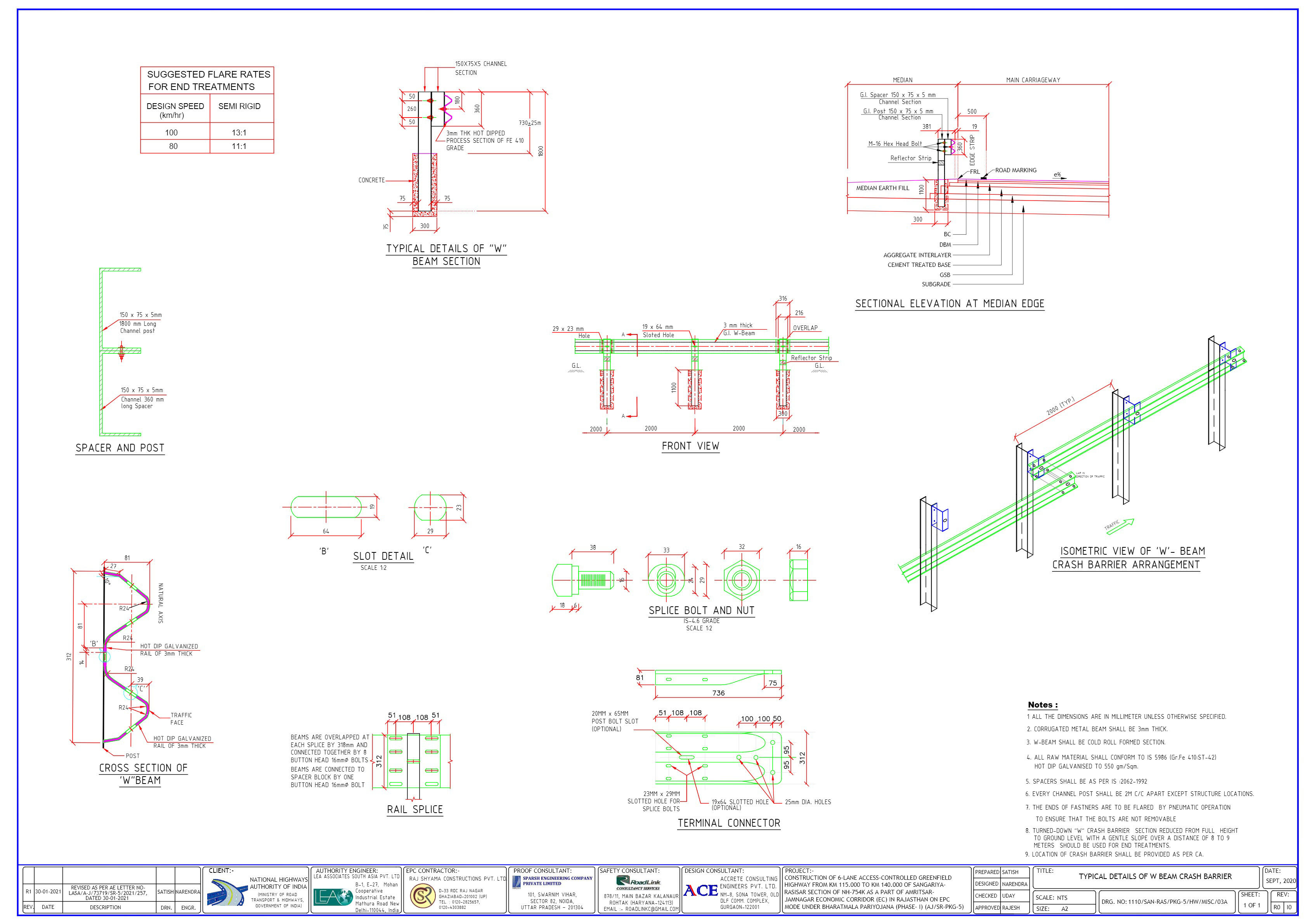

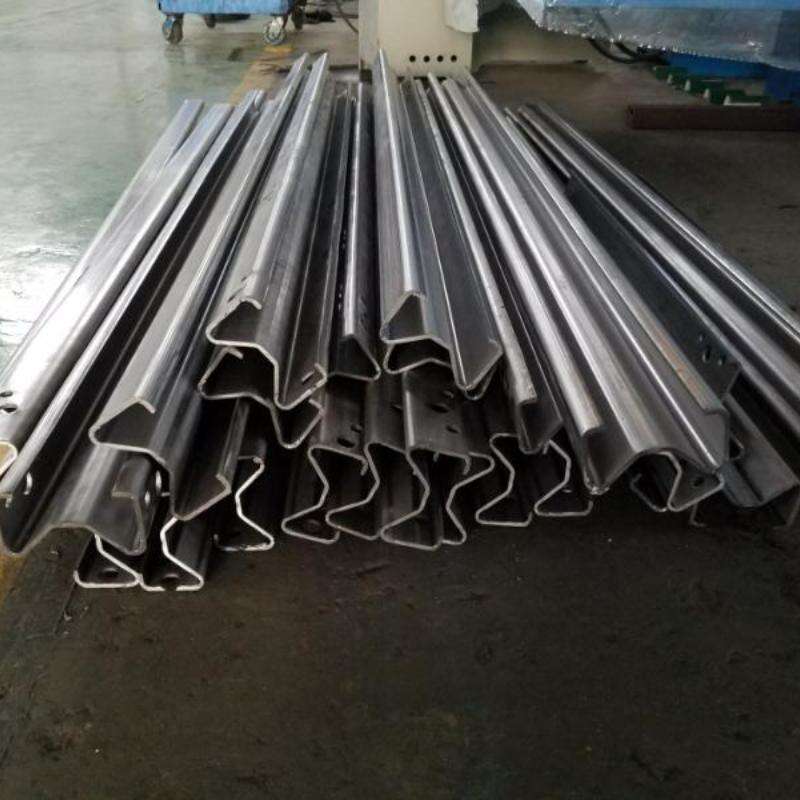

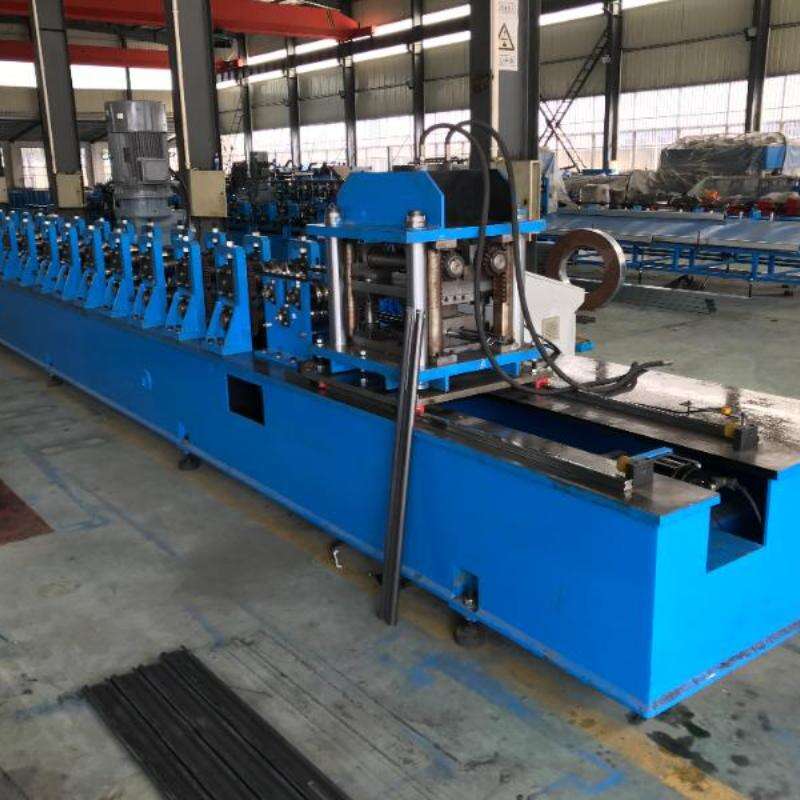

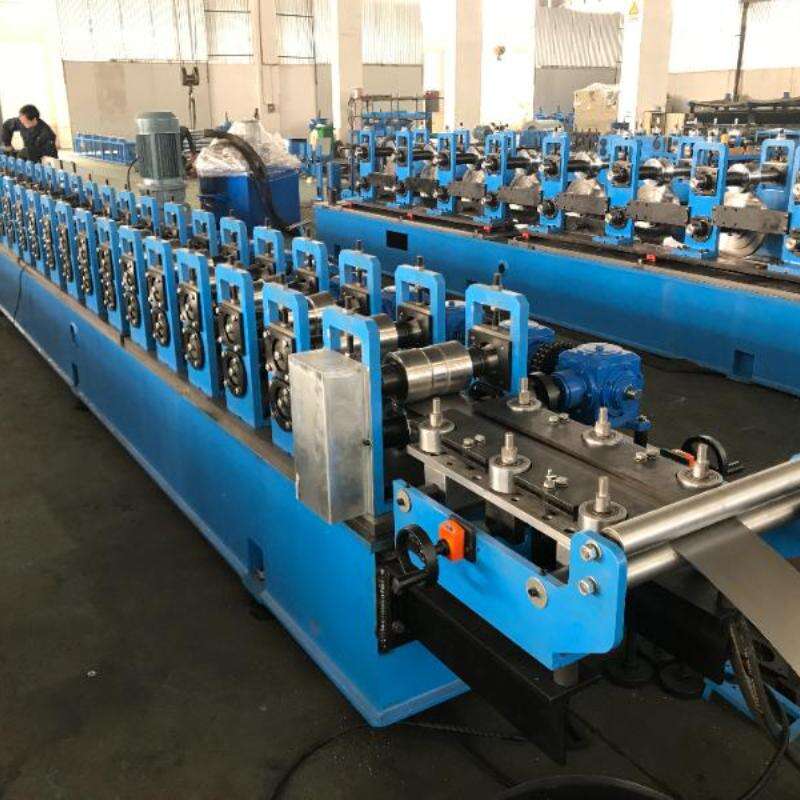

Post channel is one of a component of Road crash barrier, there are many shapes of the post channel, like C shape, U shape and M shape, and the forming thickness can up to 5.5mm. Machine adopts servo feeding& punching and track cutting to make the fast speed. The whole line adopt famous motor and VFD brand. According to the customer request, machine also can make cassette design with Z profile to save the customer cost.
Main technology
Heavy duty uncoiler with coil car
Independent flatten system
Serco feeding& punching to make holes
By cassette design to make different profiles
Gear box with coupling drive

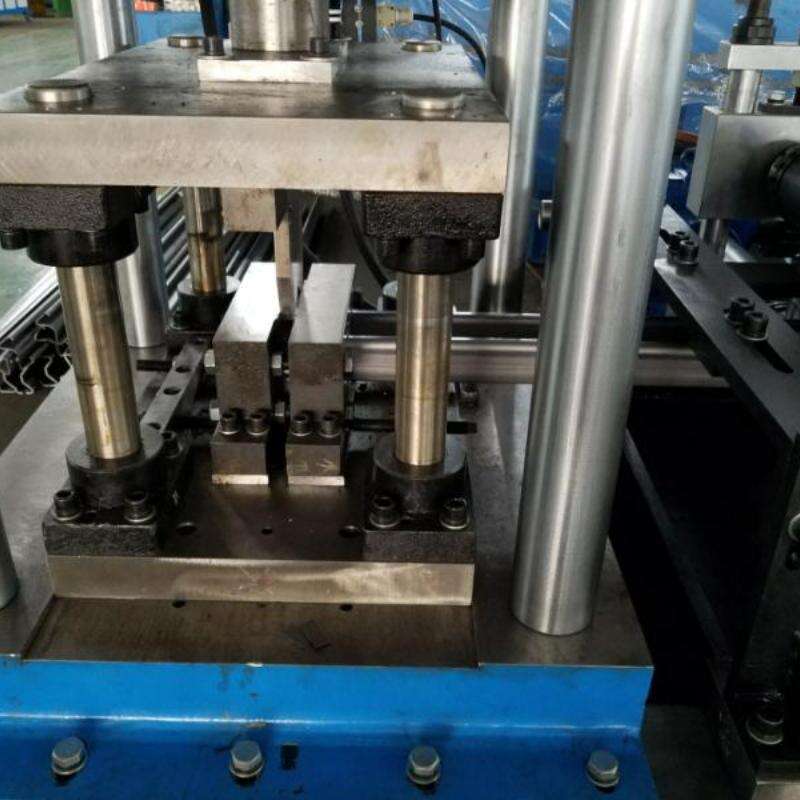

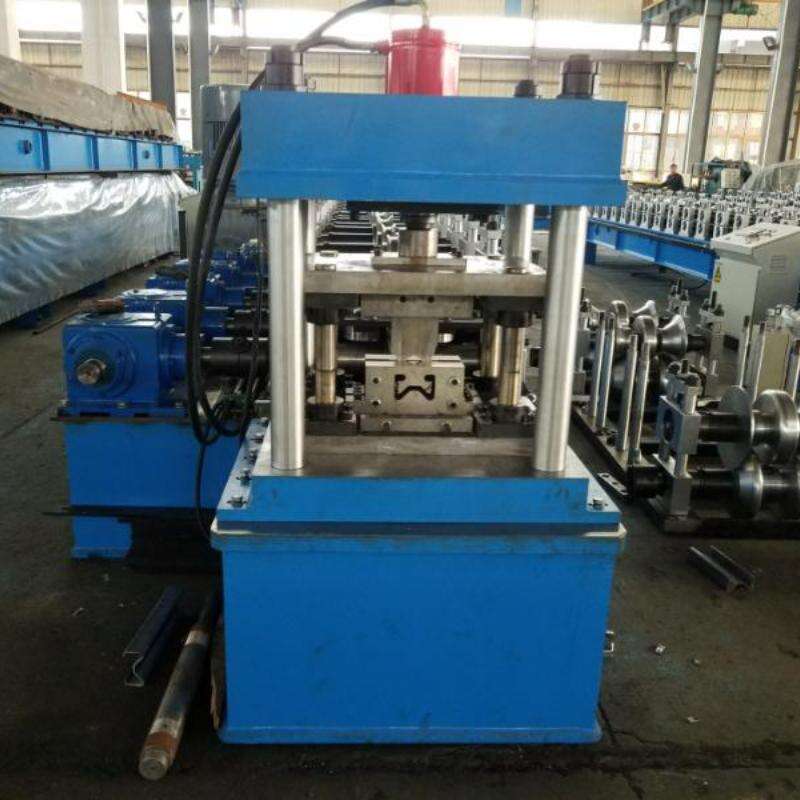

Non-stop high speed cutting
Main spec. of line:
Full line power: about 90KW
Full line speed: 10m/min

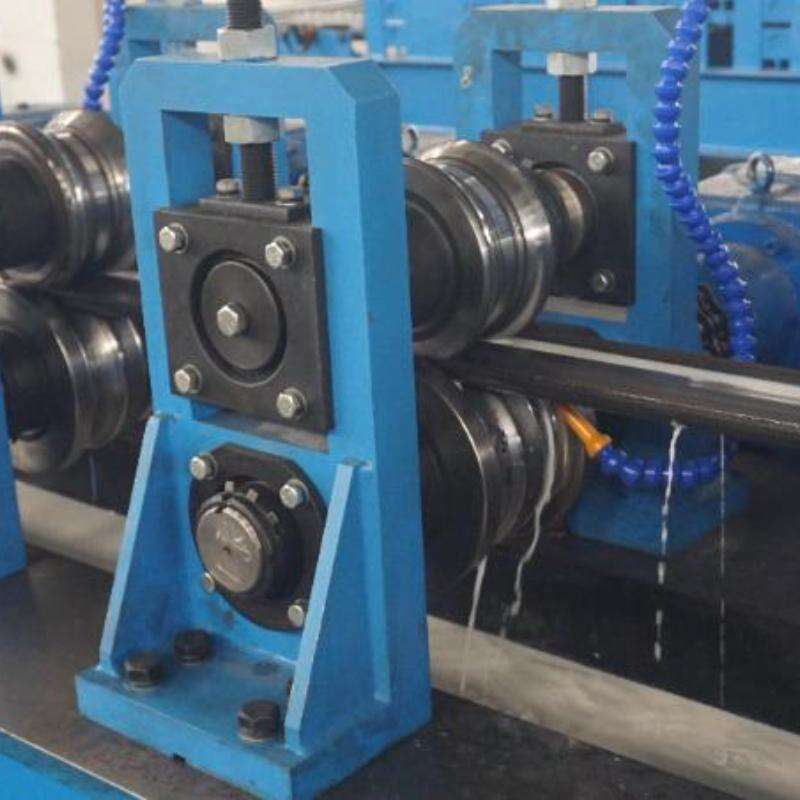

Forming station: about 9 stations
Drive by gear box of each station
Full line weight: about 30Tons
Roller material: D2
Punching die and cutting die material: D2
Motor: Siemens
Servo and control system: Siemens/ Mitsubishi
Full line uses motion controller (MC4N-ECAT P901) and a remote control system

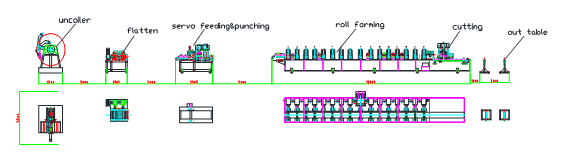

Layout for reference:
