Silo RFM
Saibo Science & Technology provide different silo for client, including small, medium and heavy duty silo.The thickness of the plate can be 0.8-3.0mm, the span can be from 1-20 meters. We offer fully automatic production lines including coil→feeding→leveling→scrap slit and recoil→roll forming→punching→cutting→curving→collect. Full automatic working to save so much manpower.
We provide silo body sheet, post and roofing sheet, a complete system.
Description
Product Detail
Saibo Science & Technology provide different silo for client, including small, medium and heavy duty silo. The thickness can reach to 4.0mm. Machine adopts to track punching to increase the speed. After roll forming , adopts three roller curving machine to bending the final product, the max curving length is 3 meters.
Main technology
Heavy duty uncoiler with coil car
Full automatic set request length and quantity

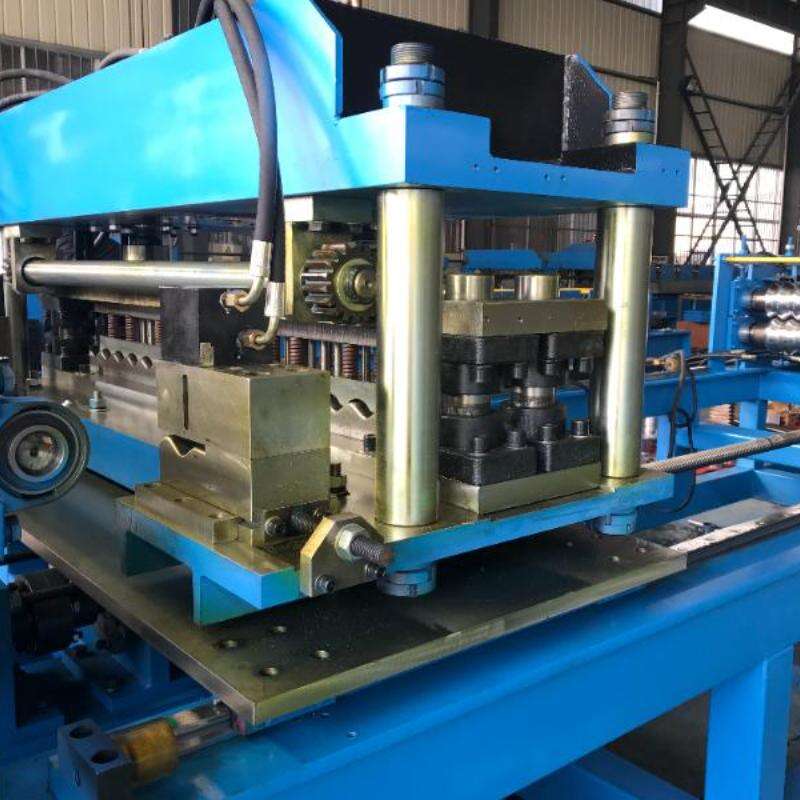

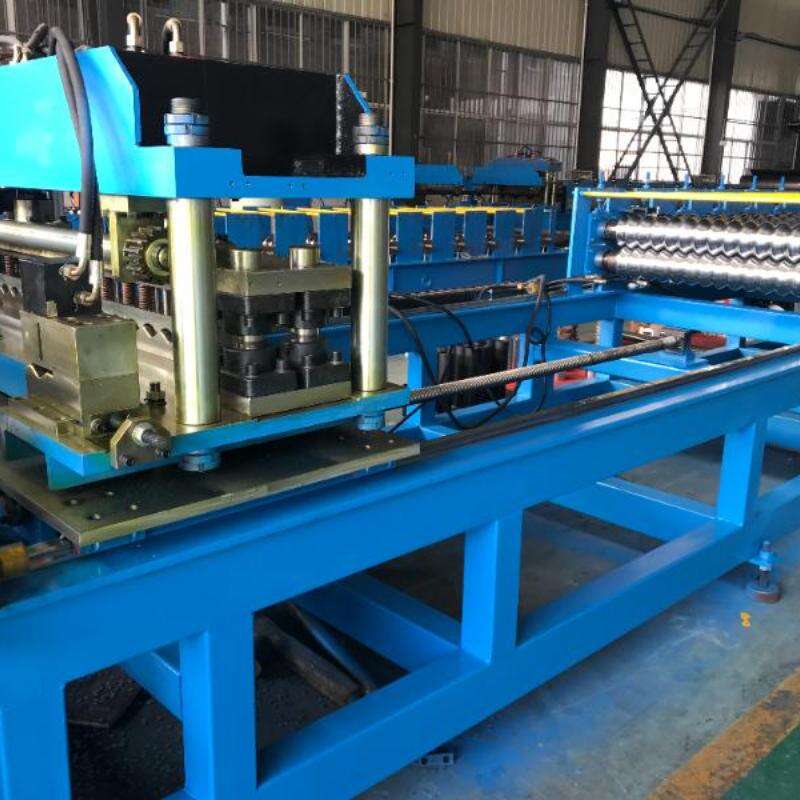

Track punching to make holes on line

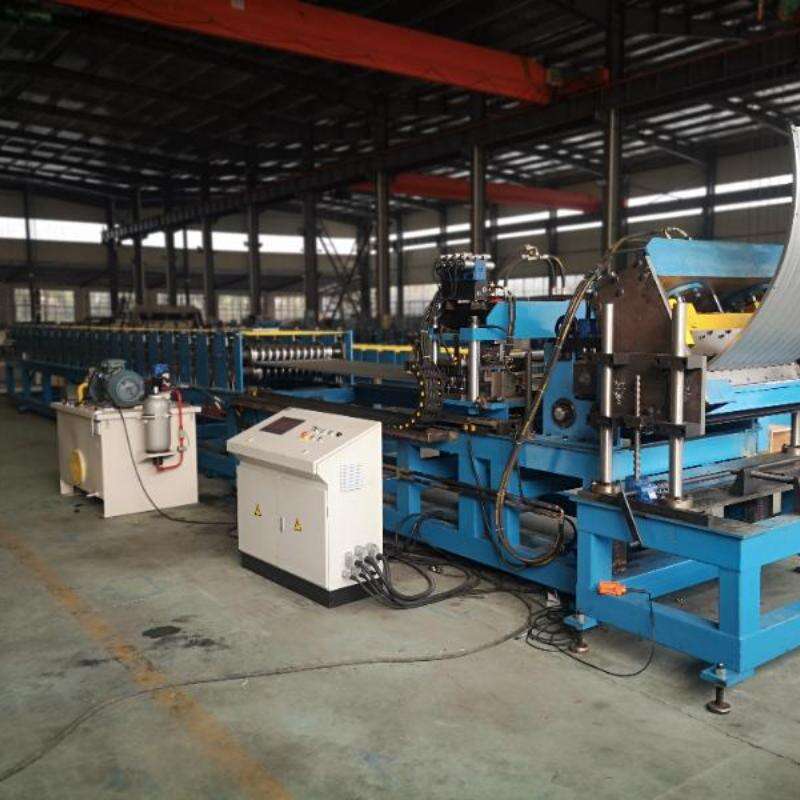

Three rollers curving to bending final product

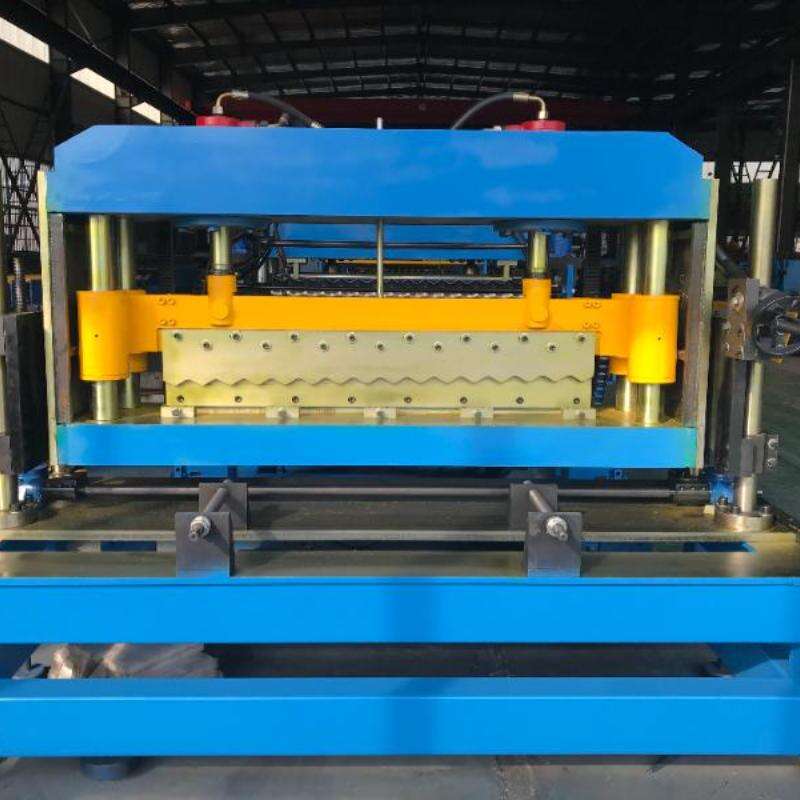

Hydraulic no scrap cutting
Main spec. of line:
Full line power: about 60-120KW
Forming speed: 0-15m/min
Forming station: about 13-20 stations
Drive by gear box or chain
Full line weight: about 20-50Tons
Roller material: GCR15、D3
Punching die and cutting die material: D2
Motor: Siemens
Control system: Mitsubishi/ Siemens/Panasonic
Layout for reference:
