Storage Racking RFM
Saibo Science & Technology provide different type of storage rack, like heavy storage rack,Medium-sized storage rack and light storage rack systems. The thickness can from 1.0-4.0mm, web size from 60-180mm, and change size by automatic.
Description
Product Detail

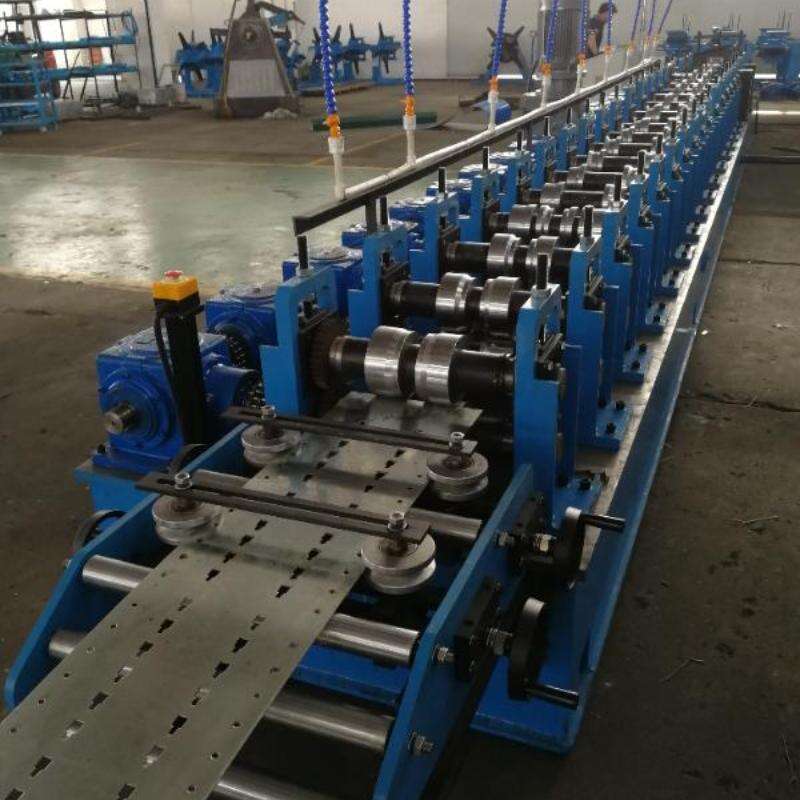

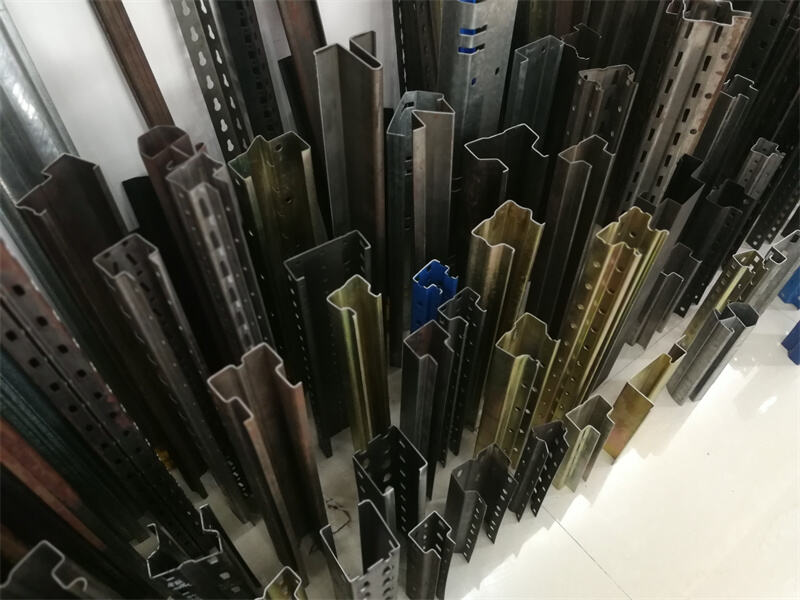

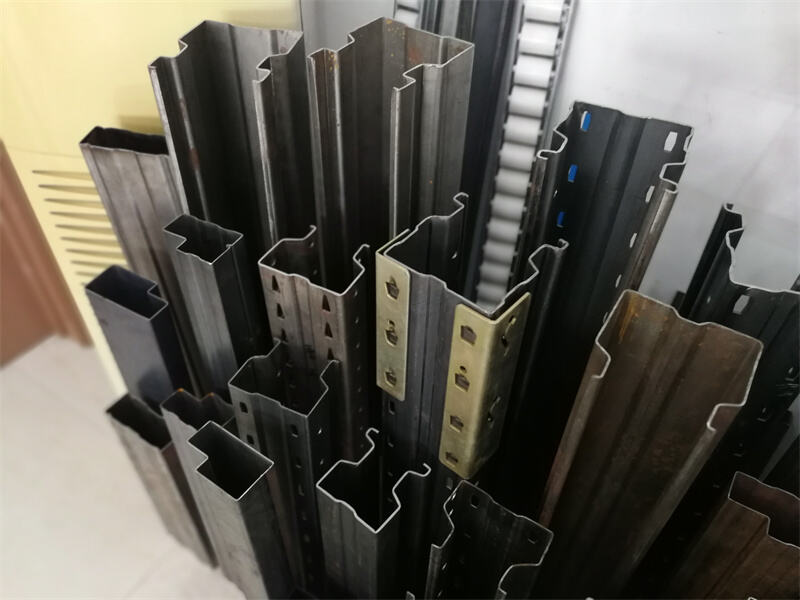

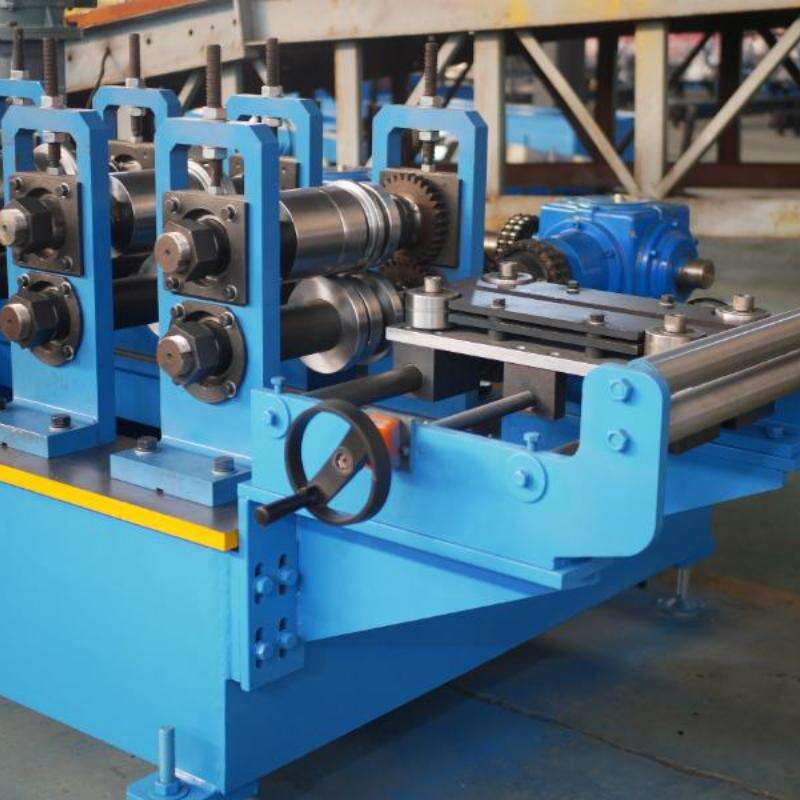

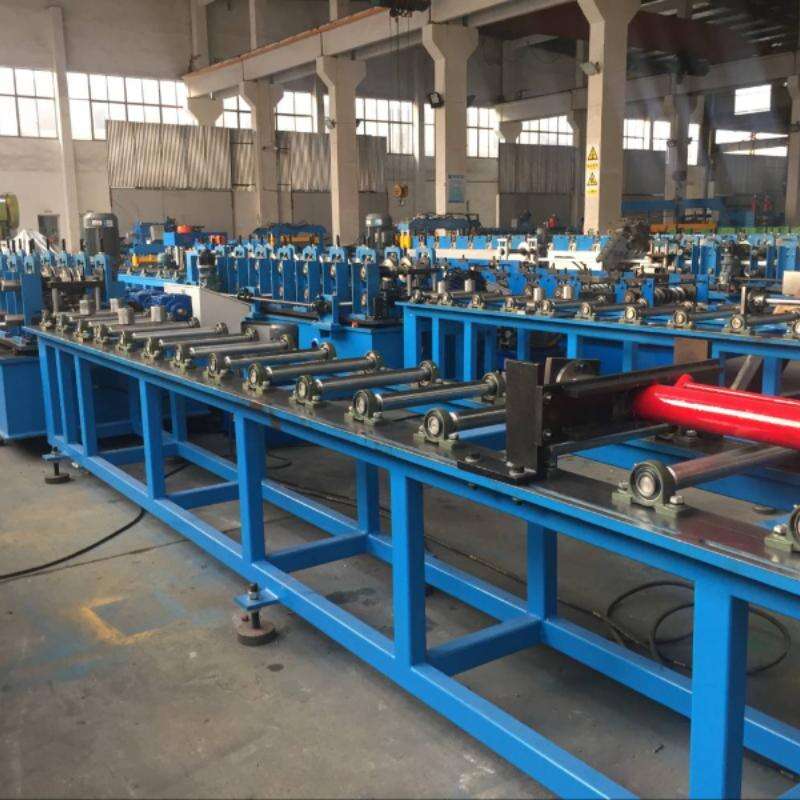

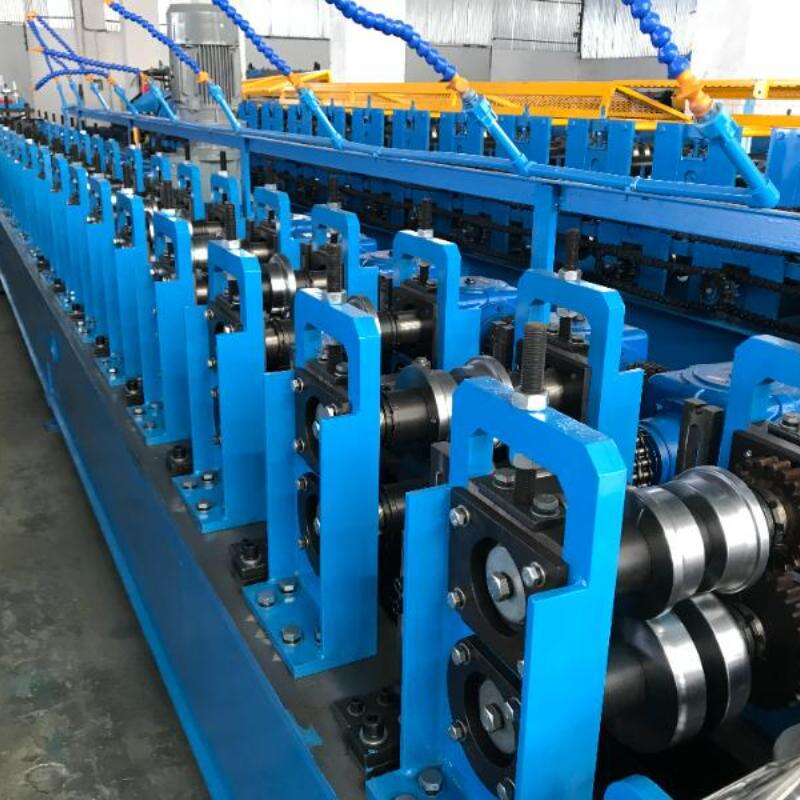

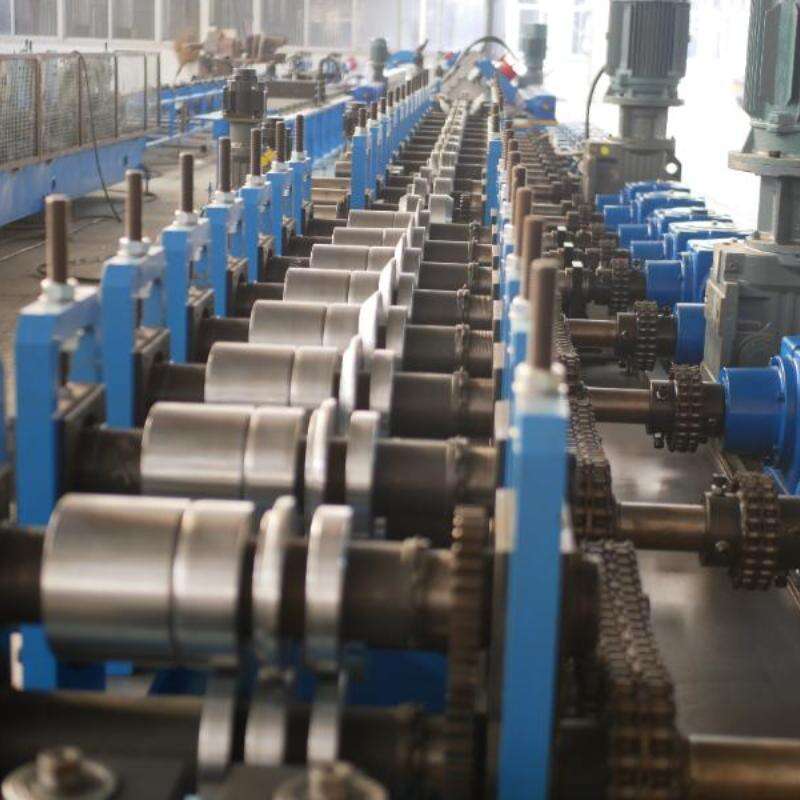

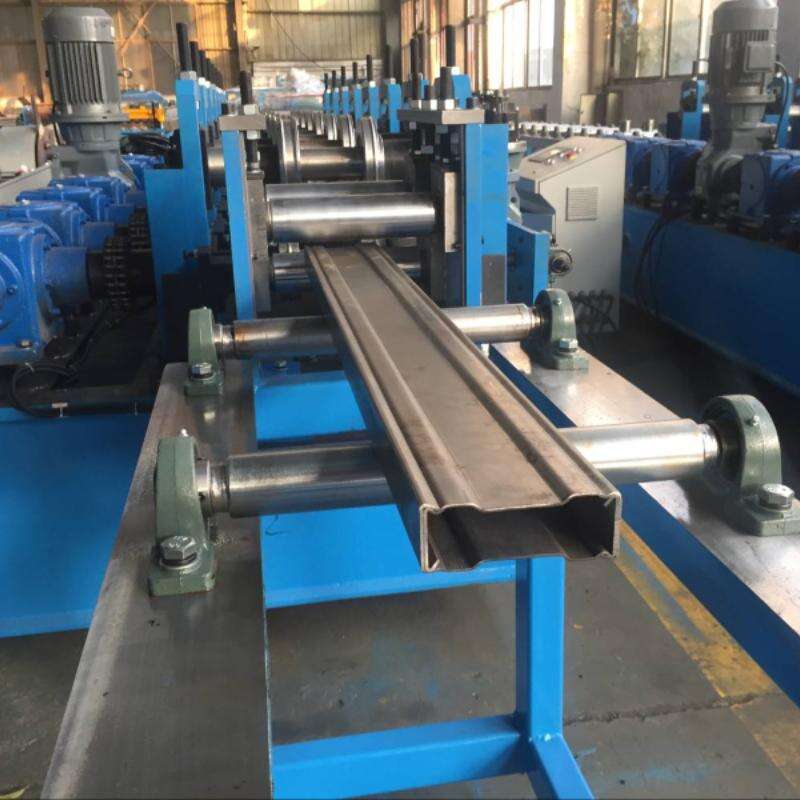

The storage rack system is composed of finished products by 4 sets of roll forming machines, Upright roll forming machine, Beam roll forming machine, C support roll forming machine and Lock roll forming machine. Upright roll forming machine can product material thickness up to 3.0mm, adopt continuous servo punching machine to make punching speed fast and more accurate. Beam roll forming machine can roll material from 1.0mm to 4.0mm, and the web size can adjust from 60mm to 180mm by automatically.
Main technology
Heavy duty uncoiler with coil car

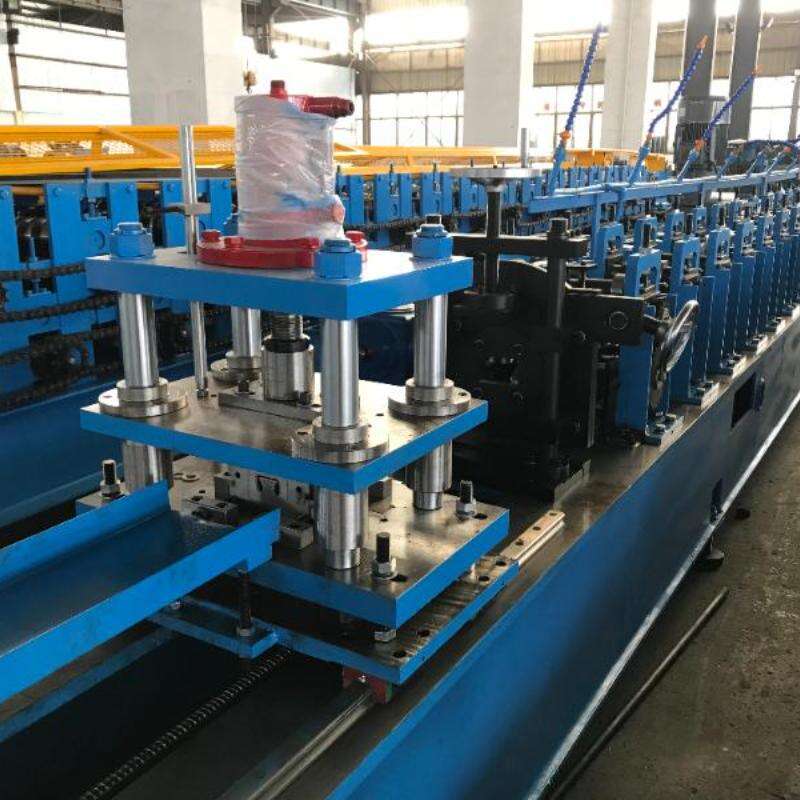

Continuous punching machine
Full automatic change size

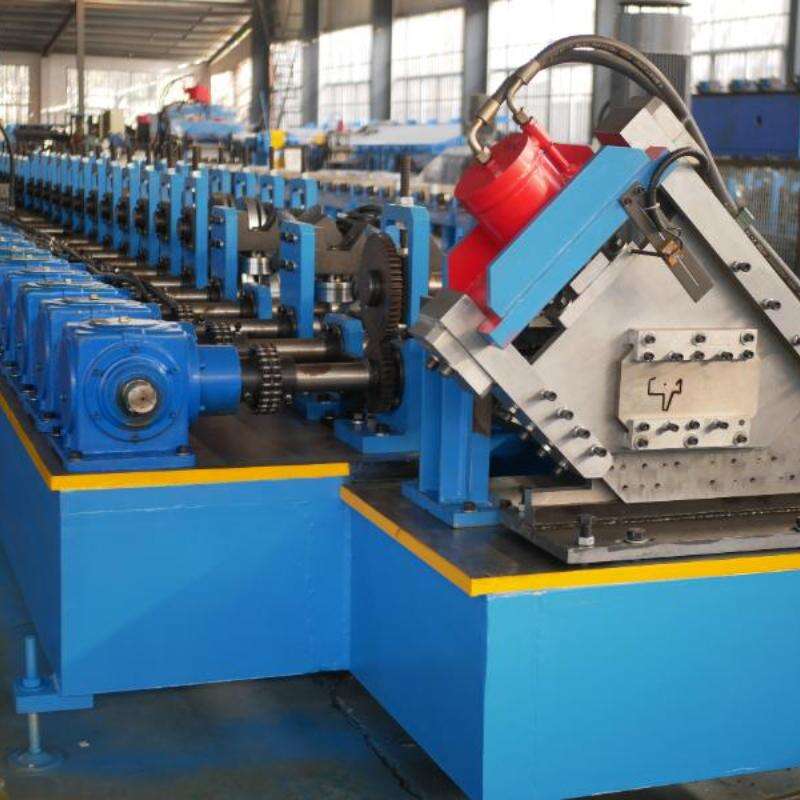

Non-stop high speed cutting
Full automatic stacking and packing
Main spec. of line:
Full line power: about 60KW
Forming speed: 20m/min
Forming station: about 20 stations

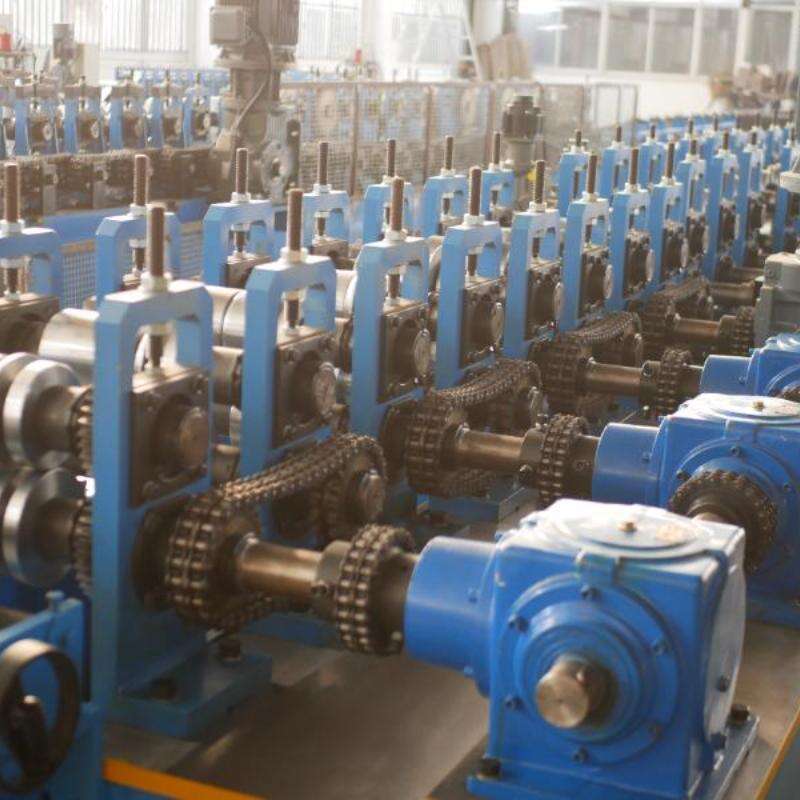

Drive by gear box of each station
Full line weight: about 20-30Tons
Roller material: GCR15
Punching die and cutting die material: D2
Motor: Siemens
Servo and control system: Mitsubishi/ Siemens/Panasonic
Layout for reference:
