Struct RFM

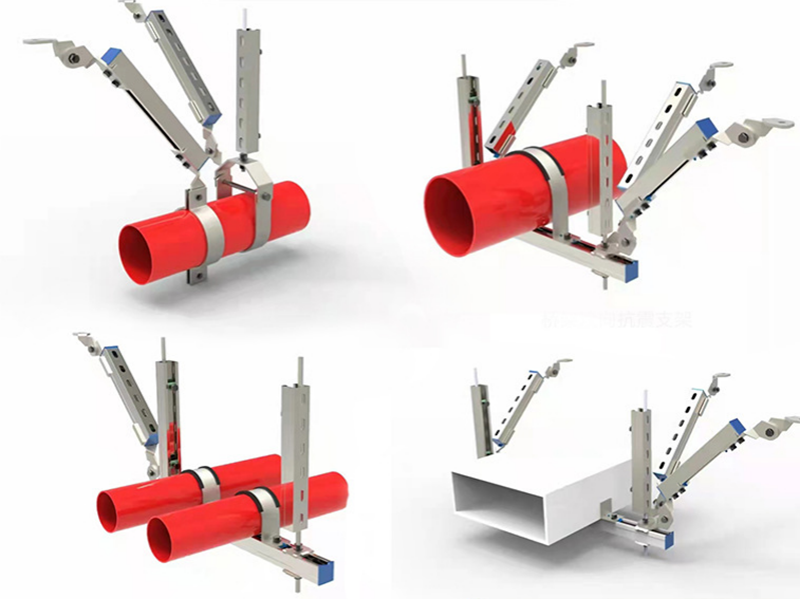

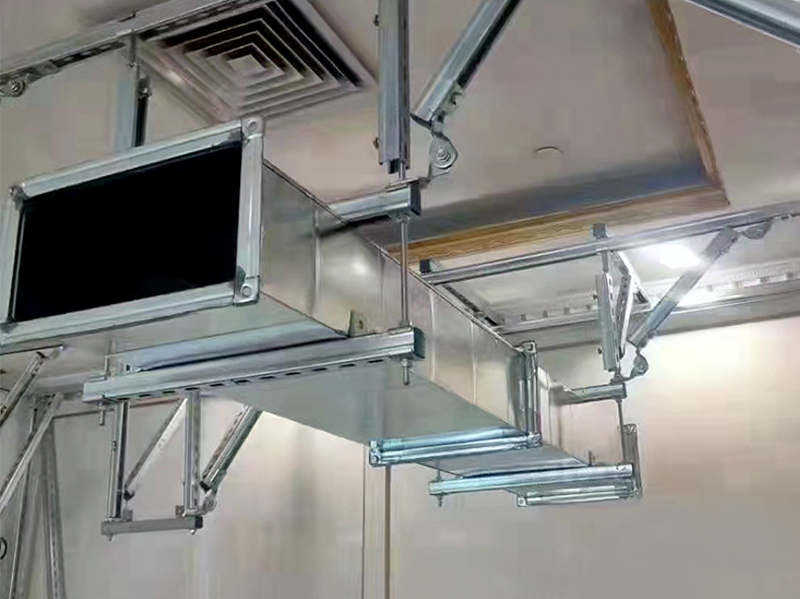

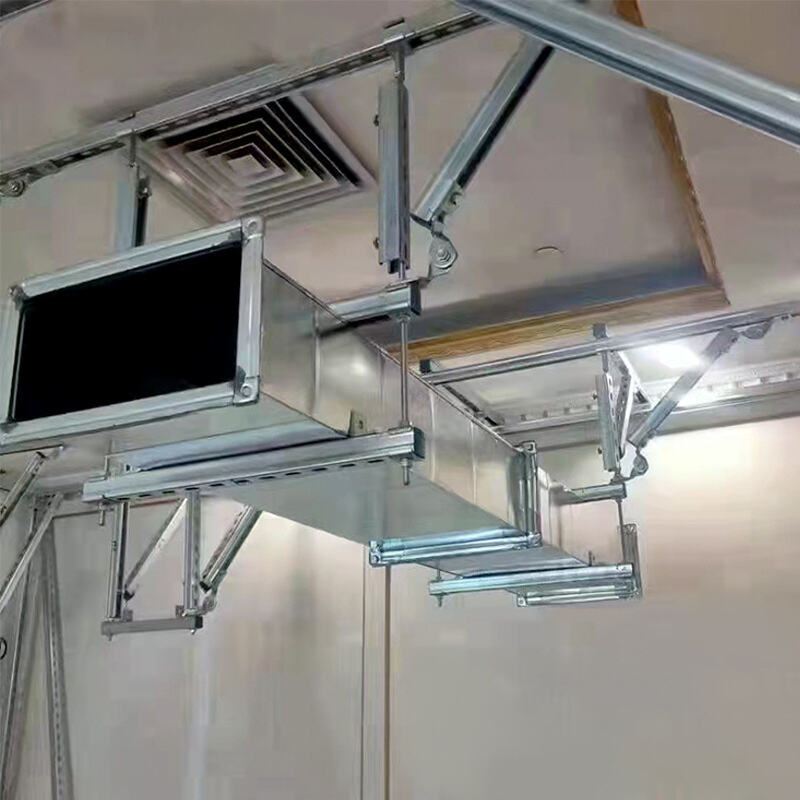

Struct profile is extensive use , not only can be widely used in solar support, but also can be used in seismic support, its high strength, simple installation, has been widely recommended and used in the construction industry.
Description
Struct profile include different sizes also. We provide one machine can make difference sizes, can change rollers or change full forming by cassette design.
Full line working process
To improve line speed, we give full line by high speed and strong design, we give rolling punching & cutting and each station by gear box. Rolling punching speed up to 60m/min.
Main Technology

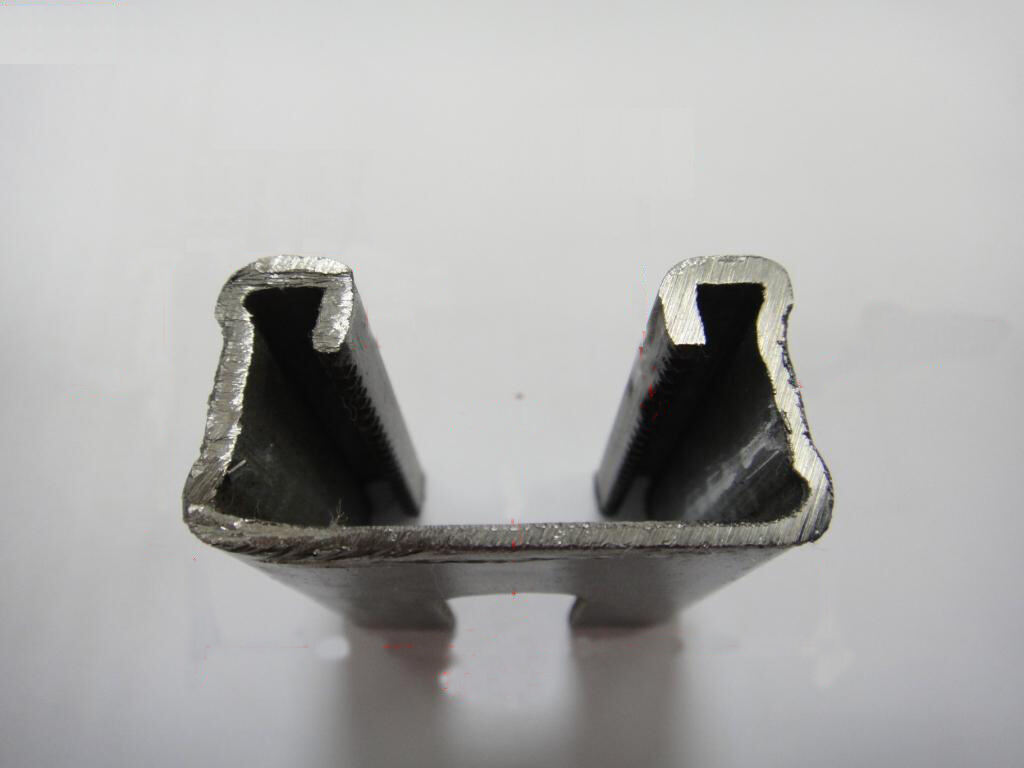

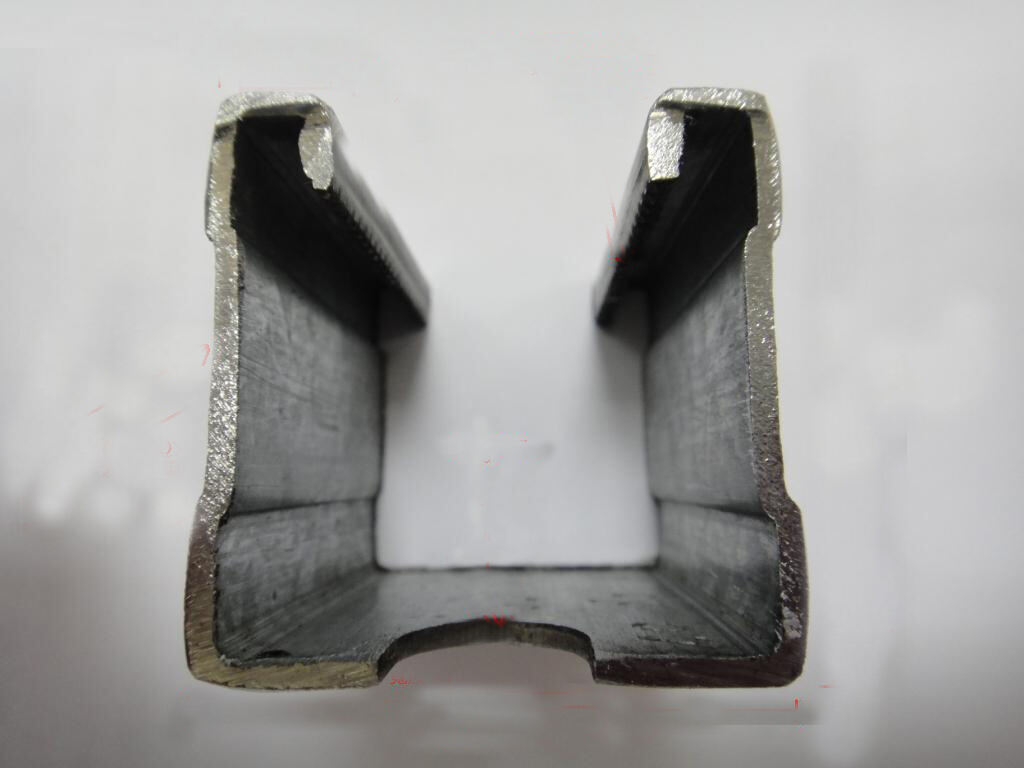

Struct have many different sizes, as standard include: 21*21、21*41/41*41、41*62，41*82 and so on. Same machine can make different size, can by full automatic adjustable design or cassette design or adjust roller by spacer.
We give high speed on line punching also, can achieve by rolling punching or high speed punching machine, and we adopt high speed non-stop cutting, after cut can automatic stacking&packing.Truly realized the full automation operation.
Main technology
• Double head uncoiler for quick change coil

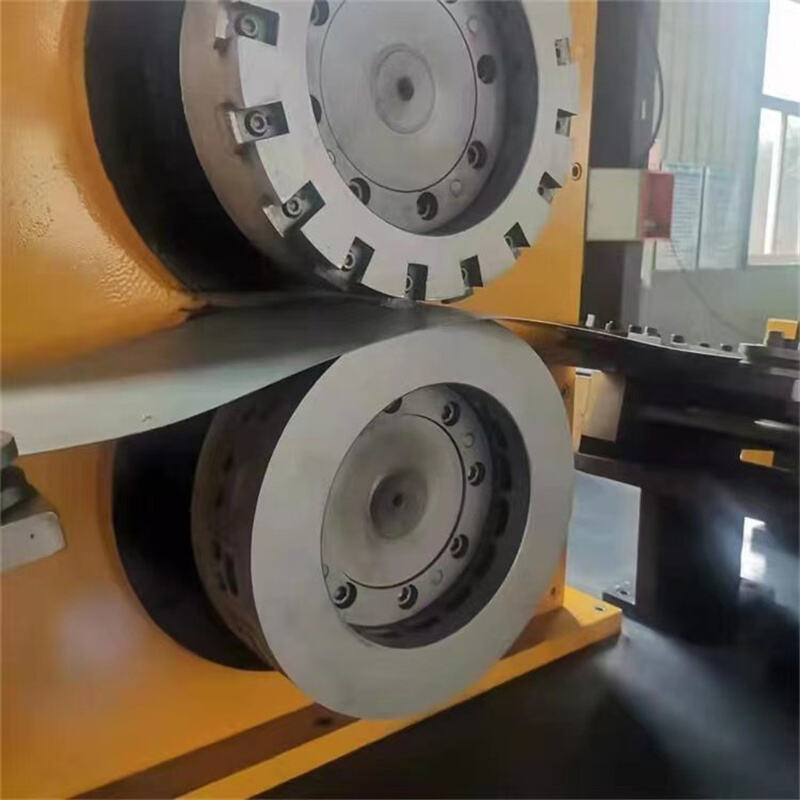

• Full automatic high speed on line rolling punching, can get 40m/min
• Have different solution to change size
• Non-stop high speed cutting

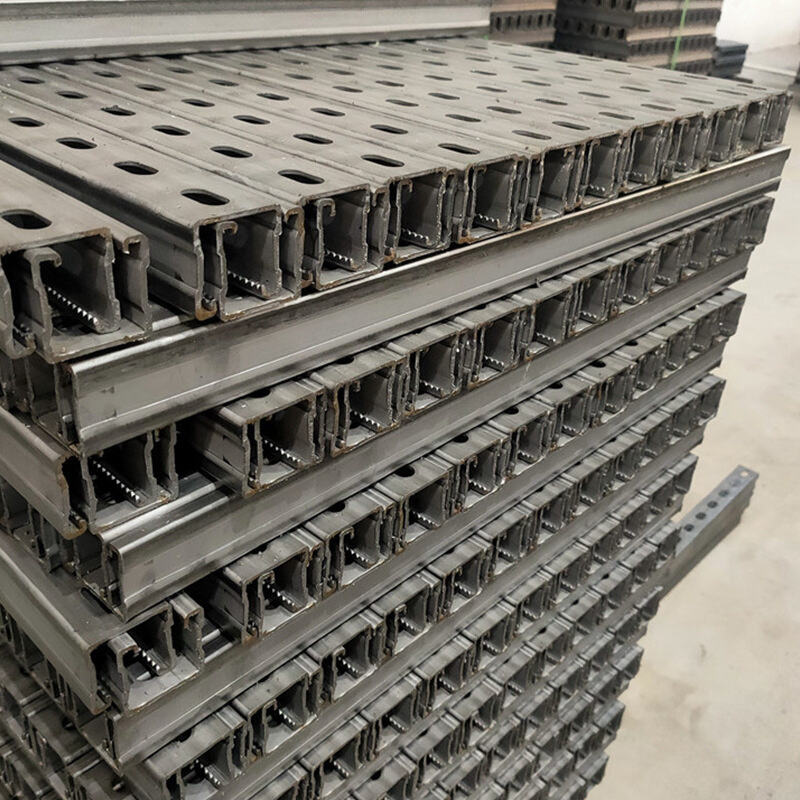

• Full automatic stacking and packing
Main spec. of line:
• Full line power: about 60KW
• Line speed:40-50m/min

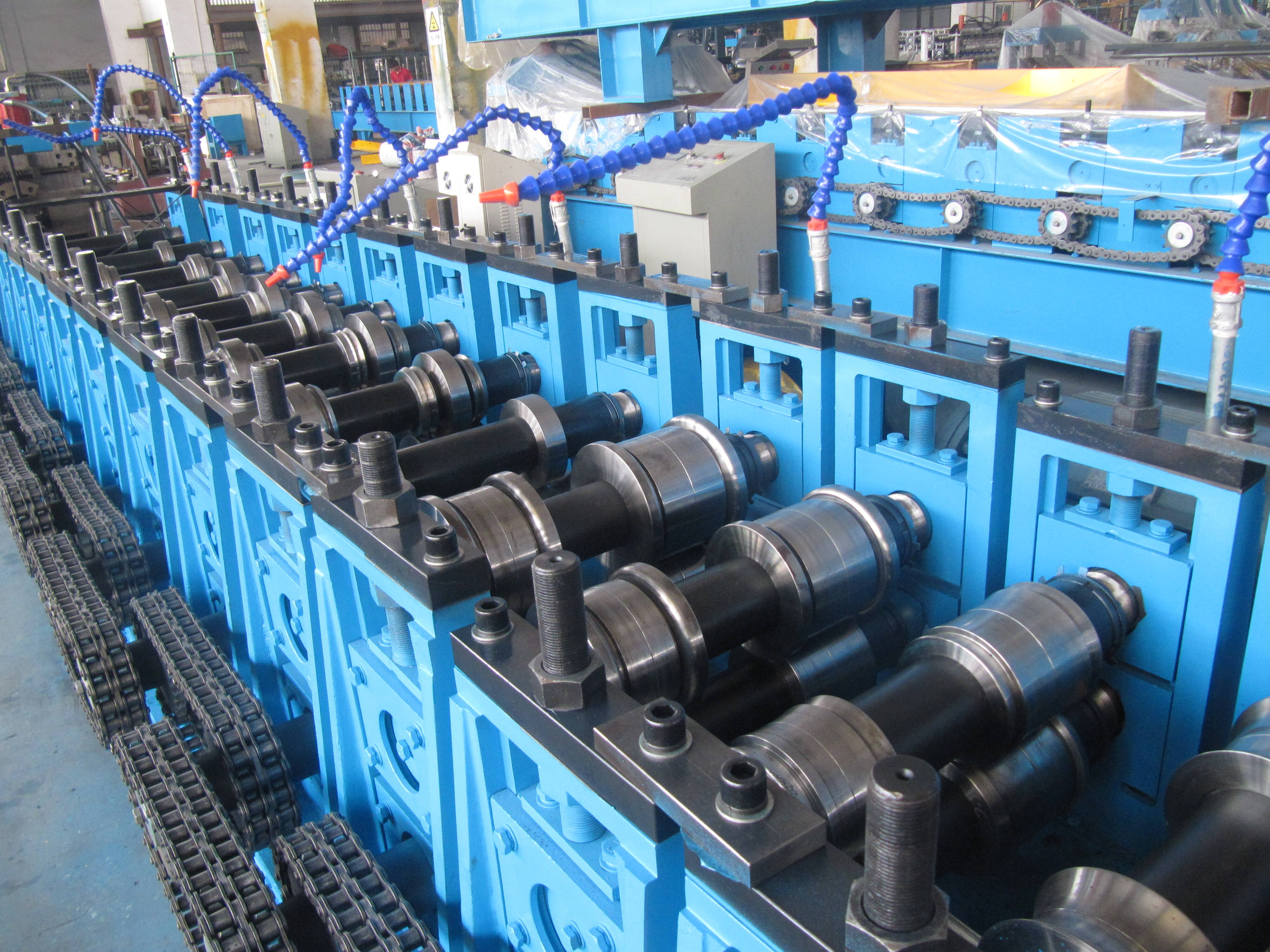

• Forming station: about 22 stations

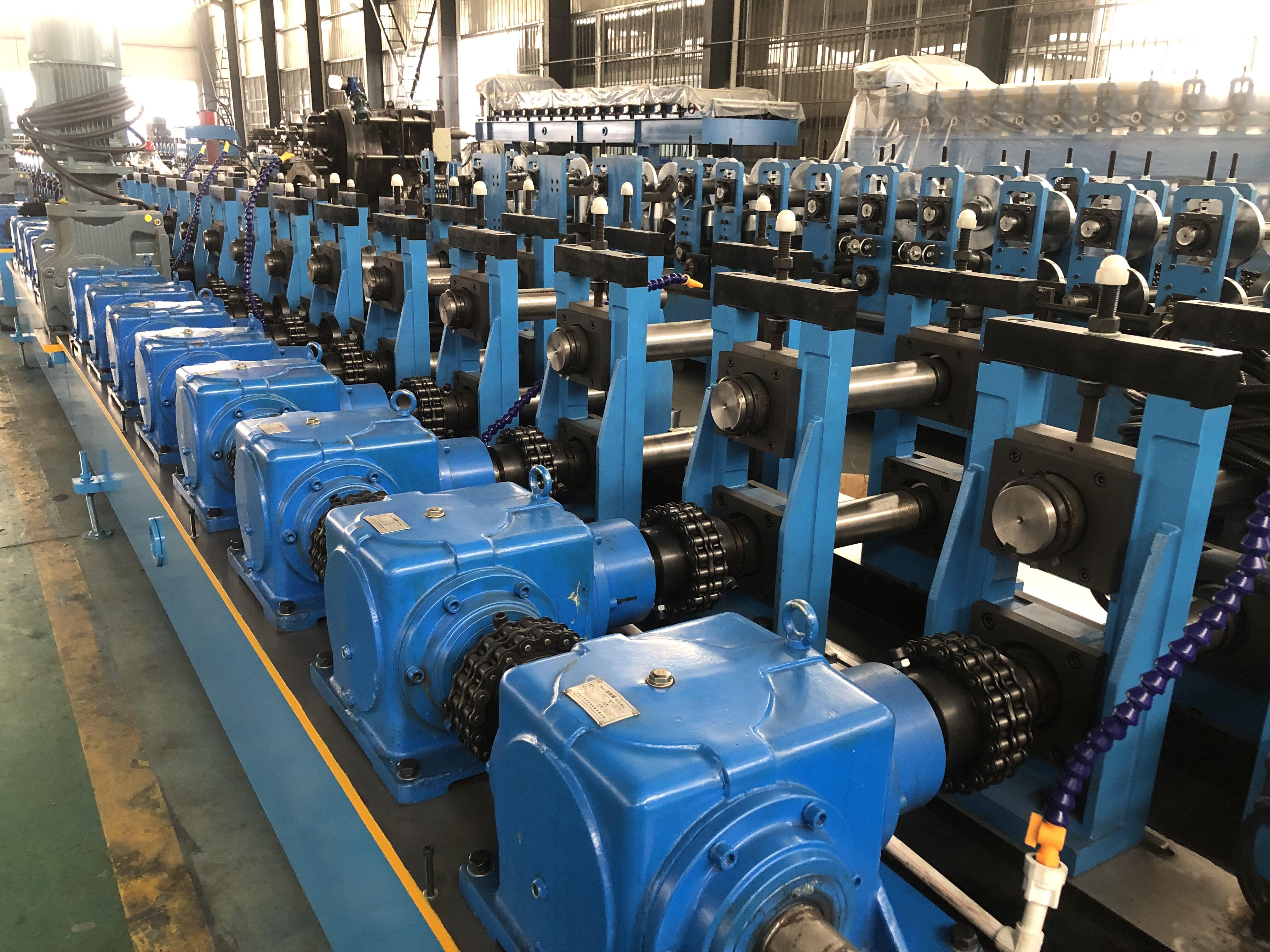

• Drive by gear box of each station
• Full line weight: about 30Tons
Roller material: D2

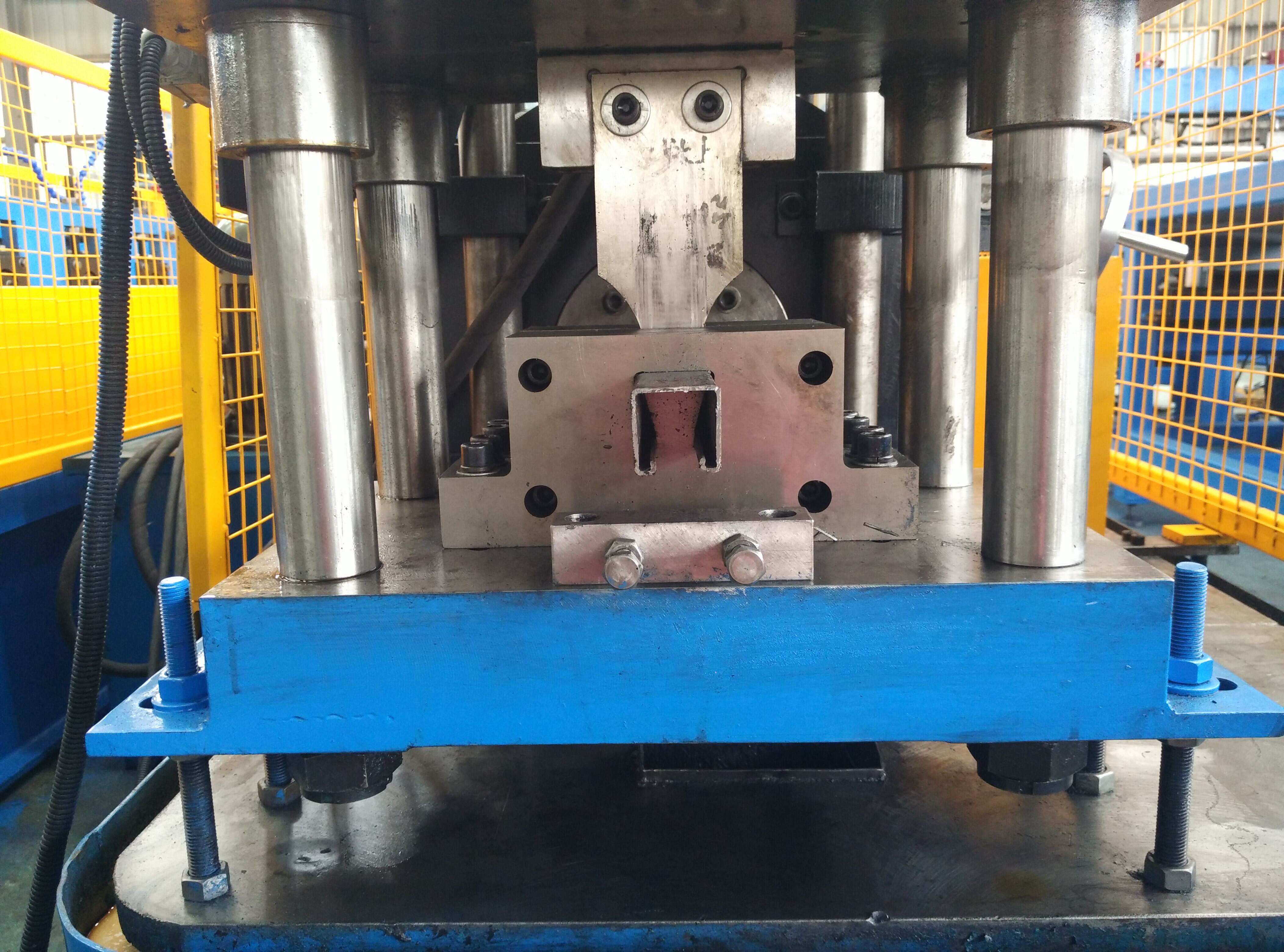

Punching die and cutting die material: D2
Motor: Siemens
Servo and control system:Mitsubishi/Siemens/Panasonic......
Layout for reference:
