Tile roofing/wall sheet RFM
Color steel tile/roofing/wall panel sheet is very important for all PEB machine, Every construction project is always in pursuit of the most reasonable, the most beautiful and the most robust design. Saibo Science & Technology have been working on that always
Description

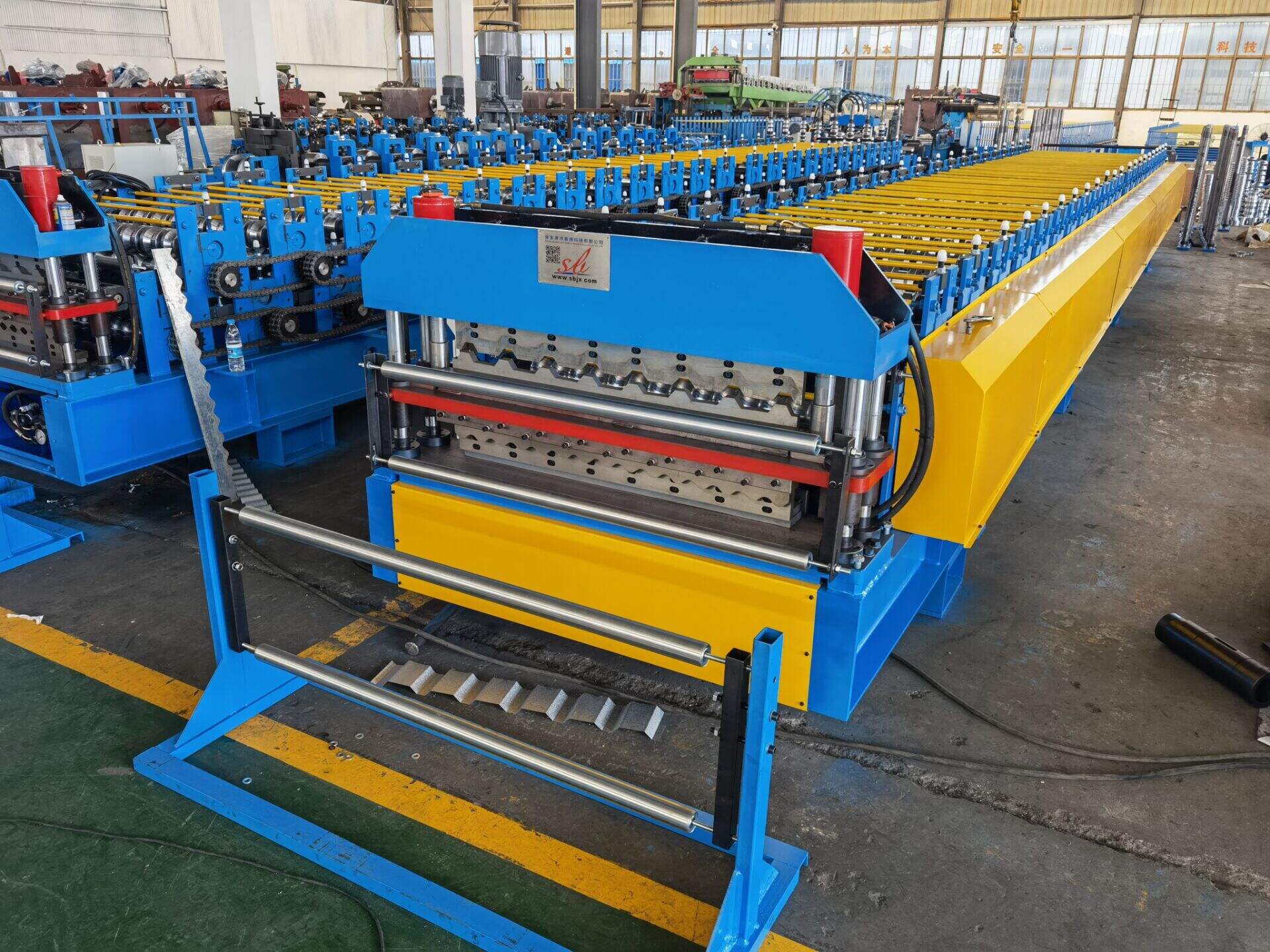

In to save customer cost and factory space limit, we develop DOUBLE LAYER roll forming machine,in same machine can make two different profiles.
Product Detail
Roofing is one of very component in PEB project, it have many different design, like roofing panel/ tile sheet/corrugation sheet and so on. It can forming PPGI/GI/PPGL/Alu and so on.
Saibo science and technology can give many different design, and very important is that we can give customer by their request. As standard design is one machine make one profile, but to consider customer cost, we can give cassette design, means one machine can make different profiles.
The forming speed also have different type, like 15m/min,30m/min, 60m/min and even more. Complete line is full automatic, include decoiler,cutting,stacking and packing.
Main technology
Heavy duty uncoiler with coil car
Full automatic set request length and quantity
By cassette design one machine can make different profiles
Hydraulic no scrap cutting

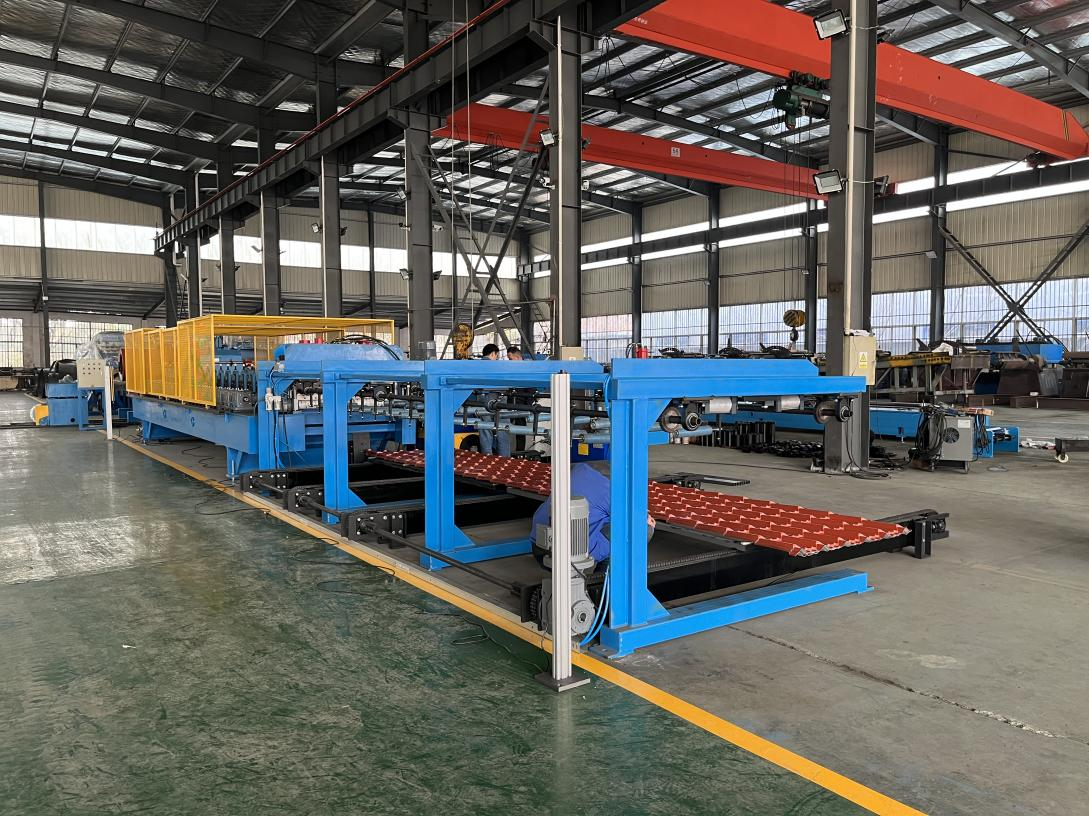

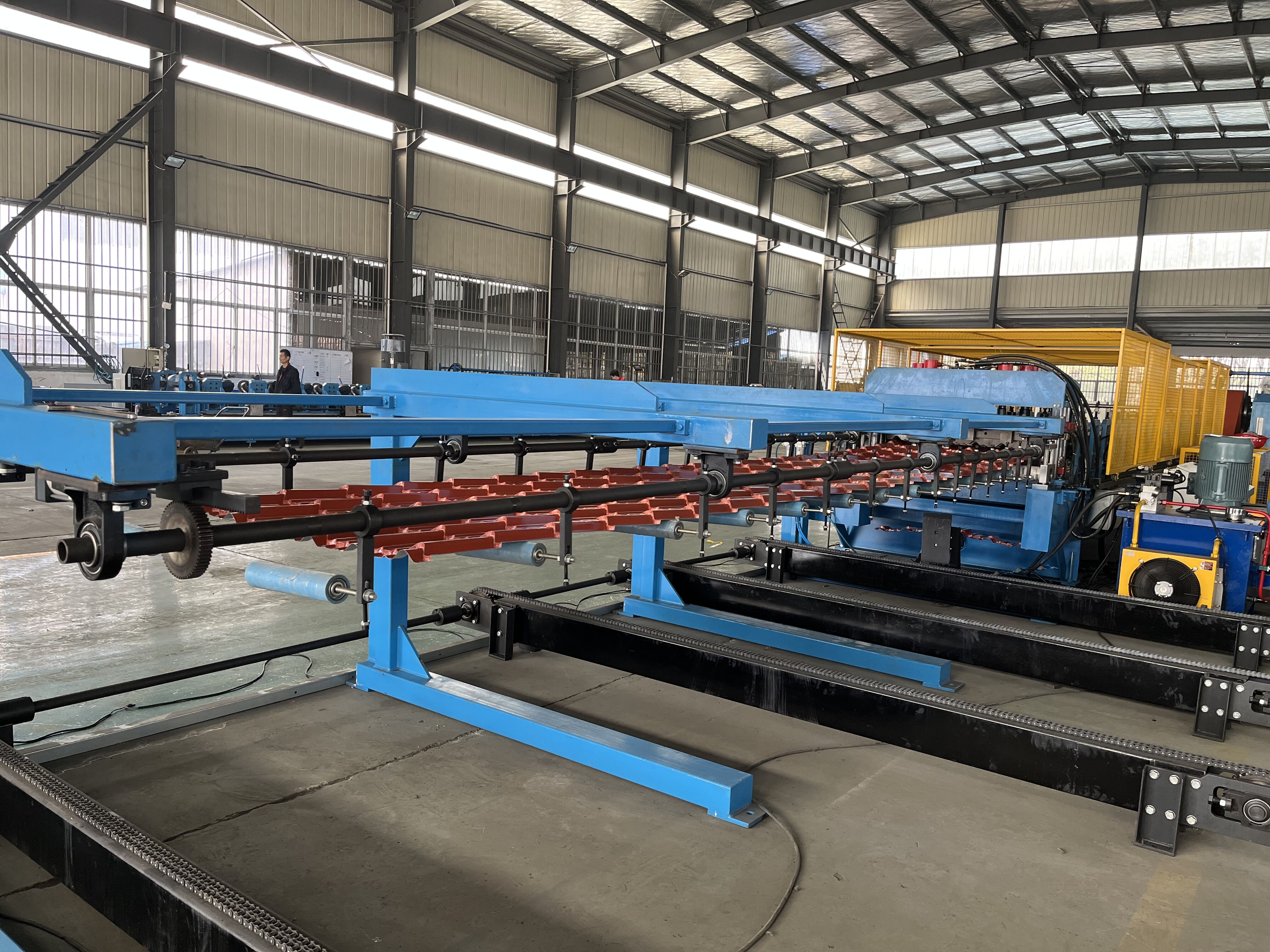

Full automatic stacking and packing
Main spec. of line:
Full line power: about 10-30W
Forming speed:0-60m/min
Forming station: about from 15-30tations

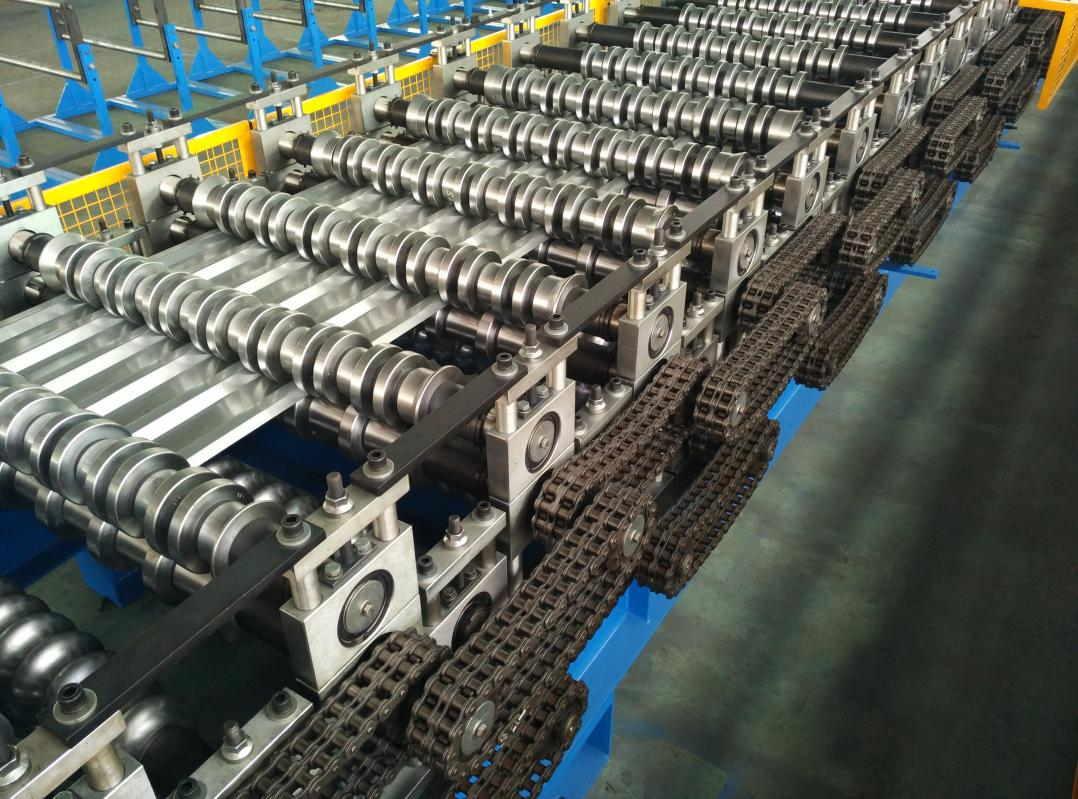

Drive by gear box or chain
Full line weight: about 10-25Tons

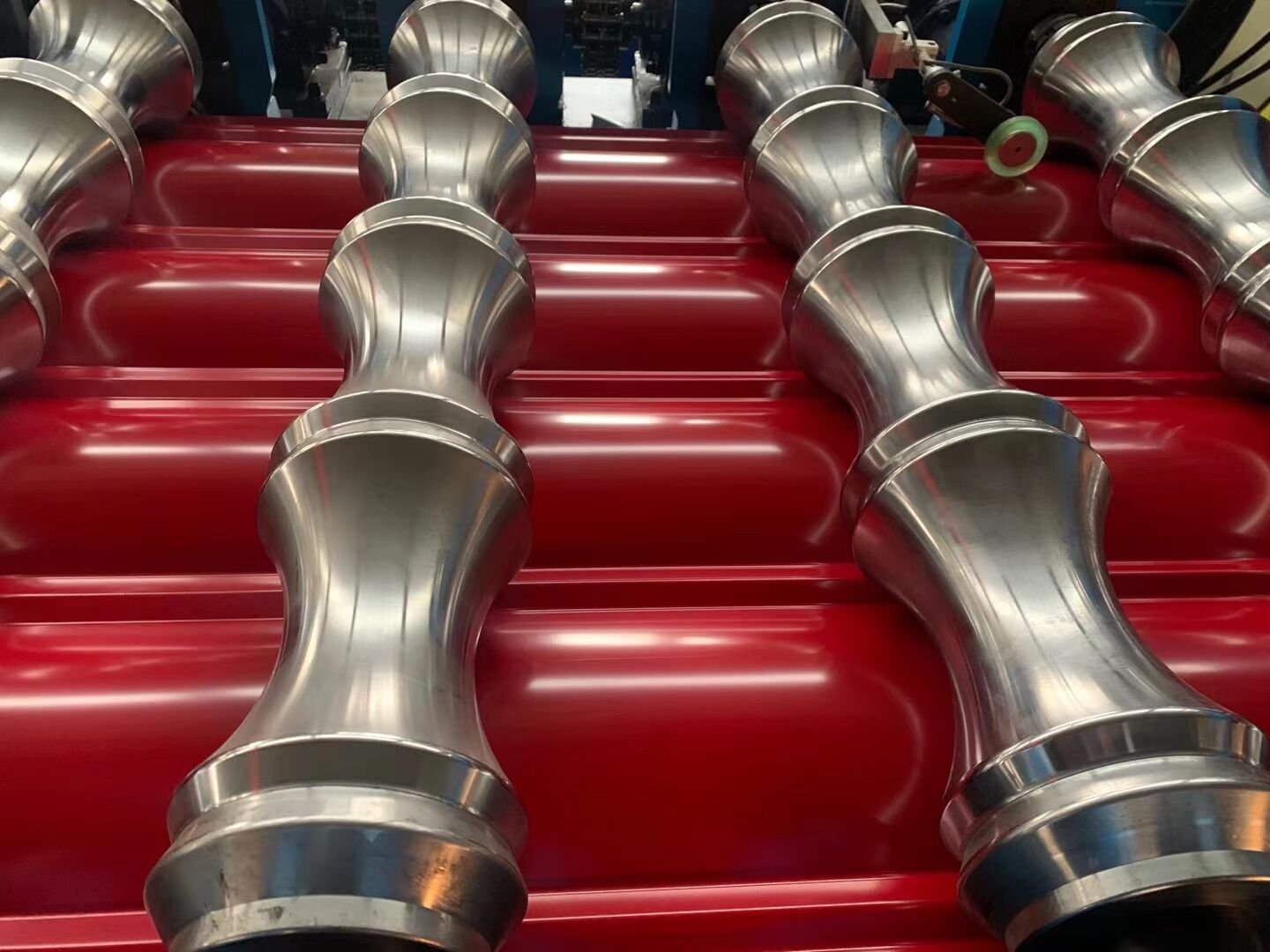

Roller material: GCR15
Cutting die material: D2
Motor: Siemens
Servo and control system:Mitsubishi/Siemens/Panasonic......
Different design Layout for reference:
