Saibo Science &Technology Machinery’s high efficiency deck roll forming lines produce roof, composite, and floor metal decks.The roll forming line can also be designed to create multiple profiles (metal deck panel, liner panel and roof/wall panel) which are roll formed and stacked in the same operation.
Is there a problem? Please contact us to serve you!
Saibo Science &Technology Machinery’s high efficiency deck roll forming lines produce roof, composite, and floor metal decks.The roll forming line can also be designed to create multiple profiles (metal deck panel, liner panel and roof/wall panel) which are roll formed and stacked in the same operation.

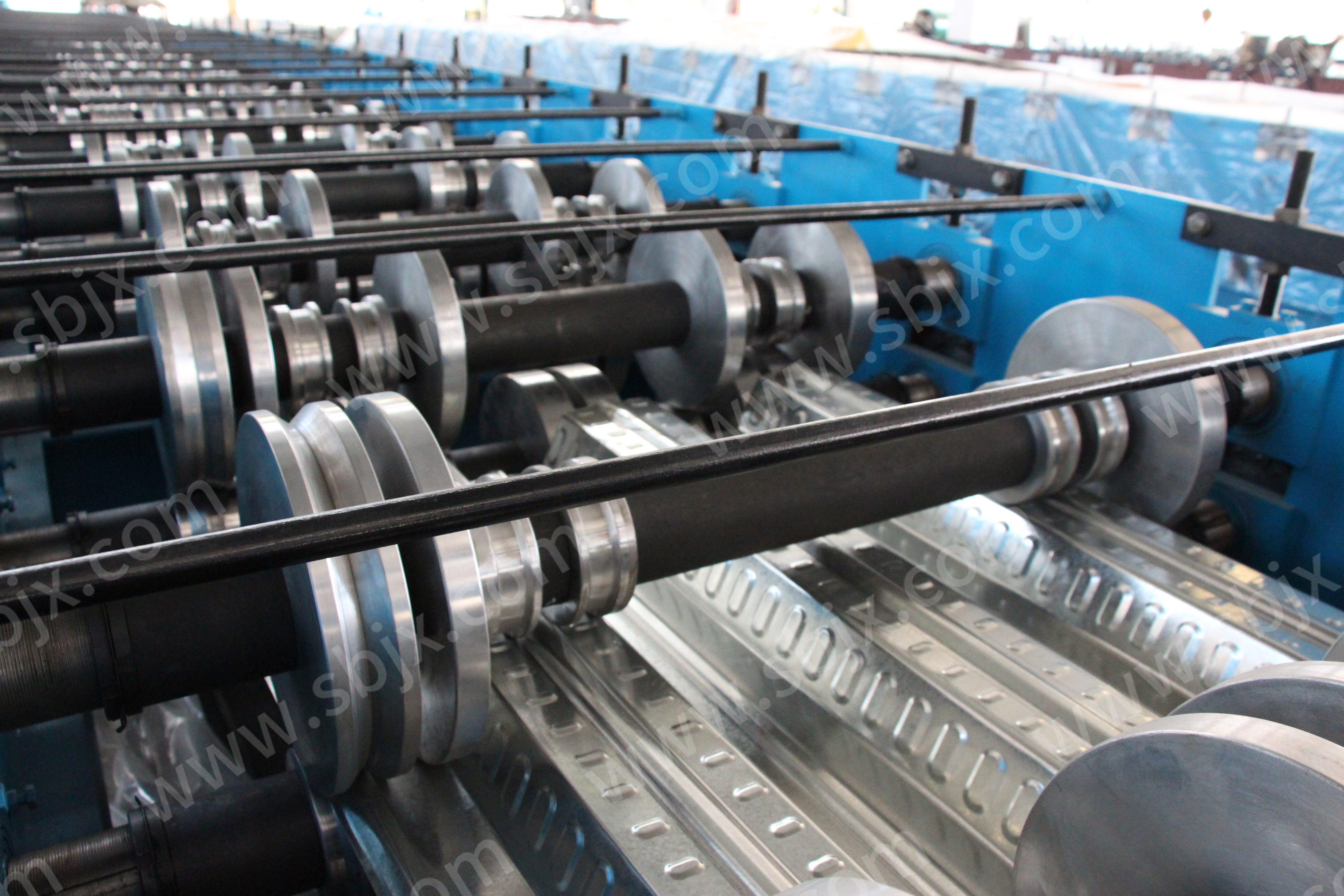

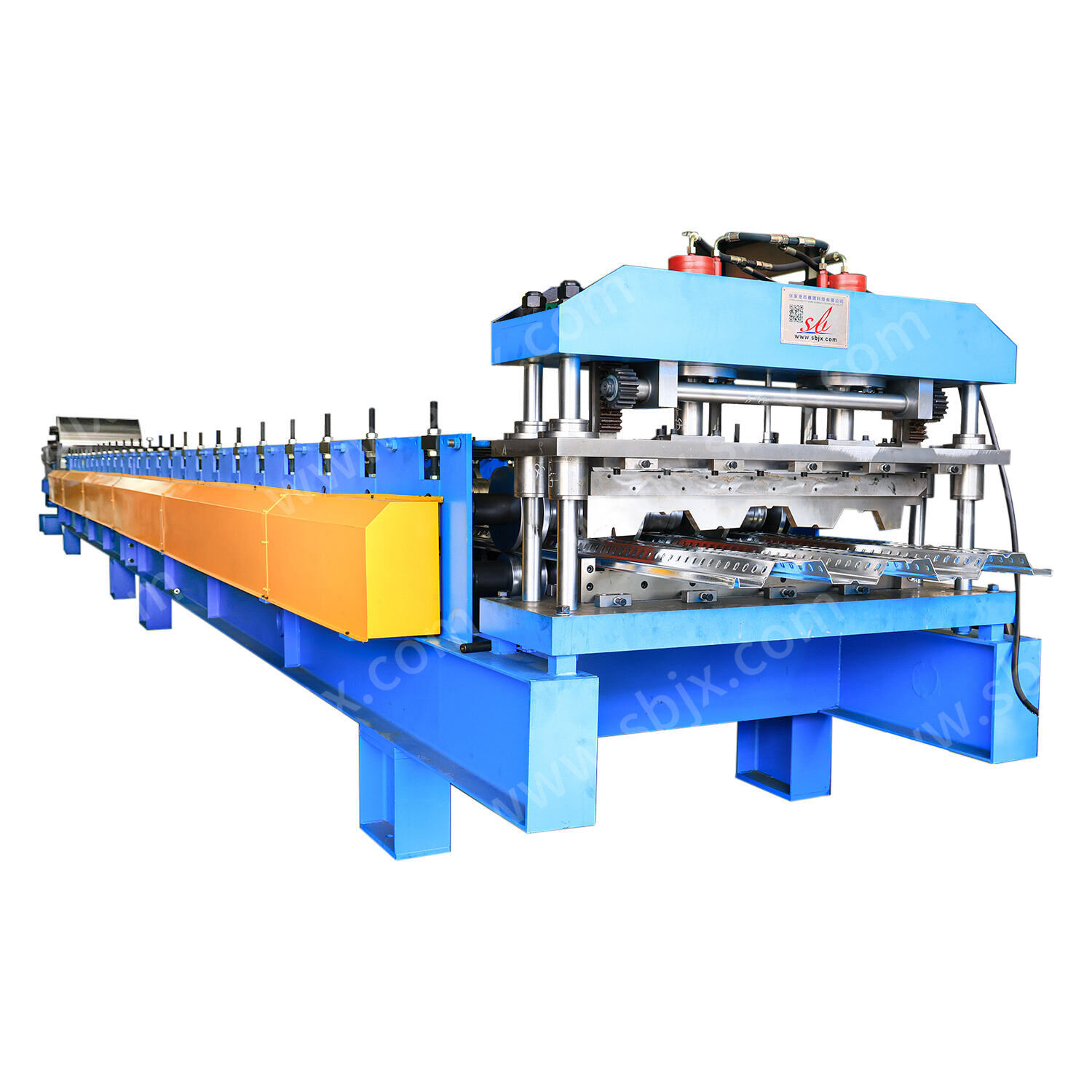

High-efficiency roll forming deck and panel line

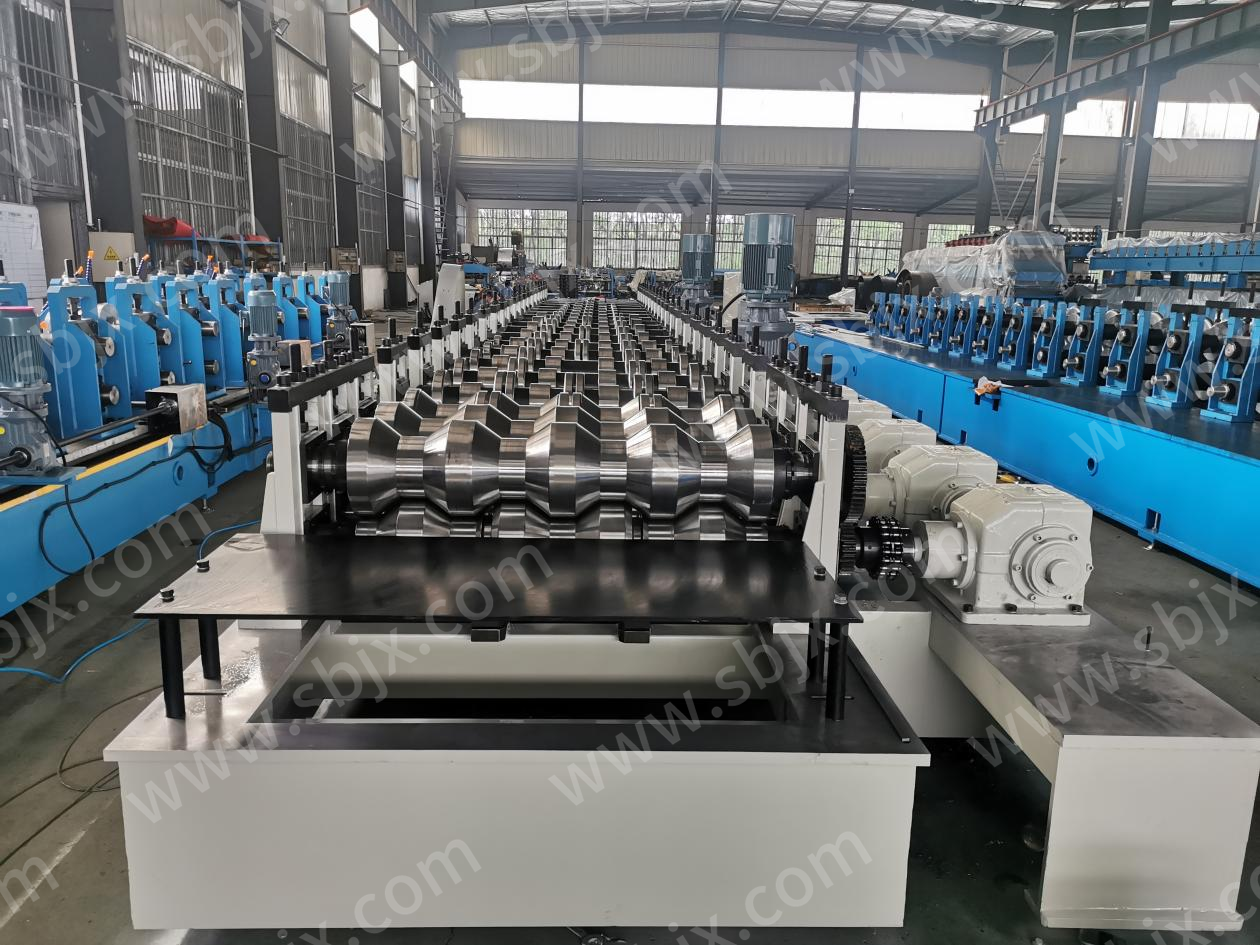

Rafted mills allow the changeover of roll tooling to be quicker, making the changing between products much faster. This design also reduces the production downtime of the line by reducing the set-ups required.
The flying cutting is designed to work in a continuous operation which increases the final line throughput.
Closed Loop Cut-Off length Control allows the roll former to achieve up to small tolerances.

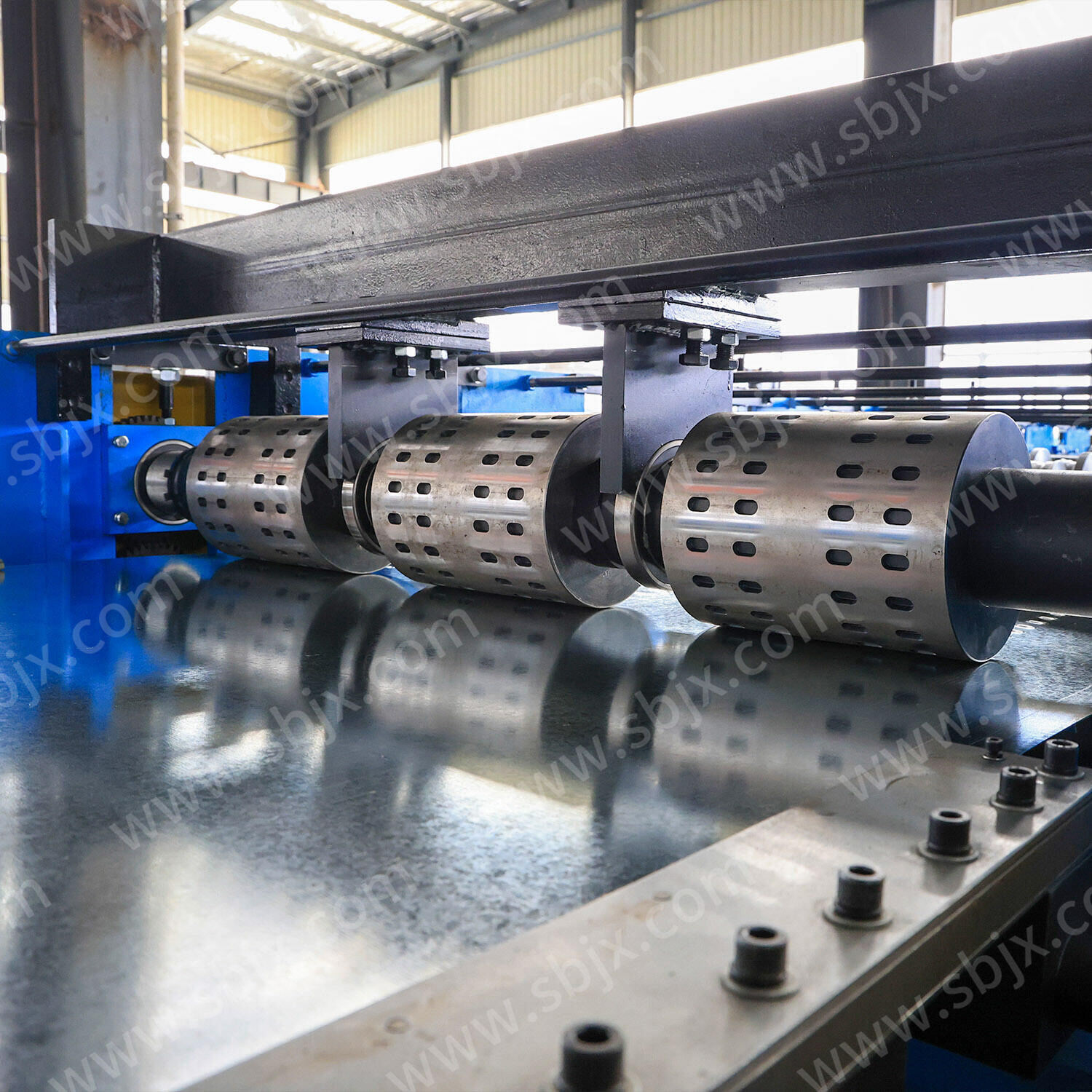

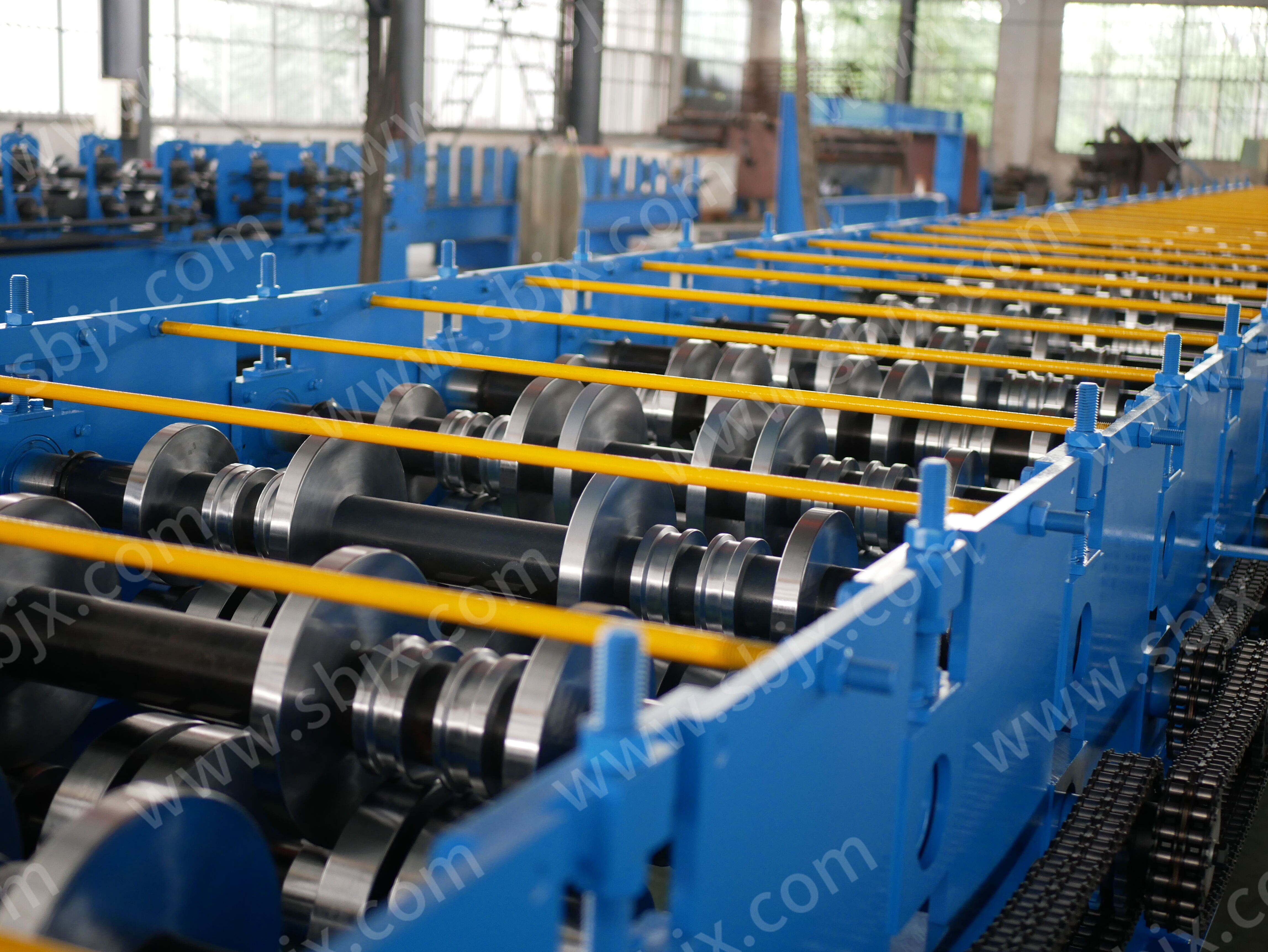

The roll former is robustly designed to have a minimum shaft deflection improving the quality of the end product.

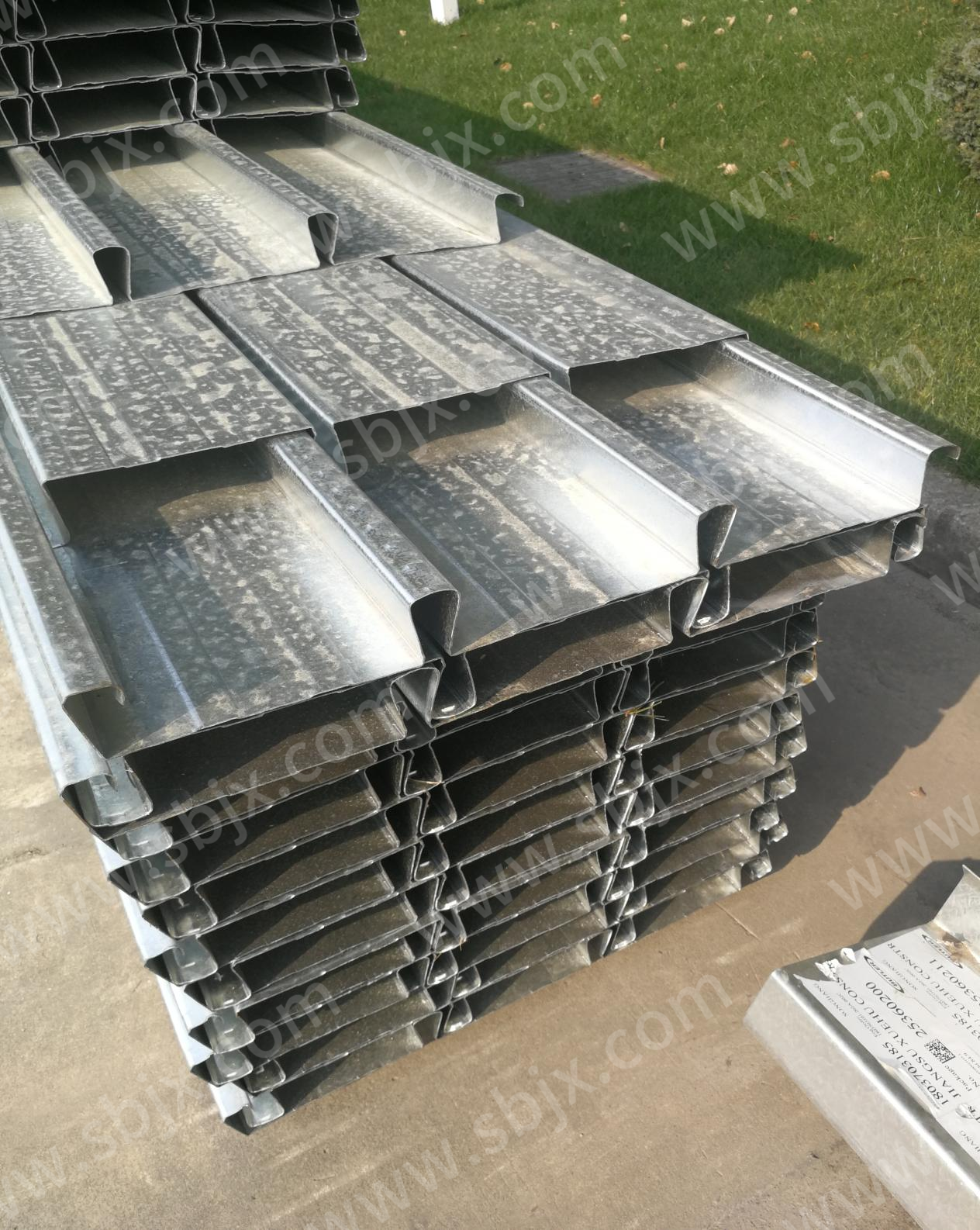

We provide different metal decking profiles as customer request
Metal deck is one of very component in PEB project, it have many different design, like YX35,YX44,YX53,YX75,YX114,YX135,YX153 (here number means the height of profile)and so on. The thickness range is from 0.6mm-2.0mm. Normal design is one machine one profile, but we can give one machine make different design, just need change the full forming section, we called its “cassette design”.

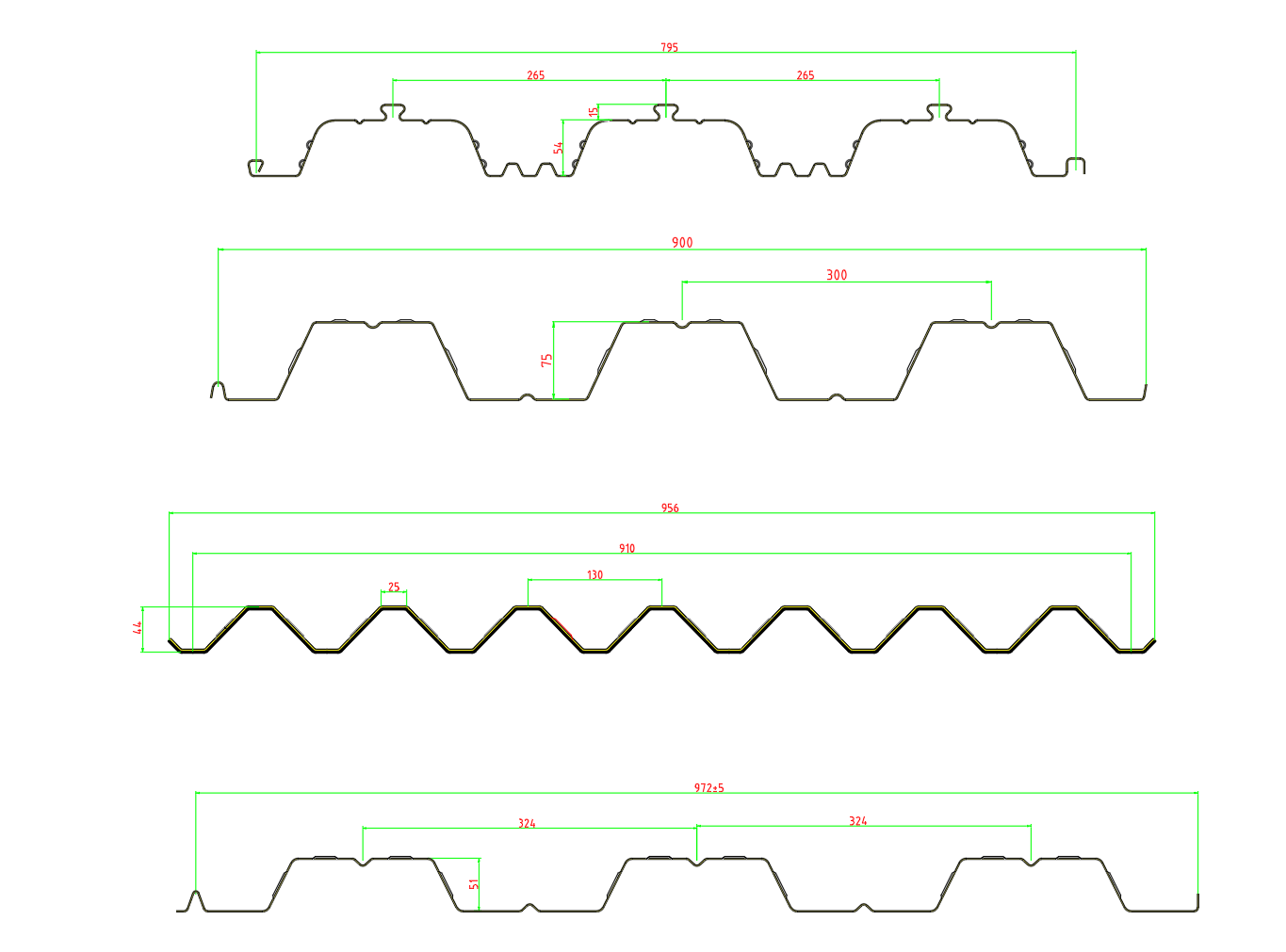

Profiles for reference:
Main technology
Heavy duty uncoiler with coil car
Full automatic set request length and quantity
By cassette design one machine can make different profiles

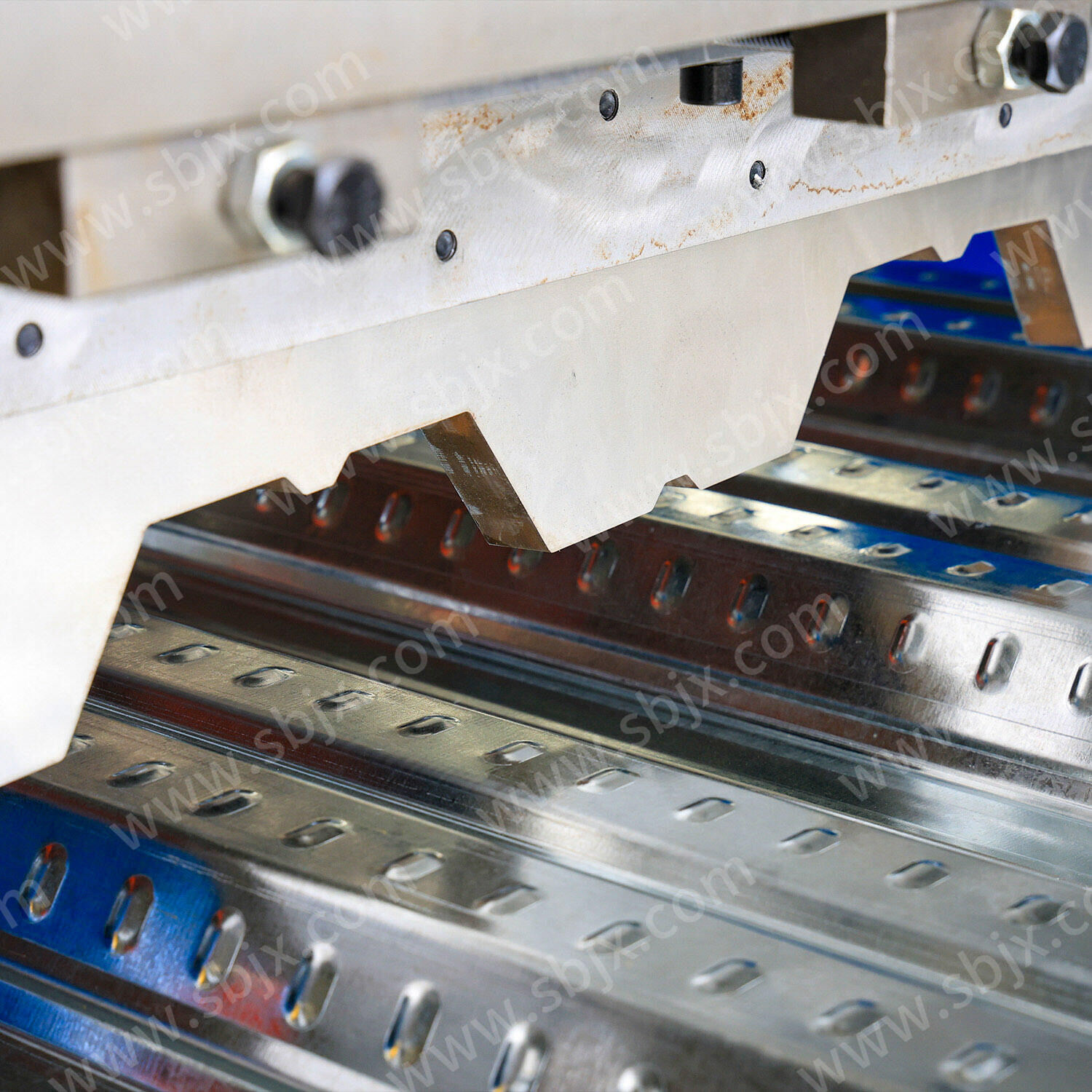

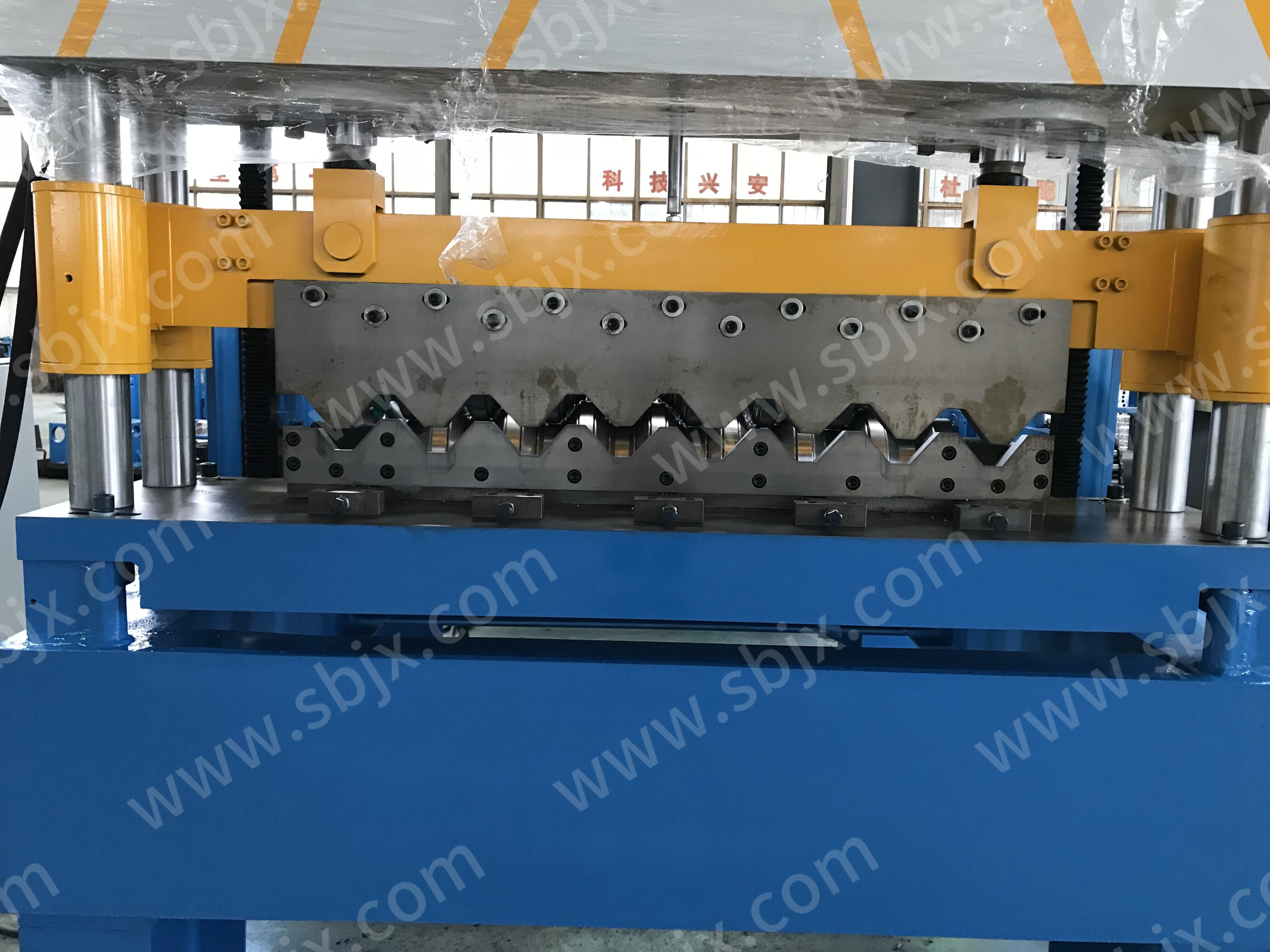

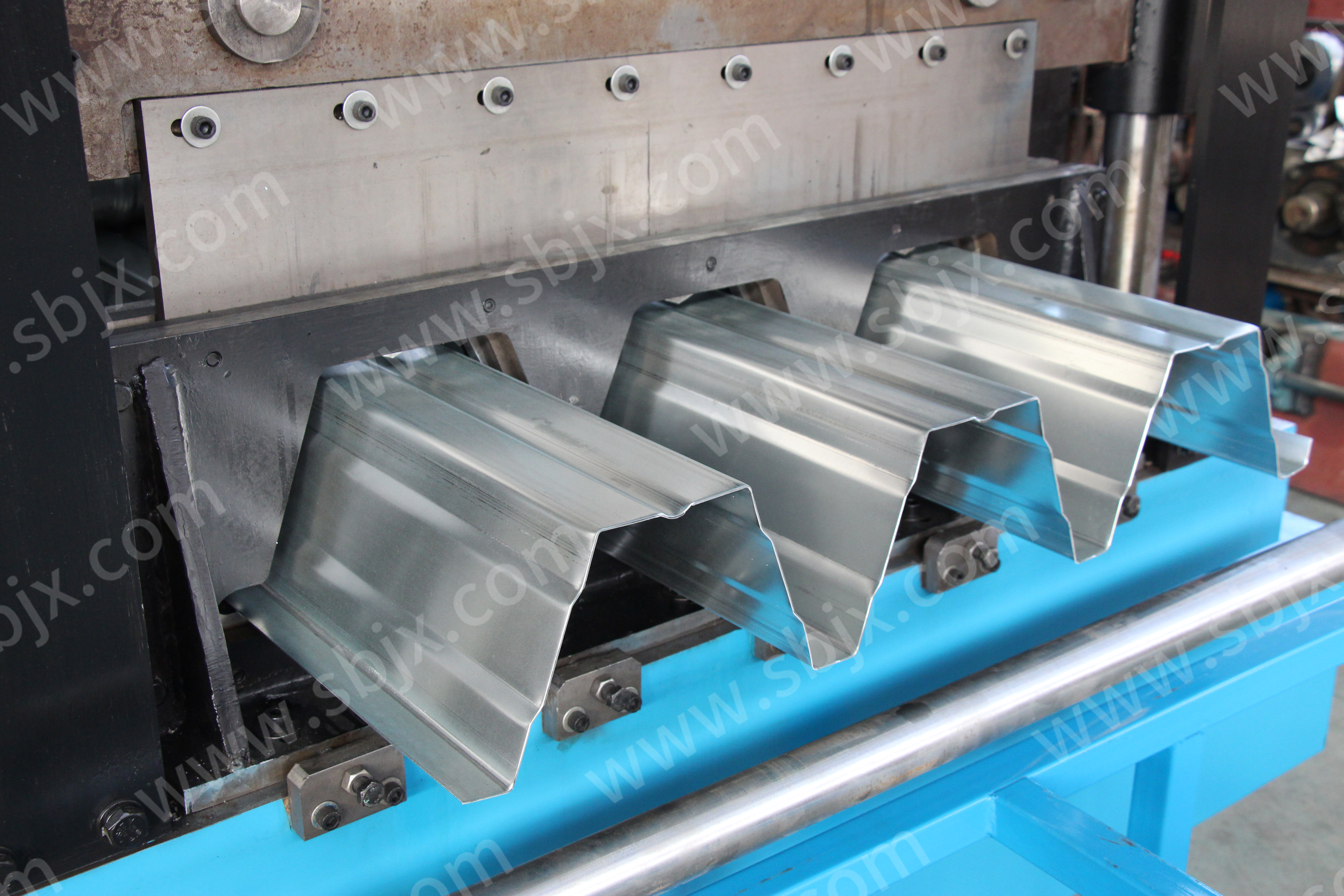

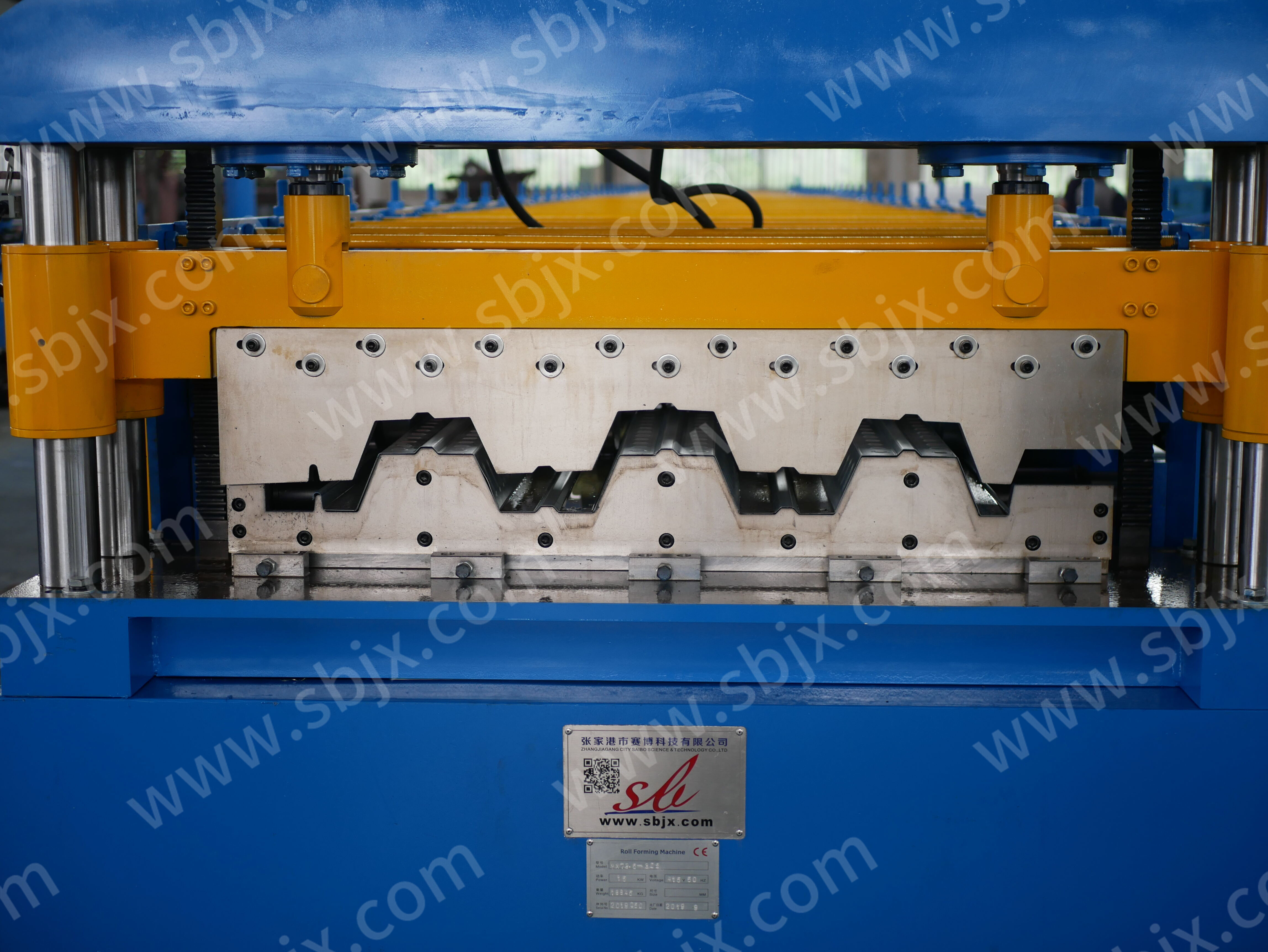

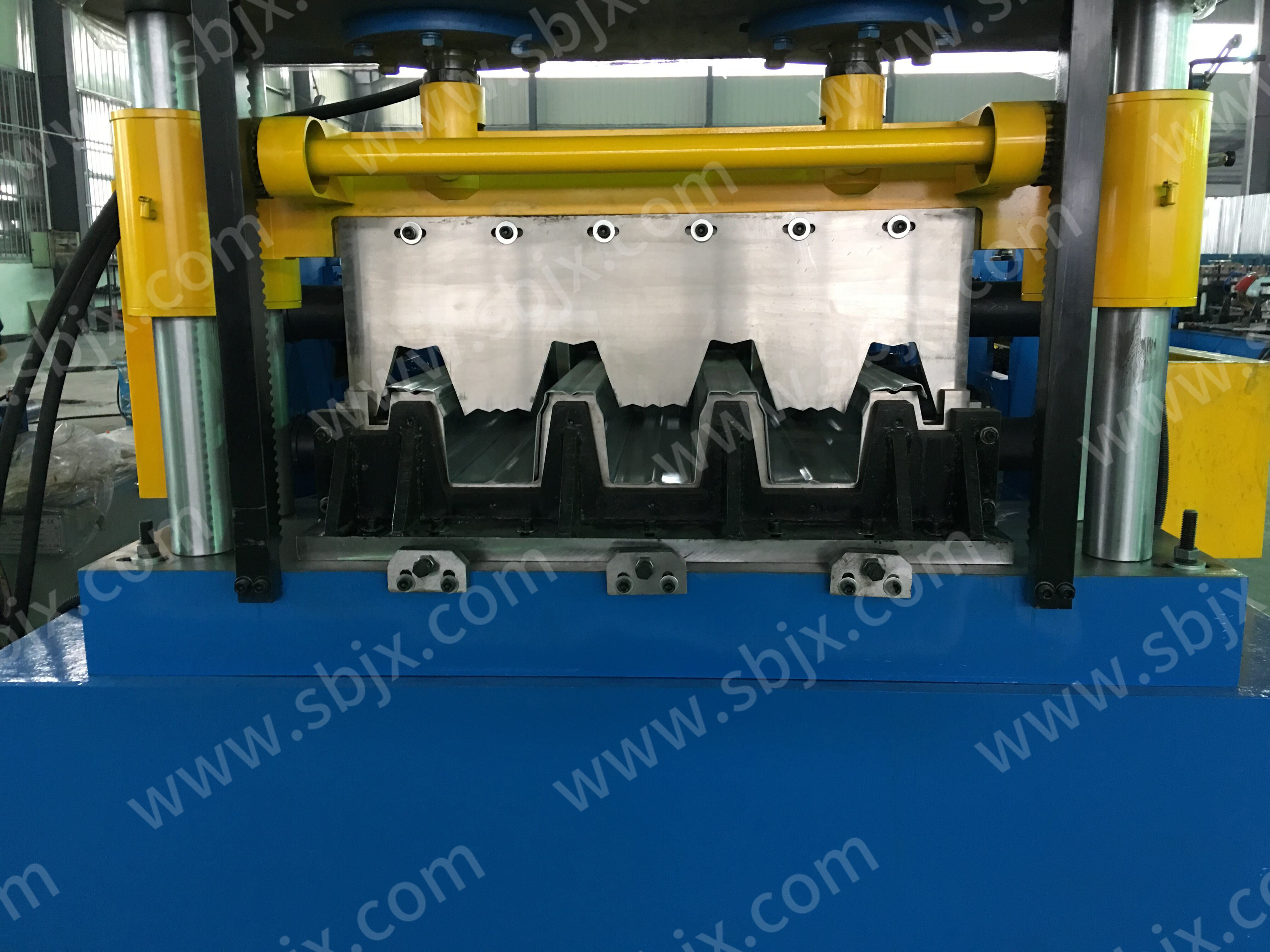

Hydraulic no scrap cutting

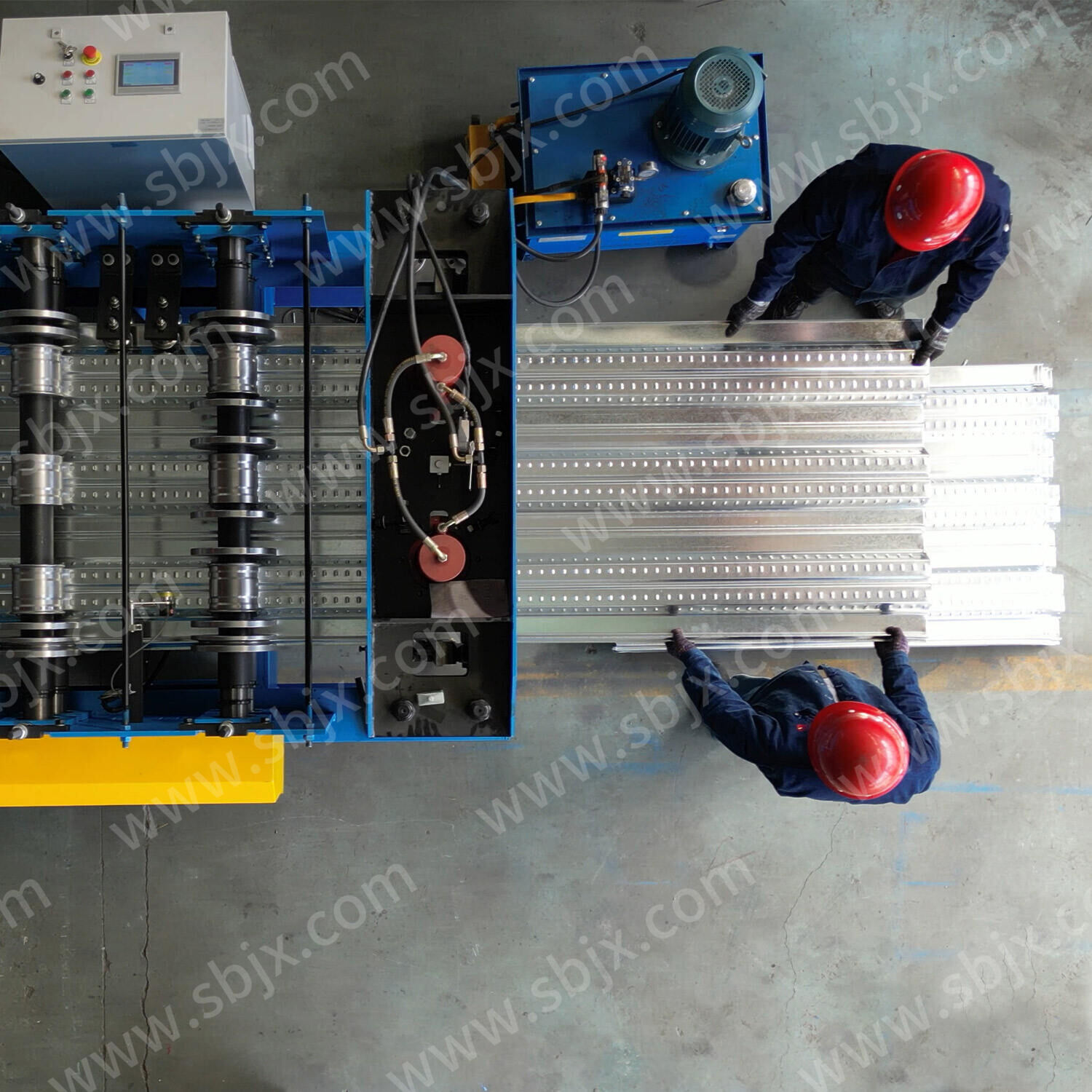

Full automatic stacking and packing
Main spec. of line:
Full line power: about 30-60KW
Forming speed:0-50m/min

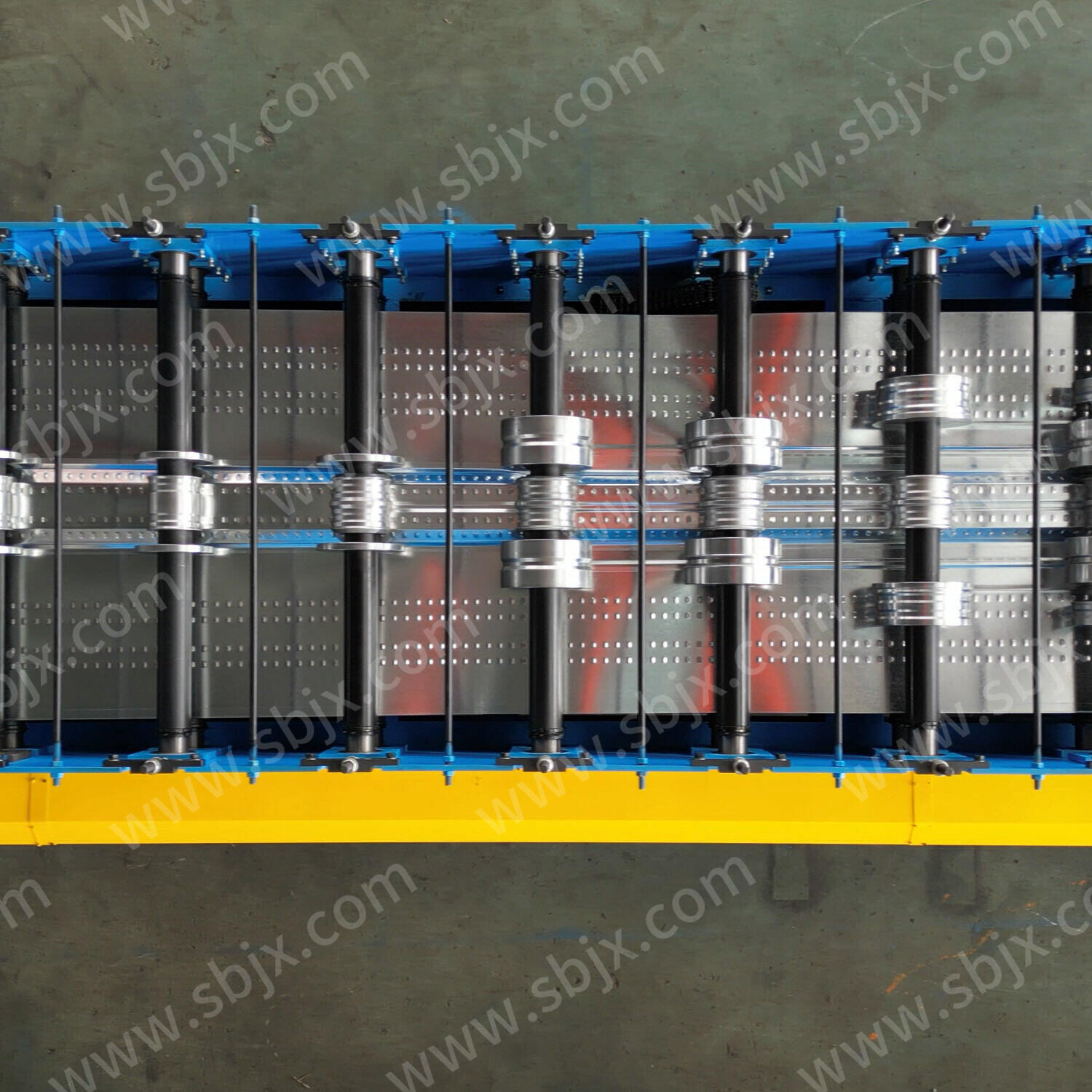

Forming station: about from 28-45 stations
Drive by gear box or chain
Full line weight: about 20-40Tons
Roller material: GCR15
Punching die and cutting die material: D2
Motor: Siemens
Servo and control system:Mitsubishi/Siemens/Panasonic......
Layout for reference:
Q: What is the price of the roll forming machine?
A: The price of the equipment depends on various factors such as profile specifications, thickness, and additional features. Could you please provide us with more details about your specific requirements, so we can provide you with an accurate price.
Q: What is the warranty period for the roll forming machine?
A: We offer a standard warranty period for our equipment, which typically ranges from one year. However, the exact warranty period may vary depending on the specific equipment model. We can provide you with detailed information regarding the warranty coverage for the equipment you are interested in.
Q: Are spare parts readily available for the equipment?
A: Yes, we ensure that spare parts for our equipment are readily available. We maintain a comprehensive inventory of spare parts to minimise downtime in case of any maintenance or repairs. Additionally, we offer after - sales support and can assist you in procuring any necessary spare parts for a roll forming machine, such as a rolling shutter forming machine, decking sheet roll forming machine, Stud and Track roll forming machine, and so on. Sure, like some rollers need for product depend on order only, it will be 3 - 7 days. We will try our best give you early.
Q: Can you provide training for operating the equipment?
A: Yes, we can provide comprehensive training for operating the equipment. Our team of experts will guide you through the installation process and provide hands - on training to ensure that you and your staff are familiar with the equipment's operation, maintenance, and safety procedures.
Q: Is installation included in the purchase price?
A: The inclusion of installation services may vary depending on the specific equipment and the location of the installation. We can discuss the installation options available and provide you with a detailed quotation that specifies whether installation is included or if it will incur additional charges.
Q: Do you offer customization options for the equipment?
A: Yes, we do offer customization options for our equipment to meet specific customer requirements. We can discuss your customization needs and work closely with our engineering team to develop a tailored solution that suits your unique application.
Q: What is the expected delivery time for the equipment?
A: The delivery time for the equipment depends on various factors, including the availability of stock and the complexity of customization, if applicable. Once we have a better understanding of your requirements, we can provide you with an estimated delivery timeframe. But as standard will be about 45 - 60 days with depend on quantity request.
Q: Can you provide references or customer testimonials for your equipment?
A: Certainly! We can provide you with references or customer testimonials upon request. Our satisfied customers can share their experiences and provide insights into the quality and performance of our equipment.
Q: What after - sales support do you offer?
A: We offer comprehensive after - sales support to ensure the smooth operation of the equipment. This includes technical assistance, troubleshooting, and maintenance services. We have a dedicated support team that can address any queries or concerns you may have even after the purchase.
