C Z Purlin Roll Forming Machine

CU-Z purlin roll forming is one of main component in PEB project, one C Z purlin roll forming machine can make both profile; change C to Z is full automatic, both profile web and flange size is also automatic adjustable by PLC system. Thickness can rolling from 1-4mm by different hardness material.

  • Description
  • Specification
  • Main Technology
  • Application
  • FAQ
Is there a problem? Please contact us to serve you!

Is there a problem? Please contact us to serve you!

CU-Z purlin roll forming is one of main component in PEB project, one C Z purlin roll forming machine can make both profile; change C to Z is full automatic, both profile web and flange size is also automatic adjustable by PLC system. Thickness can rolling from 1-4mm by different hardness material.

Inquiry

To meet customer different project,Saibo Science & Technology provide different mode in same machine. Here is our two main model size list:

  • 图片10.png
  • 图片11.png

Model 1:

Item

Minimum

Maximum

Comments

Coil Width (mm)

140

540

Web Width Plain Channel

75

300

Web Width

100

300

Flange Height

40

80

Lip Width

5

25

At maximum flange height

Lip Angle

90º

C and Z (45º optional)

Internal Radius

5

Nominal

Minimum Length

1500

With pre cut

Minimum Length

10

With post cut

Steel

1.0

3.0

Galvanised/Hotrolled/Prepainted

Model 2:

Item

Minimum

Maximum

Comments

Coil Width (mm)

140

670

Web Width Plain Channel

75

400

Web Width

100

400

Flange Height

48

130

Lip Width

10

32

At maximum flange height

Lip Angle

90º

C and Z (45º optional)

Internal Radius

5

Nominal

Minimum Length

1500

With pre cut

Minimum Length

10

With post cut

Steel

2.0

4.0

Galvanised/Hotrolled/Prepainted

In same machine, we adopt pre cutting and post cutting both option, This is the real solution to the problem of not cutting the short sheet. In this post cutting, no need change the cutters during change size, we called it “Universal cutting”

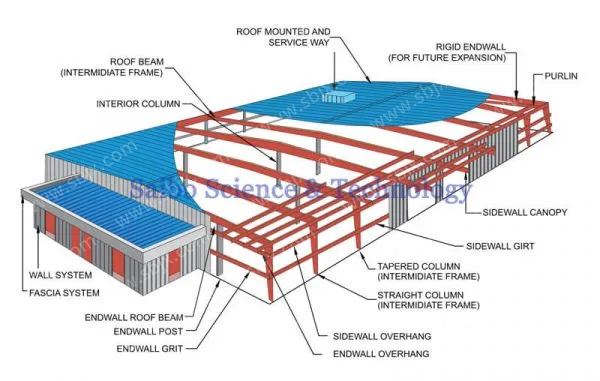

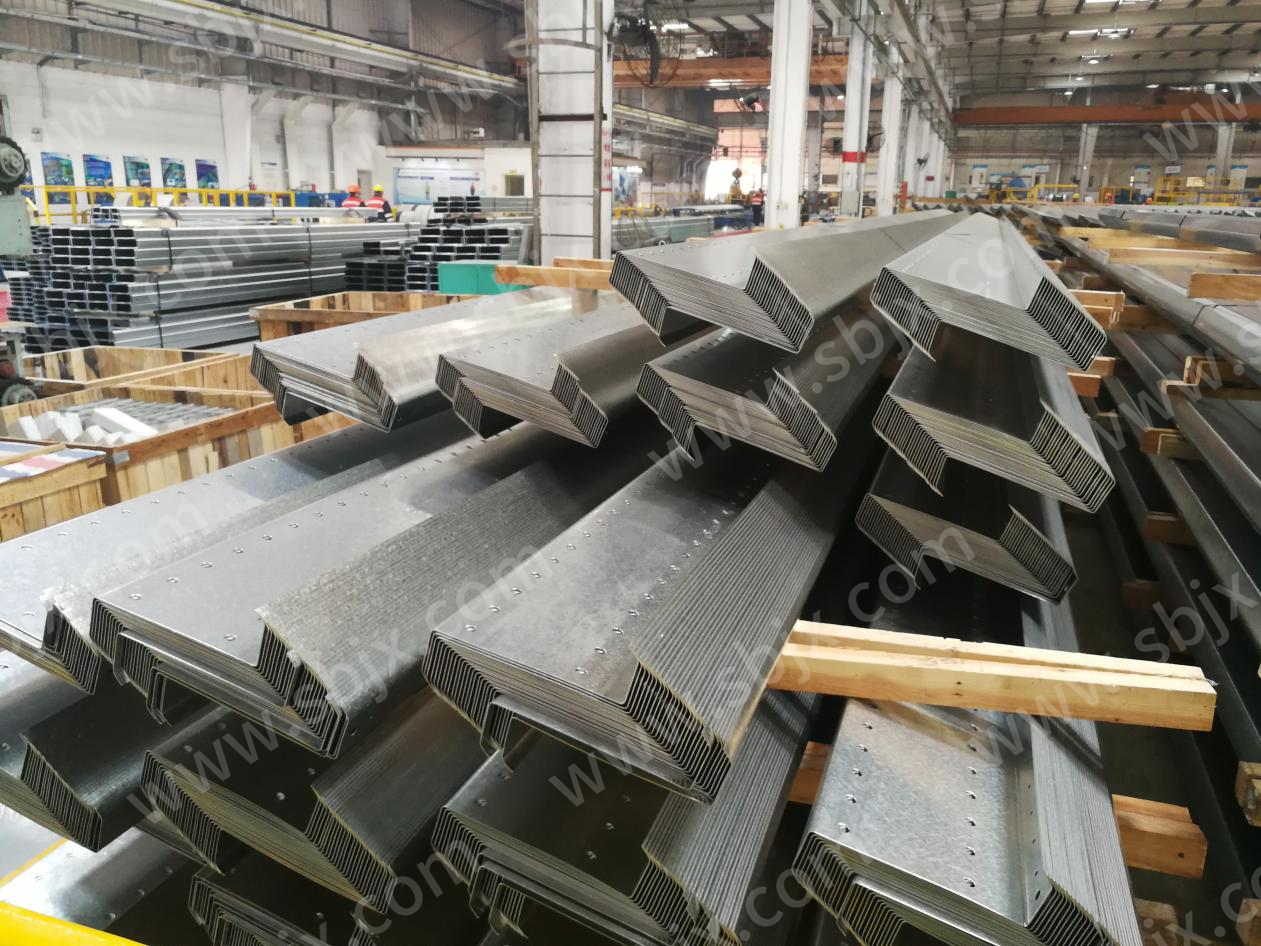

CU-Z purlin is one of main component in PEB project, one machine can make both profile; change C to Z is full automatic, both profile web and flange size is also automatic adjustable by PLC system. Thickness can rolling from 1-4mm by different hardness material.

Main technology

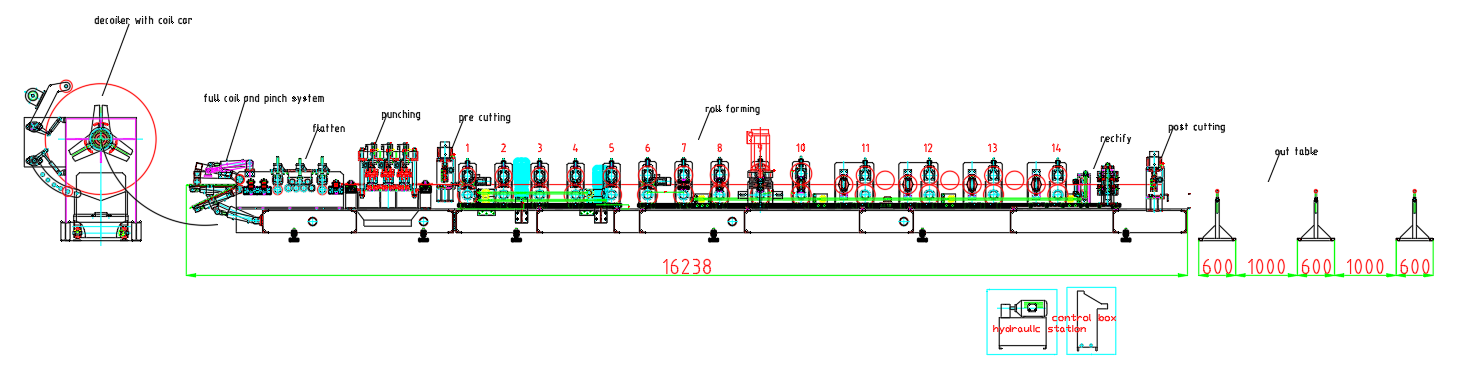

Heavy duty uncoiler with coil car

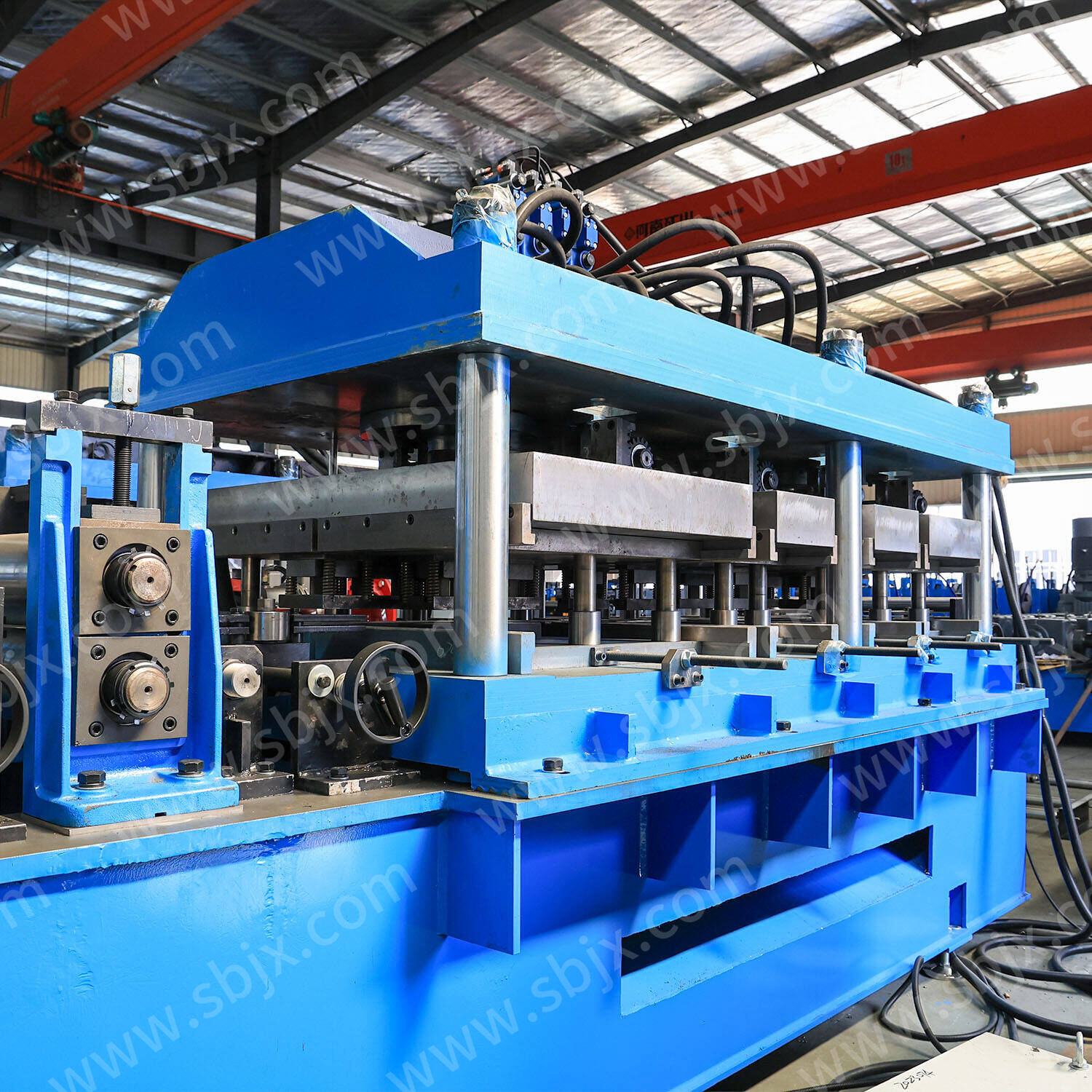

Full automatic high speed on line punching

Full automatic change C to Z and change size

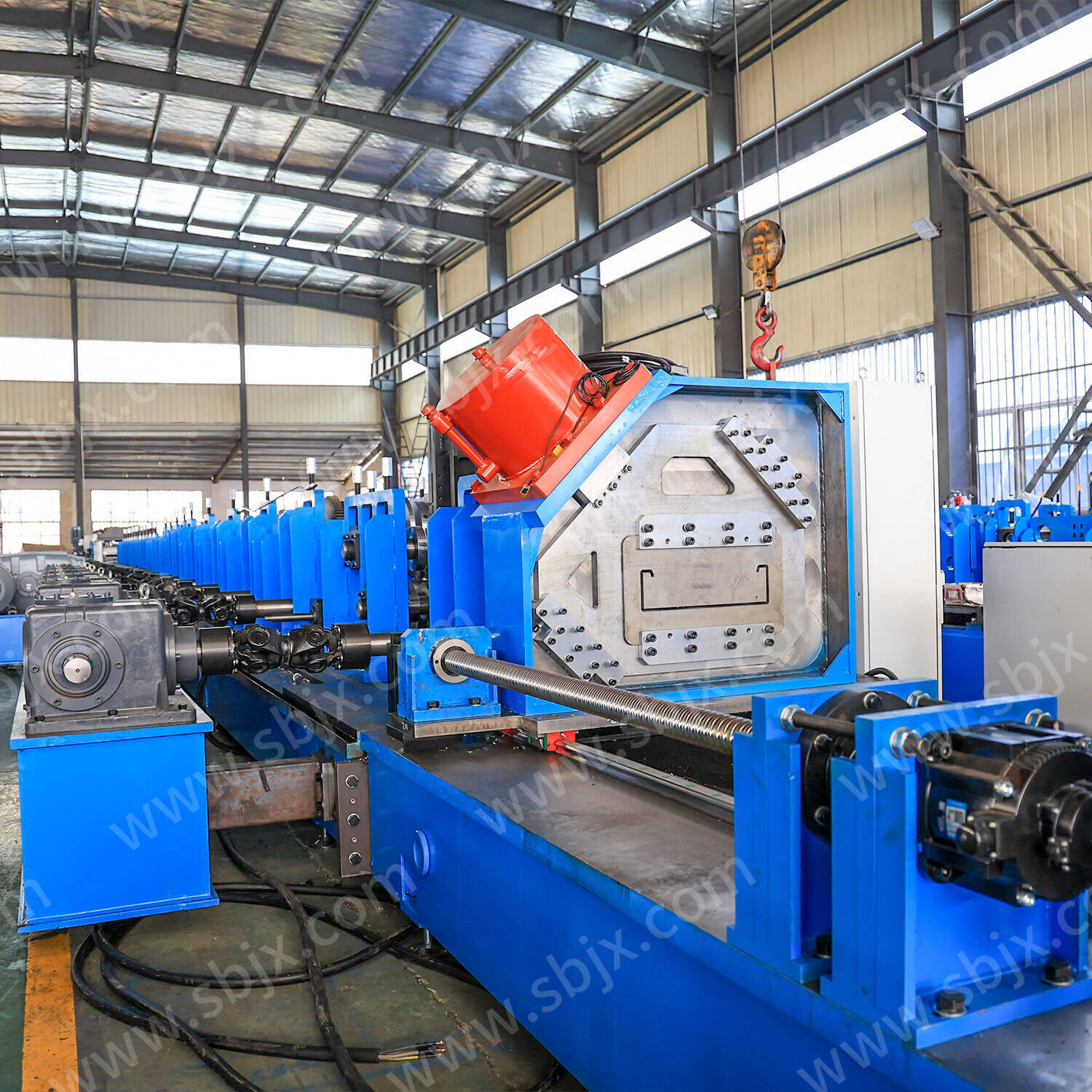

Non-stop high speed cutting

Full automatic stacking and packing

Main spec. of line:

Full line power: about 90KW

Forming speed:40-50m/min

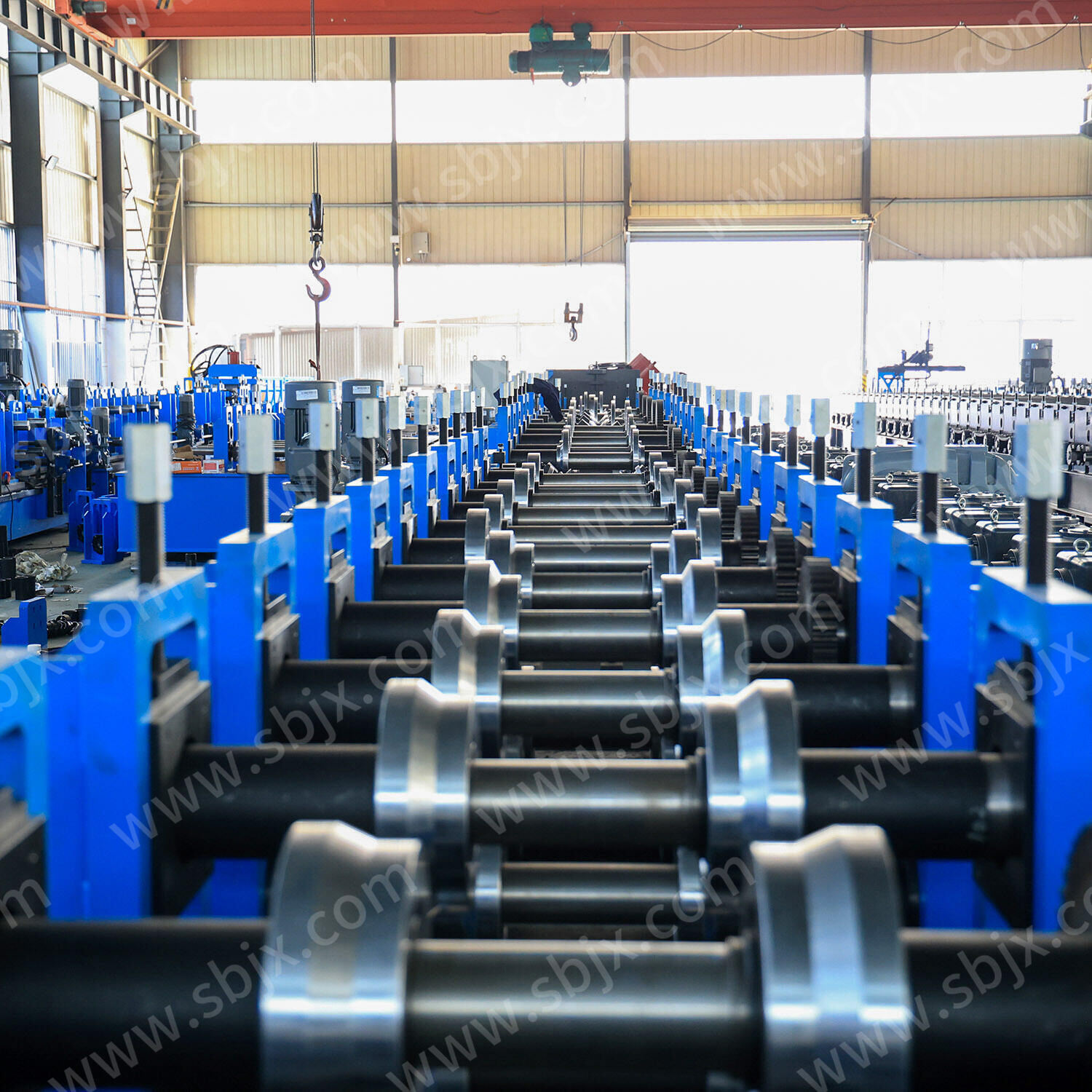

Forming station: about 20 stations

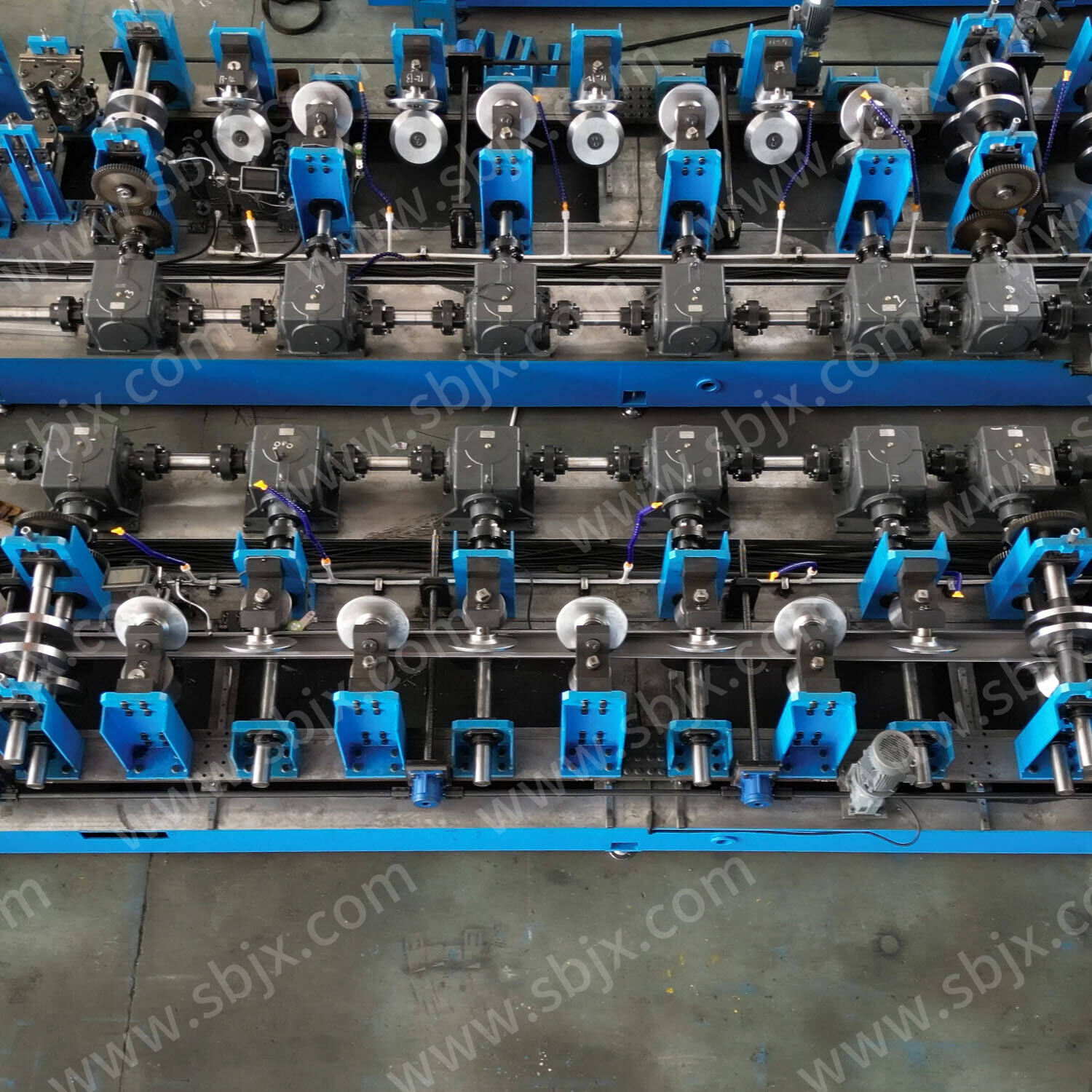

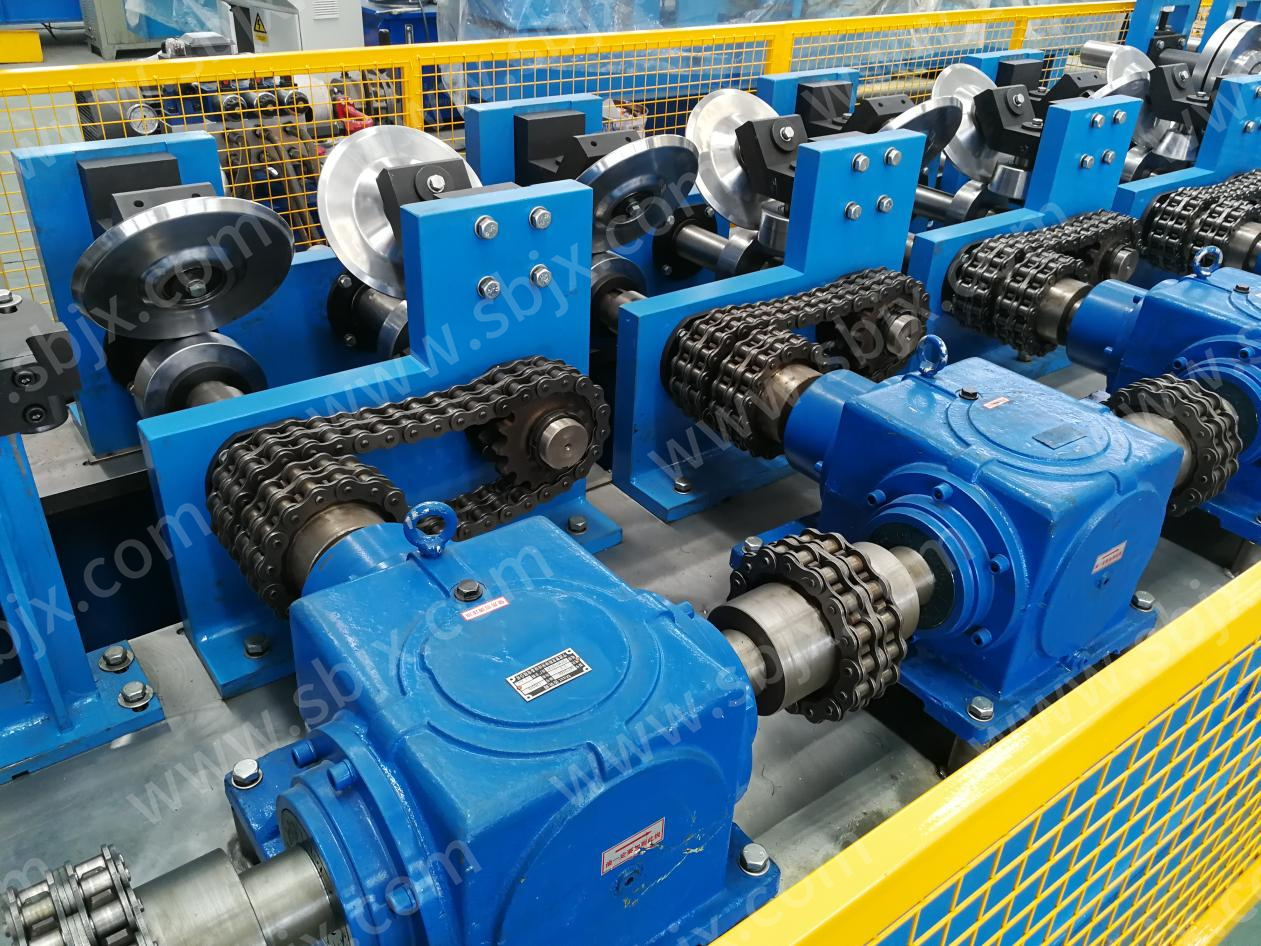

Drive by gear box of each station

Full line weight: about 30Tons

Roller material: D3

Punching die and cutting die material: D2

Motor: Siemens

Servo and control system:Mitsubishi

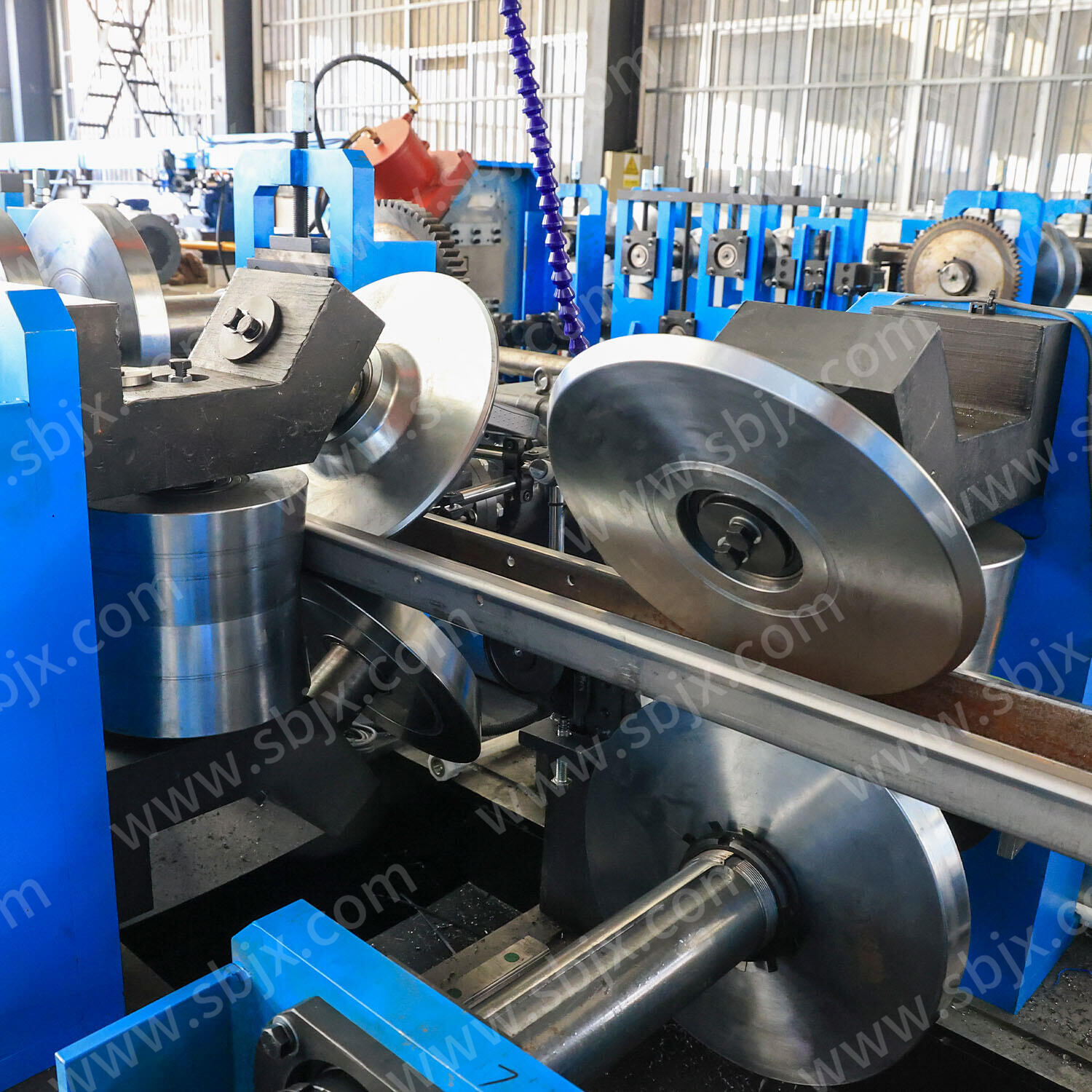

c z purlin roll forming machine-0

Q: What is the price of the roll forming machine?
A: The price of the equipment depends on various factors such as profile specifications, thickness, and additional features. Could you please provide us with more details about your specific requirements, so we can provide you with an accurate price.

Q: What is the warranty period for the roll forming machine?
A: We offer a standard warranty period for our equipment, which typically ranges from one year. However, the exact warranty period may vary depending on the specific equipment model. We can provide you with detailed information regarding the warranty coverage for the equipment you are interested in.

Q: Are spare parts readily available for the equipment?
A: Yes, we ensure that spare parts for our equipment are readily available. We maintain a comprehensive inventory of spare parts to minimise downtime in case of any maintenance or repairs. Additionally, we offer after - sales support and can assist you in procuring any necessary spare parts for a roll forming machine, such as a rolling shutter forming machine, decking sheet roll forming machine, Stud and Track roll forming machine, and so on. Sure, like some rollers need for product depend on order only, it will be 3 - 7 days. We will try our best give you early.

Q: Can you provide training for operating the equipment?
A: Yes, we can provide comprehensive training for operating the equipment. Our team of experts will guide you through the installation process and provide hands - on training to ensure that you and your staff are familiar with the equipment's operation, maintenance, and safety procedures.

Q: Is installation included in the purchase price?
A: The inclusion of installation services may vary depending on the specific equipment and the location of the installation. We can discuss the installation options available and provide you with a detailed quotation that specifies whether installation is included or if it will incur additional charges.

Q: Do you offer customization options for the equipment?
A: Yes, we do offer customization options for our equipment to meet specific customer requirements. We can discuss your customization needs and work closely with our engineering team to develop a tailored solution that suits your unique application.

Q: What is the expected delivery time for the equipment?
A: The delivery time for the equipment depends on various factors, including the availability of stock and the complexity of customization, if applicable. Once we have a better understanding of your requirements, we can provide you with an estimated delivery timeframe. But as standard will be about 45 - 60 days with depend on quantity request.

Q: Can you provide references or customer testimonials for your equipment?
A: Certainly! We can provide you with references or customer testimonials upon request. Our satisfied customers can share their experiences and provide insights into the quality and performance of our equipment.

Q: What after - sales support do you offer?
A: We offer comprehensive after - sales support to ensure the smooth operation of the equipment. This includes technical assistance, troubleshooting, and maintenance services. We have a dedicated support team that can address any queries or concerns you may have even after the purchase.
