Post channel is one of a component of Road crash barrier, there are many shapes of the post channel, like C shape, U shape and M shape, and the forming thickness can up to 5.5mm.
Is there a problem? Please contact us to serve you!
Post channel is one of a component of Road crash barrier, there are many shapes of the post channel, like C shape, U shape and M shape, and the forming thickness can up to 5.5mm.

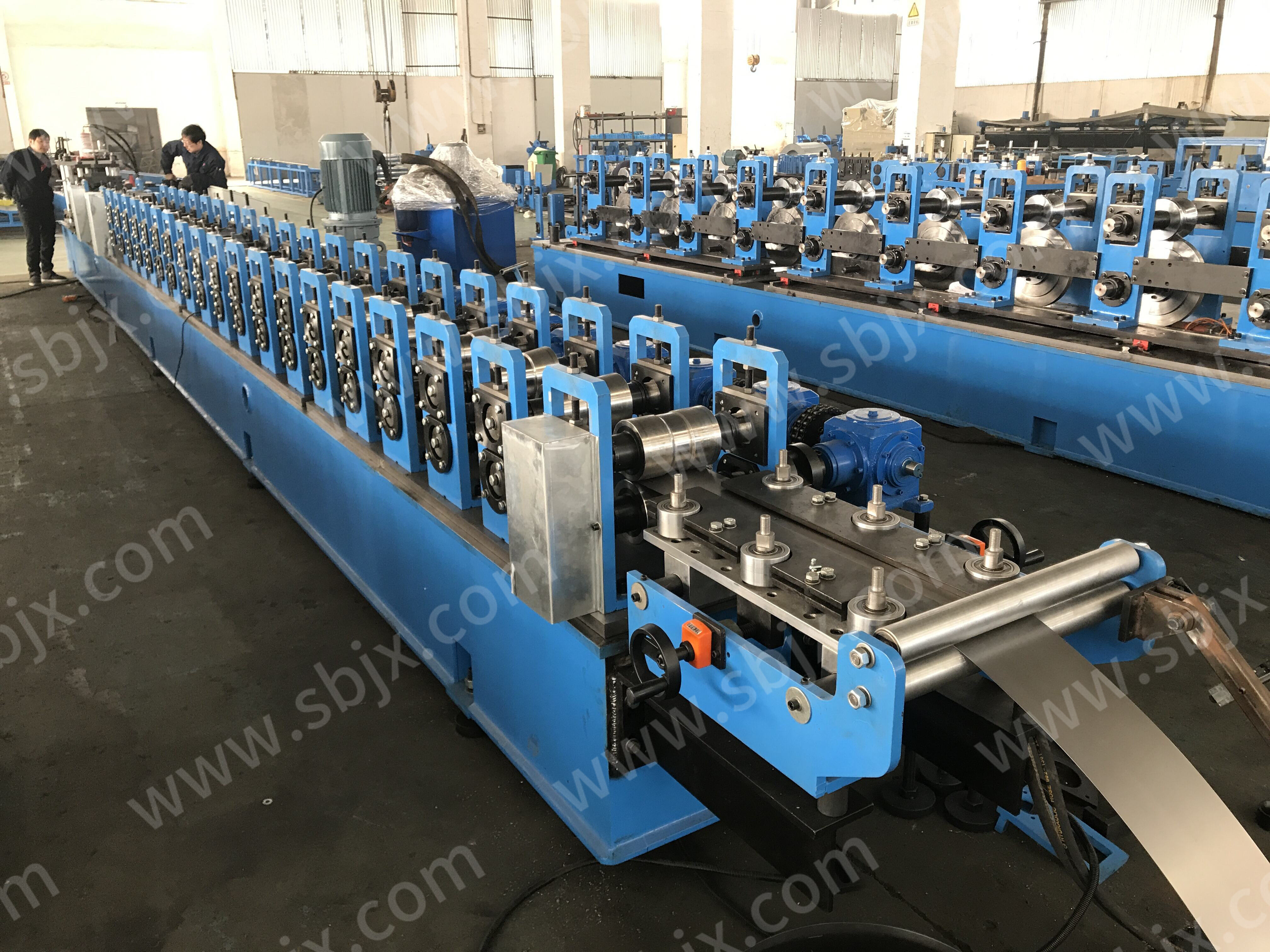

Post channel is one of a component of Road crash barrier, there are many shapes of the post channel, like C shape, U shape and M shape, and the forming thickness can up to 5.5mm. Machine adopts servo feeding& punching and track cutting to make the fast speed. The whole line adopt famous motor and VFD brand. According to the customer request, machine also can make cassette design with Z profile to save the customer cost.
Main technology
Heavy duty uncoiler with coil car
Independent flatten system
Serco feeding& punching to make holes
By cassette design to make different profiles
Gear box with coupling drive
Non-stop high speed cutting
Main spec. of line:
Full line power: about 90KW
Full line speed: 10m/min
Forming station: about 9 stations
Drive by gear box of each station
Full line weight: about 30Tons
Roller material: D2
Punching die and cutting die material: D2
Motor: Siemens
Servo and control system: Siemens/ Mitsubishi
Full line uses motion controller (MC4N-ECAT P901) and a remote control system
Layout for reference:
| Full line power | about 90KW |
| Forming speed | 10m/min |
| Forming station | about 9 stations |
| Drive | Drive by gear box of each station |
| Full line weight | about 30Tons |
| Roller material | D2 |
| Punching die and cutting die material | D2 |
| Motor | Siemens/ Mitsubishi |
| Full line uses motion controller (MC4N-ECAT P901) and a remote control system | |
The price of the equipment depends on various factors such as profile specifications, thickness, and additional features. Could you please provide us with more details about your specific requirements, so we can provide you with an accurate price?
We offer a standard warranty period for our equipment, which typically ranges from one year. However, the exact warranty period may vary depending on the specific equipment model. We can provide you with detailed information regarding the warranty coverage for the equipment you are interested in.
Yes, we ensure that spare parts for our equipment are readily available. We maintain a comprehensive inventory of spare parts to minimize downtime in case of any maintenance or repairs. Additionally, we offer after-sales support and can assist you in procuring any necessary spare parts in a timely manner. Like CZ purlin roll forming machine, decking sheet roll forming machines, Stud and Track roll forming machines and so on. Sure, like some rollers need produce depend on order only. It will take 3-7 days. We will try best give you early.
Yes, we provide comprehensive training for operating the equipment. Our team of experts will guide you through the installation process and provide hands-on training to ensure that you and your staff are familiar with the equipment’s operation, maintenance, and safety procedures.
The inclusion of installation services may vary depending on the specific equipment and the location of the installation. We can discuss the installation options available and provide you with a detailed quotation that specifies whether installation is included or if it will incur additional charges.
Yes, our equipment can be customized to meet specific customer requirements. We can discuss your customization needs and work closely with our engineering team to develop a tailored solution that suits your unique application.
The delivery time for the equipment depends on various factors, including the availability of stock and the complexity of customization, if applicable. Once we have a better understanding of your requirements, we can provide you with an estimated delivery time. But as a standard will be about 45-60 days which depend on your quantity.
Certainly! We can provide you with references or customer testimonials upon request. Our satisfied customers can share their experiences and provide insights into the quality and performance of our equipment.
We offer comprehensive after-sales support to ensure the smooth operation of the equipment. This includes technical assistance, troubleshooting, and maintenance services. We have a dedicated support team that can address any queries or concerns you may have even after the purchase.
