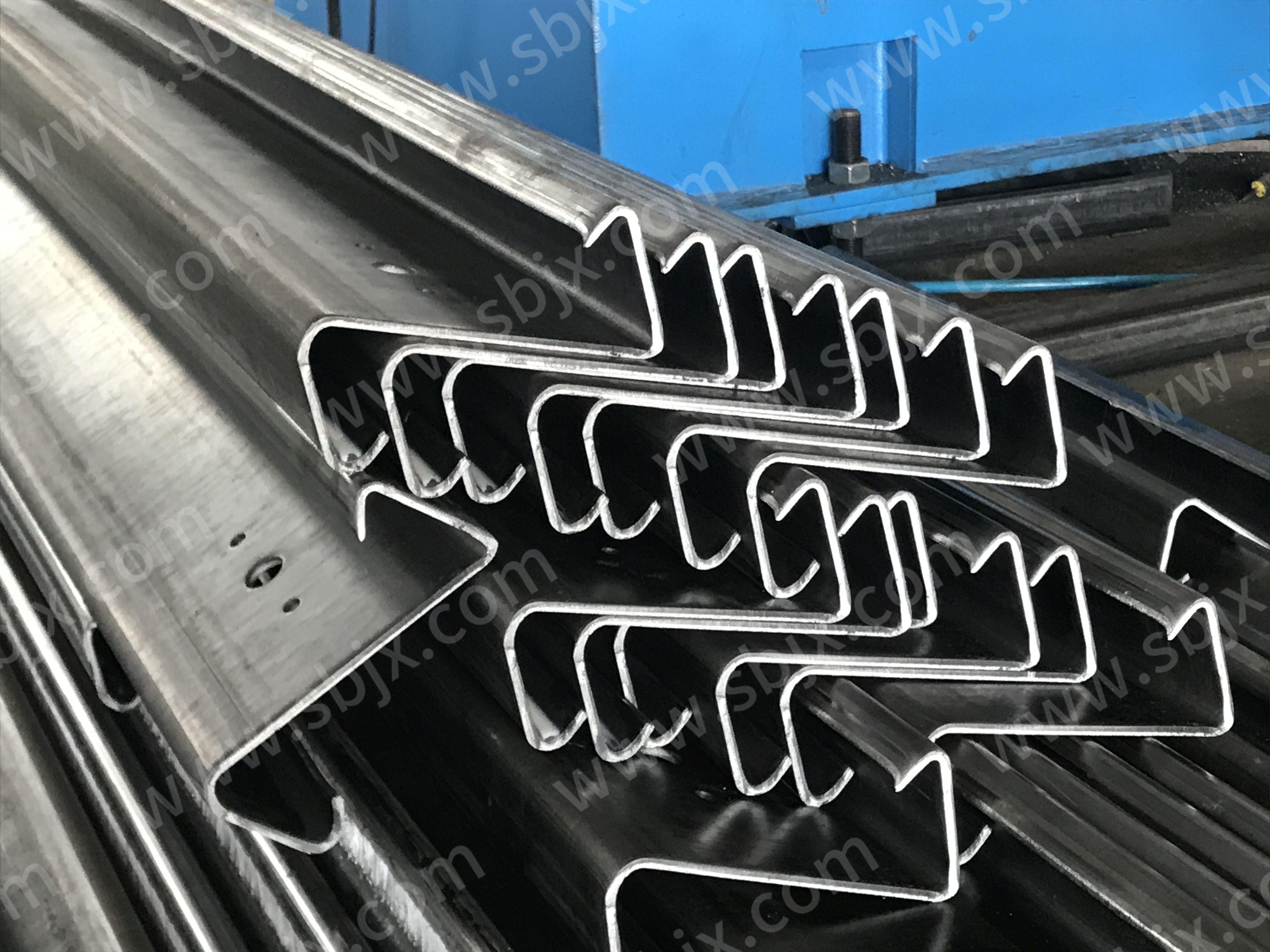

As an important part of the city road, we have given many reasonable structures, among which Z-type is the most popular. We adopted the way of online punching, LOGO punching and tracking cutting, which greatly met the needs of customers.
Is there a problem? Please contact us to serve you!
As an important part of the city road, we have given many reasonable structures, among which Z-type is the most popular. We adopted the way of online punching, LOGO punching and tracking cutting, which greatly met the needs of customers.

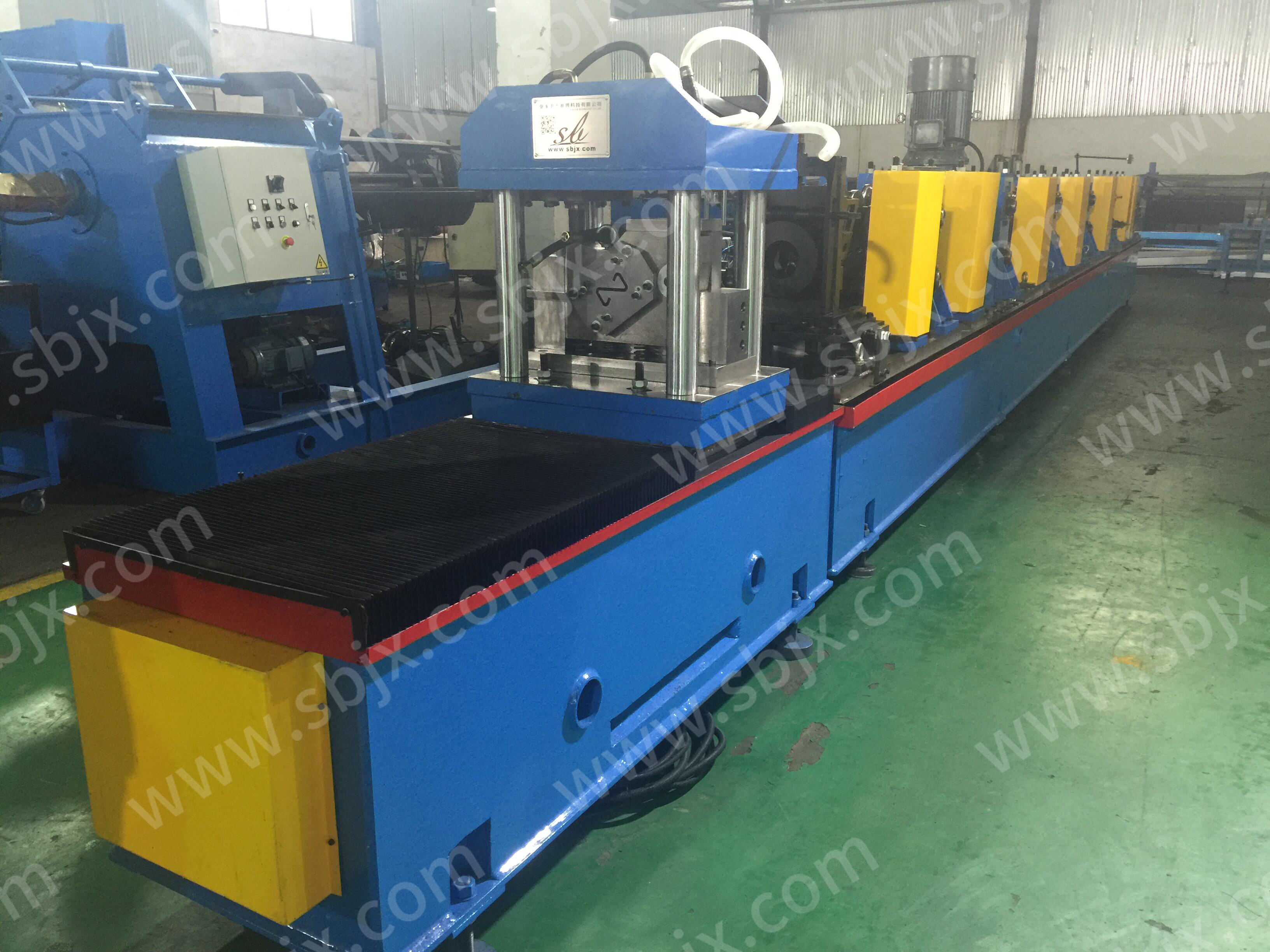

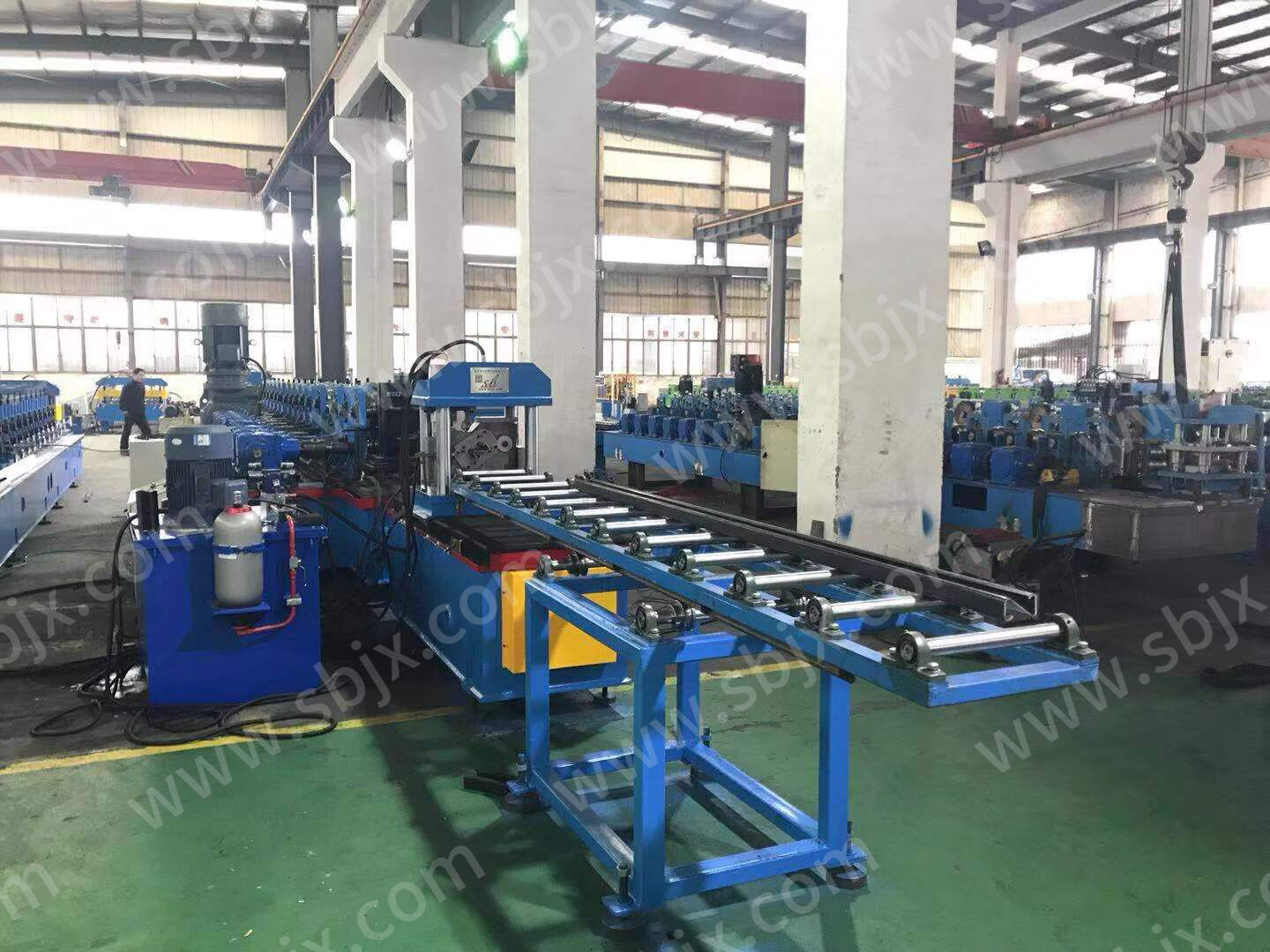

City road barrier is one of main component of Road crash barrier, the forming thickness can up to 4.5mm. Machine adopts servo feeding& punching and track cutting to make the fast speed, full line speed can reach to 6-7m/min. Whole line adopt famous motor and VFD brand. According to the customer request, machine also can make cassette design with post channel profiles to save the customer cost.
Main technology
Heavy duty uncoiler with coil car
Independent flatten system

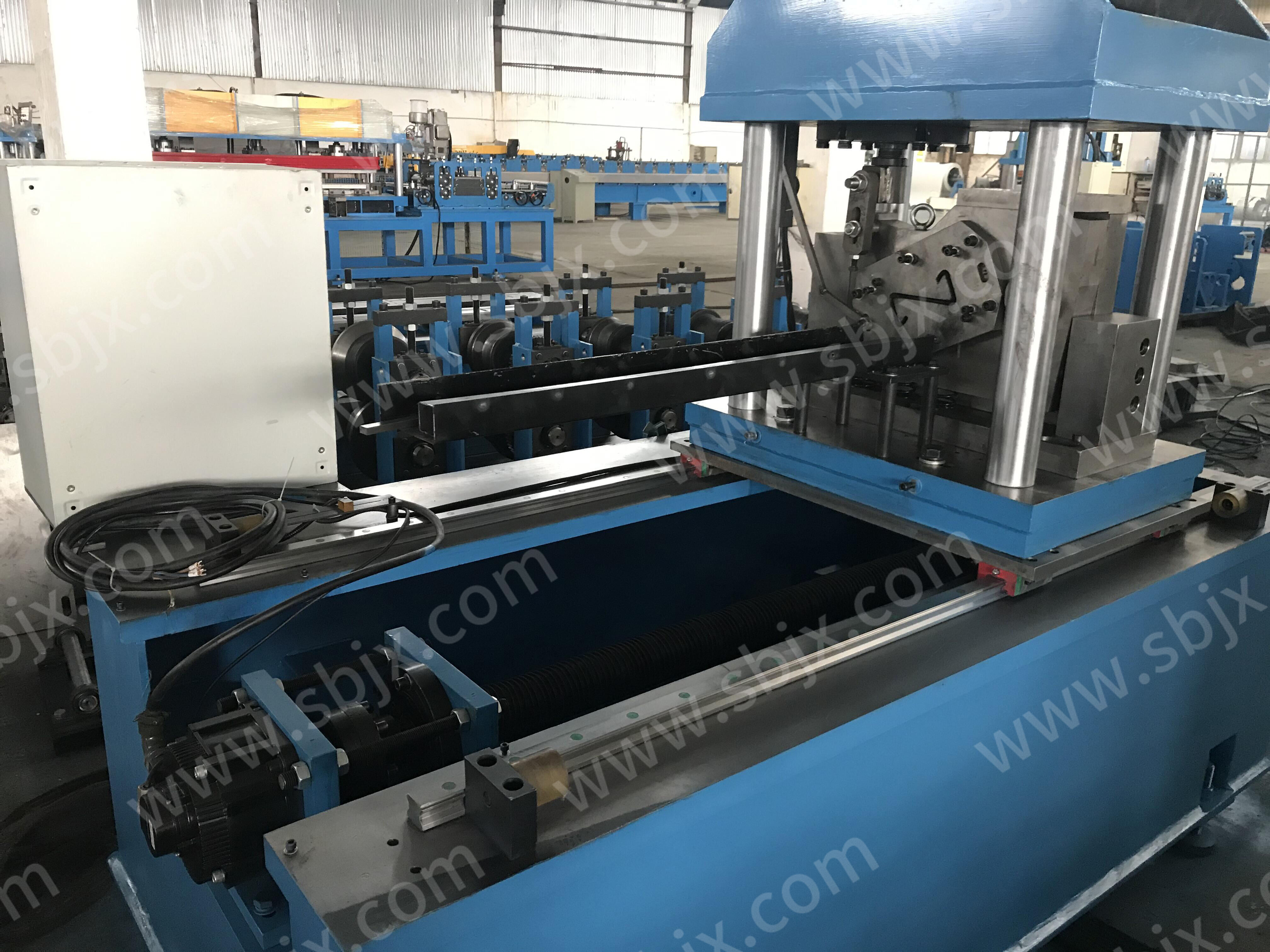

Serco feeding& punching to make holes and logos
By cassette design to make different profiles

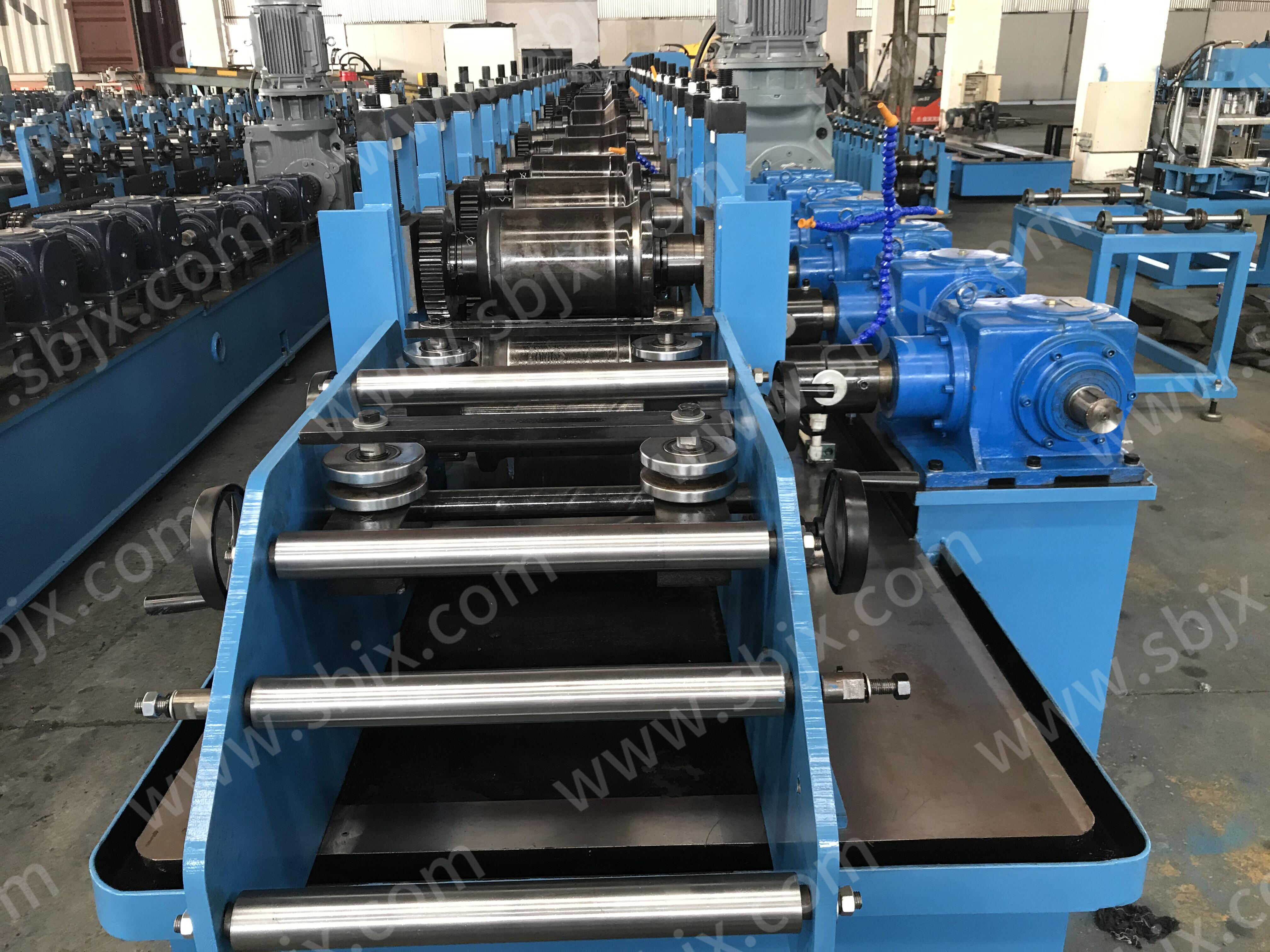

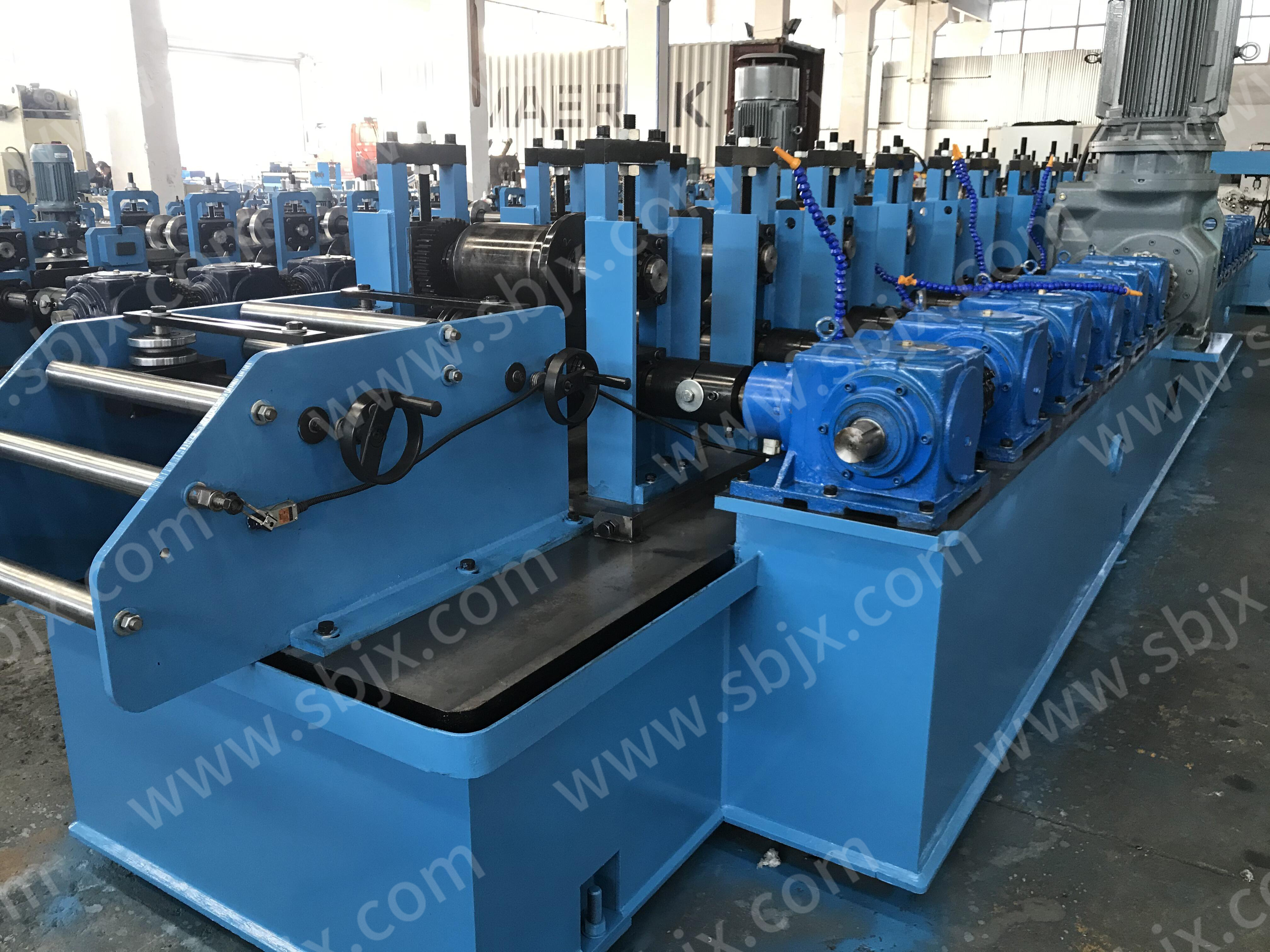

Gear box with coupling drive
Non-stop high speed cutting
Main spec. of line:
Full line power: about 90KW
Full line speed: 6-7m/min
Forming station: about 15 stations
Drive by gear box of each station
Full line weight: about25Tons
Roller material: D2
Punching die and cutting die material: D2
Motor: Siemens
Servo and control system: Siemens/ Mitsubishi
Full line uses motion controller (MC4N-ECAT P901) and a remote control system

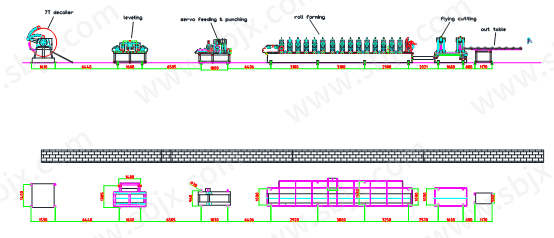

Layout for reference:
